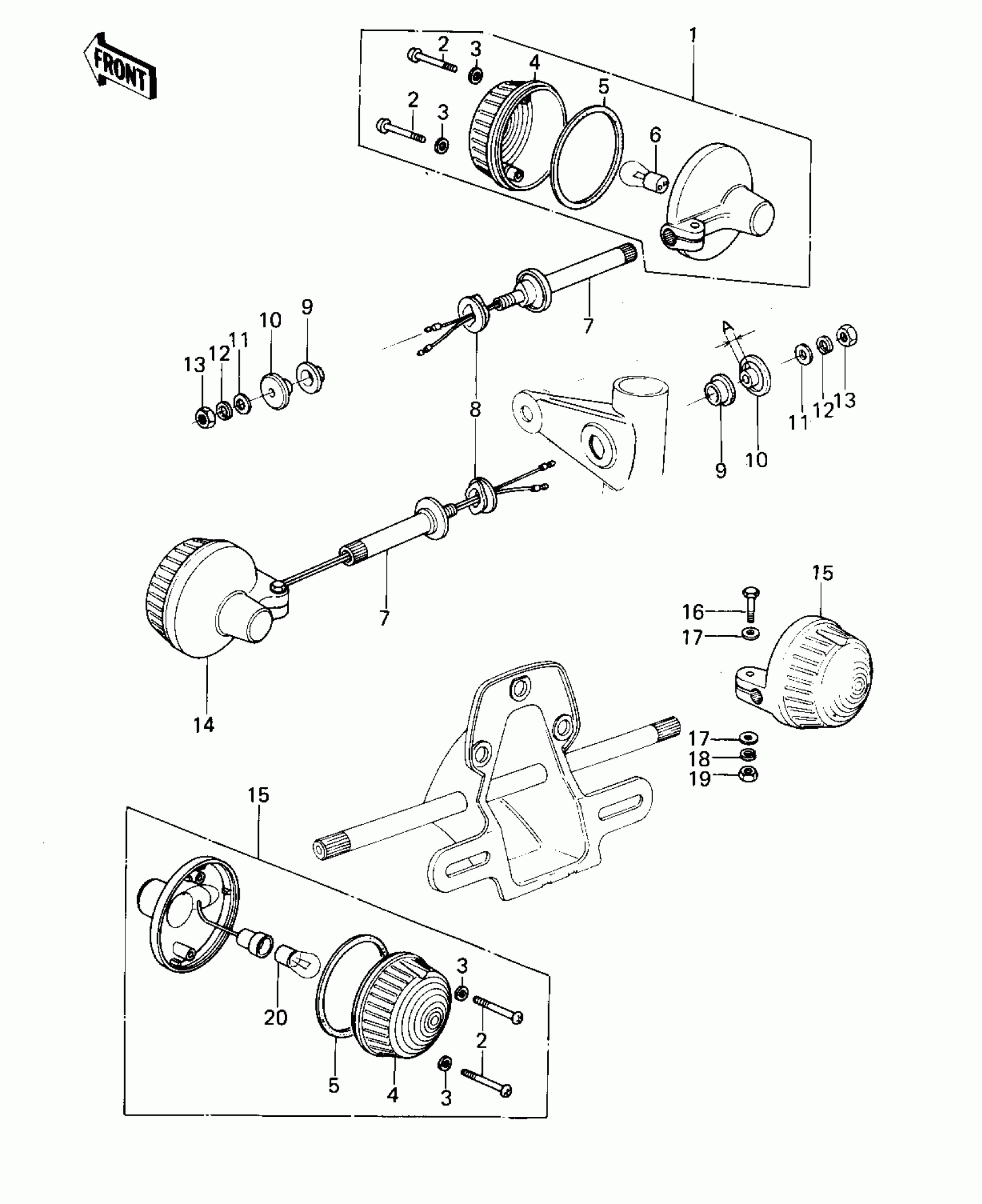

Kawasaki KZ400-B2 TURN SIGNALS Diagram
#
Description
Price
1
LAMP-SIGNAL,RH
23040-1005
Unavailable
2
SCREW-PAN HEAD,4X35
220E0435A
Unavailable
3
WASHER,PLAIN,4MM
23058-002
Unavailable
4
LENS-SIGNAL LAMP,"6.1445"MARK
23048-1024
Unavailable
5
GASKET,TURN SIGNAL LAMP
23050-002
Unavailable
6
BULB,12V 32/3CP(23/8W)
92069-060
Unavailable
7
BRACKET,TURN SIGNAL.L
23051-053
Unavailable
8
DAMPER,LAMP
92075-128
Unavailable
9
DAMPER RUBBER,SIG LM
92075-158
Unavailable
10
COLLAR
92027-147
Unavailable
10
COLLAR,SIGNAL LAMP
92027-1060
Unavailable
11
WASHER,10.5X20X1
92022-239
Unavailable
12
WASHER SPRING 10MM
461F1000
Unavailable
13
NUT-HEX-FINE,10MM
315B1000
Unavailable
14
LAMP-SIGNAL,LH
23040-1006
Unavailable
15
LAMP-TURN SIGNAL
23040-029
Unavailable
16
BOLT-UPSET
112G0630
Unavailable
17
WASHER PLAIN 6MM
411B0600
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
NUT 6MM
311B0600
Unavailable
20
BULB,12V 32CP(23W)
92069-055
Unavailable
