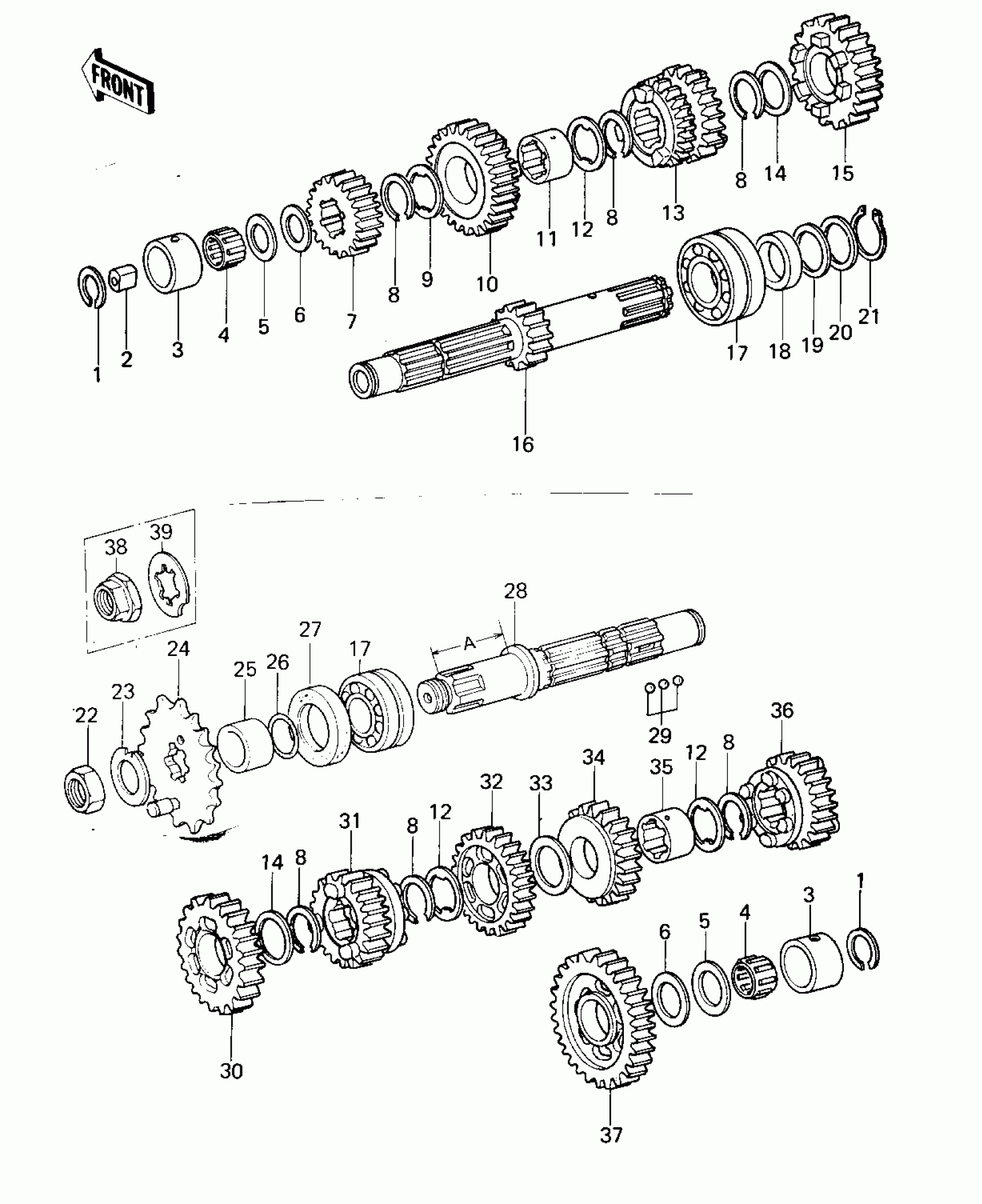

Kawasaki KZ400-B2 TRANSMISSION Diagram
#
1
RING-SNAP,20MM
92033-015
Unavailable
2
BUSHING,DRIVE SHAFT
92028-155
Unavailable
3
RACE,OUT & DRV SHAFT
92048-1001
Unavailable
4
BEARING-NEEDLE,20R2513P
92046-044
Unavailable
5
WASHER,20.5X30X0.5,STEEL
92022-144
Unavailable
6
WASHER,20.5X30X1,STEEL
92022-112
Unavailable
7
2ND GEAR,DRV SHAFT
13129-1062
Unavailable
8
RING-SNAP,24MM
92033-026
Unavailable
9
WASHER,TOOTHED,25.5X32X1
92024-033
Unavailable
10
TOP GEAR,DRV SHAFT
13129-1055
Unavailable
11
BUSHING,OUTPUT 3RD GR
92028-1002
Unavailable
12
WASHER,TOOTHED,22.5X31X0.5
92024-038
Unavailable
13
3RD-4TH GEAR,DRV SHFT
13129-1054
Unavailable
14
WASHER,25.3X30X0.5
92022-159
Unavailable
15
GEAR,INPUT5TH,23T
13129-1277
Unavailable
16
SHAFT,DRIVE,13T
13127-1004
Unavailable
17
BEARING,B,5205ANX4PX
92045-031
Unavailable
18
COLLAR
92027-289
Unavailable
19
WASHER,25.3X32X0.5
92022-225
Unavailable
20
WASHER,CLUTCH TRUST
92022-302
Unavailable
21
CIRCLIP-TYPE-C,24MM
480J2400
Unavailable
22
NUT,20MM
92016-028
Unavailable
23
WASHER,LOCK,20MM
92024-044
Unavailable
24
ENGINE SPROCKET
13144-1003
Unavailable
25
COLLAR,ENG SPROCKET
92027-288
Unavailable
26
RING-O
92055-035
Unavailable
27
SEAL-OIL,SC325210
92050-024
Unavailable
28
SHAFT,OUTPUT
13128-1004
Unavailable
28
SHAFT,OUTPUT
13128-1015
Unavailable
29
BALL-STEEL,5/32
600A0500
Unavailable
30
2ND GEAR,OUTPUT SHAFT
13129-1057
Unavailable
31
TOP GEAR,OUTPUT SHAFT
13129-1061
Unavailable
32
3RD GEAR,OUTPUT SHAFT
13129-1058
Unavailable
33
SPACER,30X38X1.0
92026-079
Unavailable
34
4TH GEAR,OUTPUT SHAFT
13129-1059
Unavailable
35
BUSHING,OUTPUT GEAR
92028-1268
Unavailable
36
5TH GEAR,OUTPUT SHAFT
13129-1060
Unavailable
37
LOW GEAR,OUTPUT SHAFT
13129-1056
Unavailable
38
NUT,20MM
92015-1254
Unavailable
39
WASHER,SPLINE
92022-1083
Unavailable
