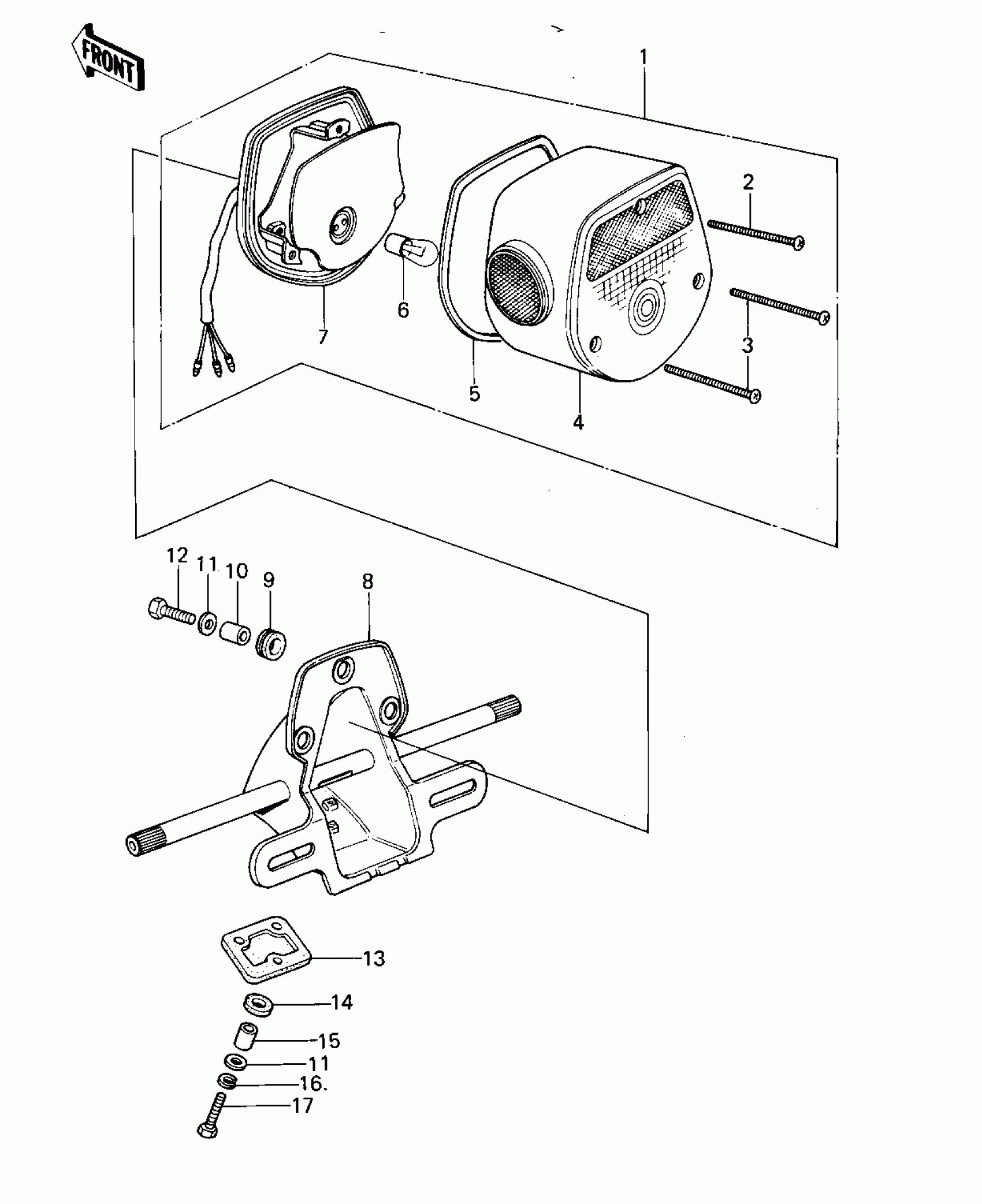

Kawasaki KZ400-B2 TAILLIGHT Diagram

#

Description

Price

1

LAMP-TAIL

23025-1031

Unavailable

2

SCREW

220R0455

Unavailable

3

SCREW PAN HEAD 4X50

220E0450

Unavailable

4

LENS,TAIL LAMP

23026-028

Unavailable

5

GASKET,TAIL LAMP LENS

23028-019

Unavailable

6

BULB,12V 27/8W

92069-059

Unavailable

7

BODY-COMP-TAIL LAMP

23027-1019

Unavailable

8

BRACKET,TAIL LAMP

23036-1002

Unavailable

9

DAMPER RUBBER

92075-076

Unavailable

10

COLLAR,6.8X10X8.5

92027-129

Unavailable

11

WASHER,6.5X20X1.6

92022-125

Unavailable

12

BOLT-UPSET,6X20

112G0620

Unavailable

13

DAMPER,TAIL LAMP

35039-004

Unavailable

14

DAMPER,FENDER

92075-121

Unavailable

15

COLLAR,6.8X10X14.5

92027-156

Unavailable

16

WASHER SPRING 6MM

461F0600

Unavailable

17

BOLT-UPSET

112G0625

Unavailable
