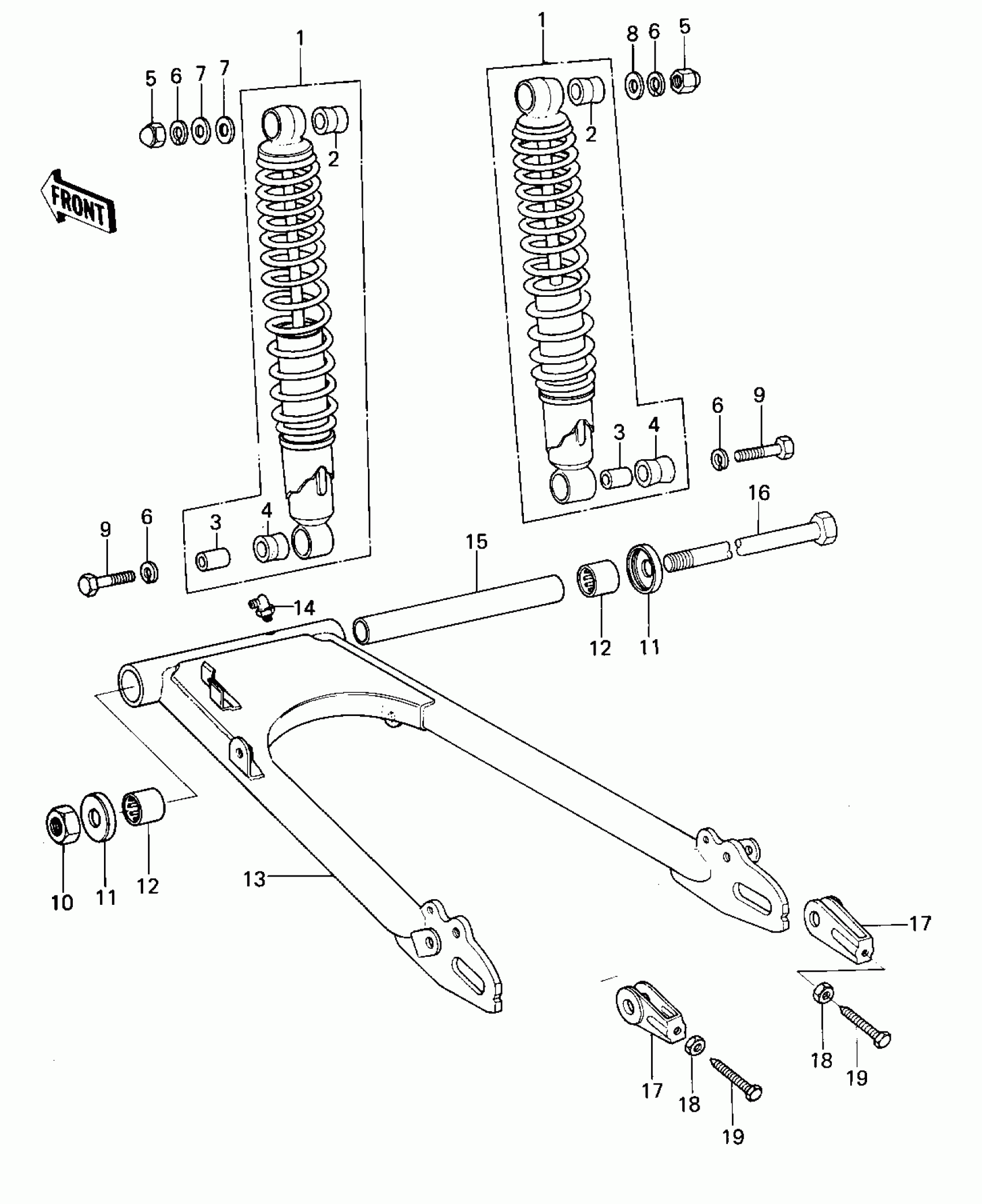

Kawasaki KZ400-B2 SWING ARM/SHOCK ABSORBERS Diagram

#

Description

Price

1

SHOCK ABSBR RR

45014-1003

Unavailable

2

DAMPER,SHOCKABSORBER

45017-015

Unavailable

3

COLLAR,SHOCKABSORBER

45016-008

Unavailable

4

DAMPER,SHOCKABSORBER

45017-012

Unavailable

5

NUT,CAP,10MM

92020-003

Unavailable

6

WASHER SPRING 10MM

461F1000

Unavailable

7

WASHER-PLAIN,10MM

411B1000

Unavailable

8

WASHER,10.5X22X4.5

92022-1022

Unavailable

9

BOLT HEX HEAD 10X35

113N1035

Unavailable

10

NUT-LOCK,14MM

92019-011

Unavailable

11

CAP,SWING ARM

11012-1029

Unavailable

12

BEARING-NEEDLE,HK2216

92046-1115

Unavailable

13

ARM-COMP-SWING

33001-1106

Unavailable

14

GREASE NIPPLE

92005-002

Unavailable

15

SLEEVE,SWING ARM

42036-1017

Unavailable

16

SHAFT-SWING ARM

33032-1002

Unavailable

17

ADJUSTER-CHAIN

33040-043

Unavailable

18

NUT 8MM

312B0800

Unavailable

19

BOLT,8X50

92001-1399

Unavailable
