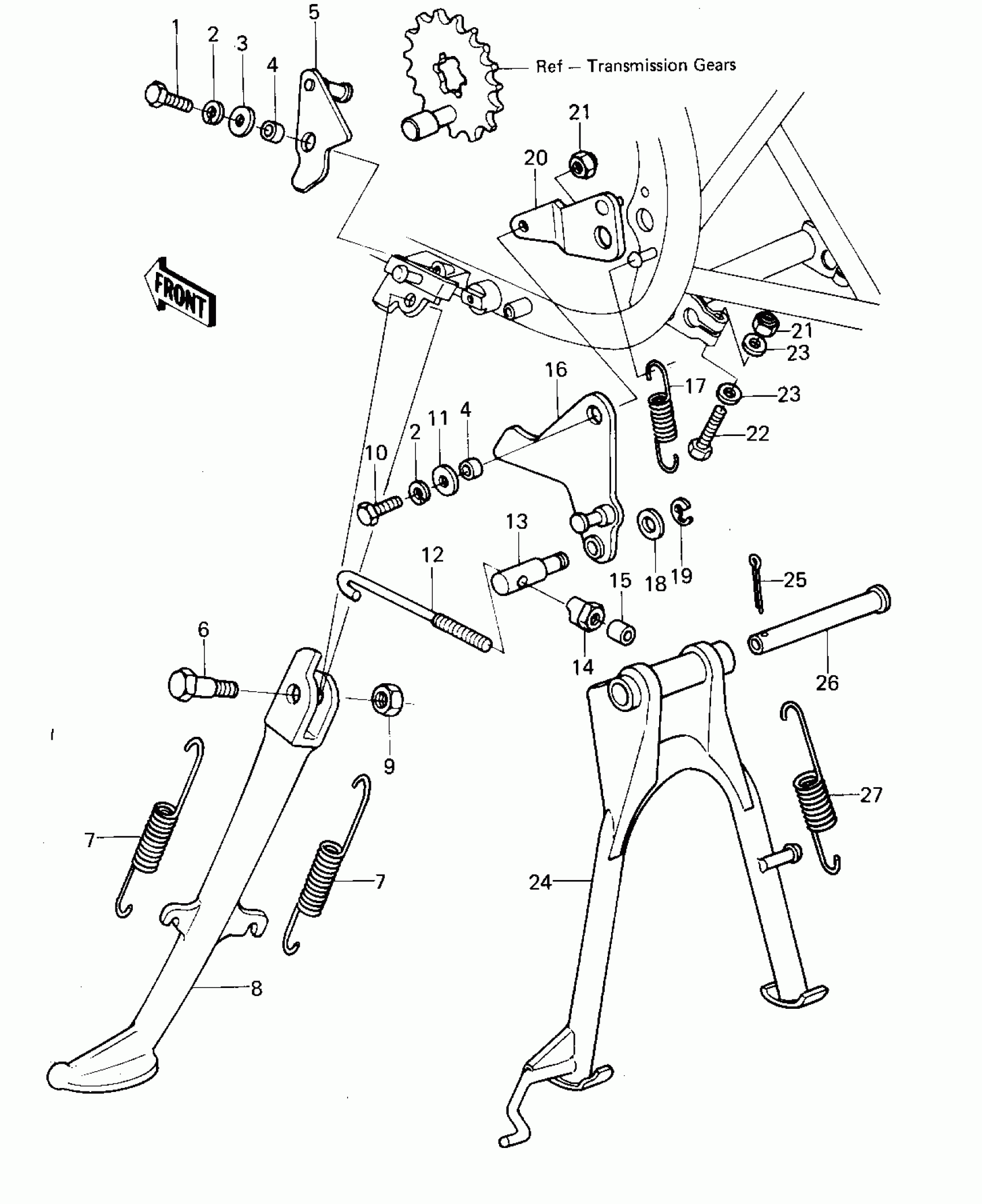

Kawasaki KZ400-B2 STANDS Diagram
#
Description
Price
1
BOLT-UPSET,6X16
112G0616
Unavailable
2
WASHER SPRING 6MM
461F0600
Unavailable
3
WASHER PLAIN 6MM
411B0600
Unavailable
4
COLLAR,6.3X10X4.8
92027-1066
Unavailable
5
LATCH,SIDE STAND
49031-1001
Unavailable
6
BOLT,SIDE STAND
92003-157
Unavailable
7
SPRING,SIDE STAND
92081-1020
Unavailable
8
STAND-SIDE
34024-1008
Unavailable
9
NUT-HEX-FINE,10MM
315B1000
Unavailable
9
NUT,20MM
92015-1555
Unavailable
10
BOLT-UPSET,6X20
112G0620
Unavailable
11
WASHER,6.5X20X1.6
92022-125
Unavailable
12
ROD,TIE,SIDE STAND
39111-1002
Unavailable
13
PIN,SIDE STAND
92043-1018
Unavailable
14
NUT,6M/M
92015-1028
Unavailable
15
TUBE,4.5X9X7
92059-1012
Unavailable
16
LEVER,SIDE STAND
13168-1005
Unavailable
17
SPRING
92081-1023
Unavailable
18
WASHER PLAIN 8MM
410B0800
Unavailable
19
CIRCLIP-TYPE-E,6MM
482K6000
Unavailable
20
BRACKET,SIDE STAND
11034-1151
Unavailable
21
NUT,LOCK,6MM
92019-008
Unavailable
22
BOLT 6X35
110R0635
Unavailable
23
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
24
STAND-MAIN
34011-1002
Unavailable
25
PIN-COTTER,3.0X30
550D3030
Unavailable
26
SHAFT-STAND,CNT
34019-015
Unavailable
27
SPRING,MAIN STAND
92081-1032
Unavailable
