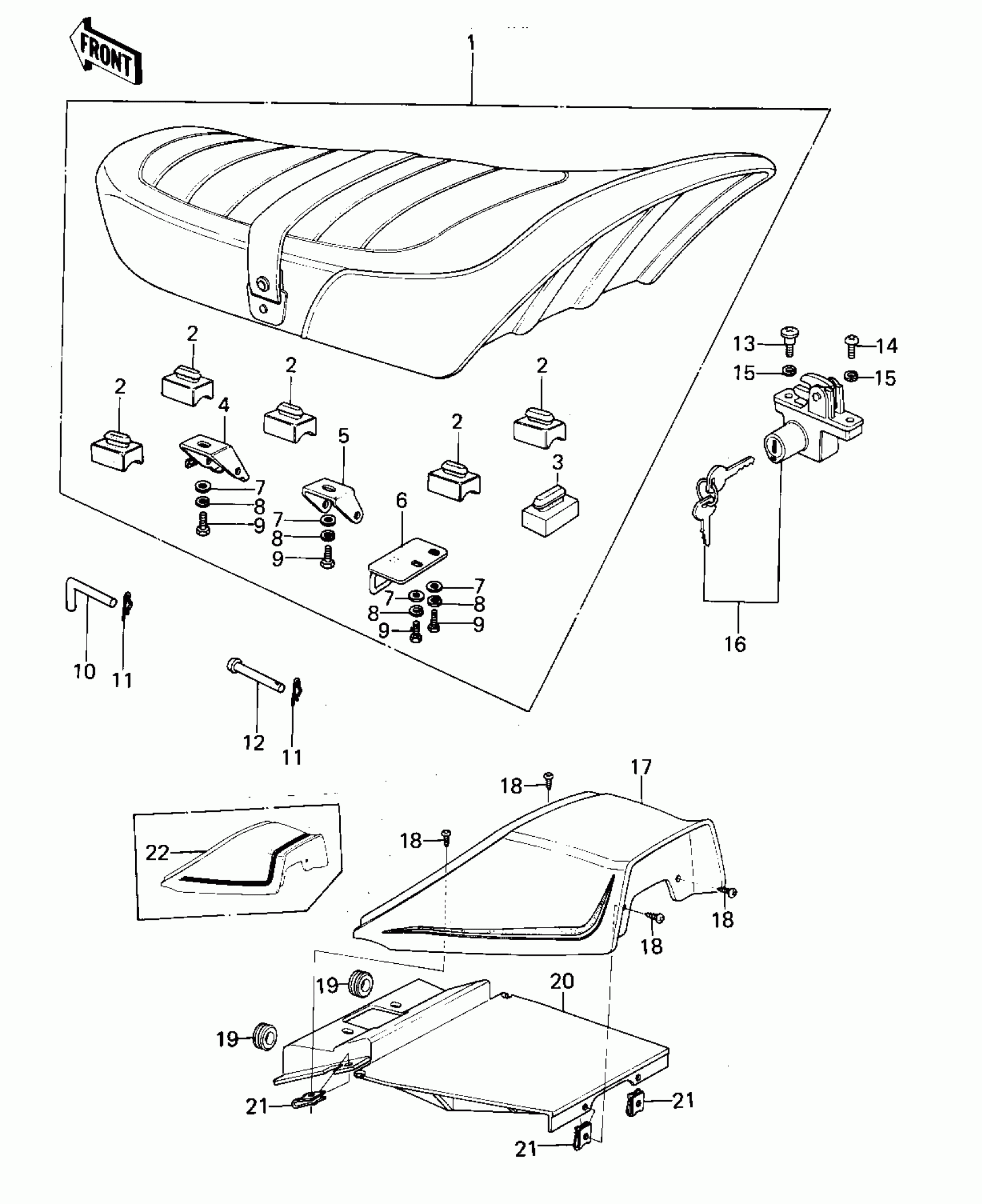

Kawasaki KZ400-B2 SEAT/SEAT COVER Diagram

#

Description

Price

1

SEAT-ASSY,DUAL

53001-1032

Unavailable

1

SEAT-ASSY,DUAL

53001-1032

Unavailable

2

DAMPER RUBBER-SEAT

92075-156

Unavailable

3

DAMPER

92075-099

Unavailable

4

HINGE,SEAT

53009-1007

Unavailable

5

HINGE, REAR

53009-026

Unavailable

6

HOOK,SEAT

53008-024

Unavailable

7

WASHER PLAIN 6MM

411B0600

Unavailable

8

WASHER SPRING 6MM

461F0600

Unavailable

9

BOLT-UPSET 6X14

112B0614

Unavailable

10

PIN,SEAT PIVOT

92043-1064

Unavailable

11

COTTER PIN

92041-003

Unavailable

12

PIN, DUAL SEAT PIVOT

53011-006

Unavailable

13

BOLT,HELMET HOOK,6MM

92001-1021

Unavailable

14

SCREW-PAN-CROS,6X14

220B0614

Unavailable

15

WASHER SPRING 6MM

461F0600

Unavailable

16

LOCK-ASSY,SEAT&HELMET

27016-5028

Unavailable

17

COVER,SEAT,C.E.GREEN

14025-1008-4U

Unavailable

17

COVER,SEAT,C.P.RED

14025-1008-A5

Unavailable

18

SCREW,TAPPING,4X14

92008-010

Unavailable

19

DAMPER

92075-1057

Unavailable

20

PLATE,SEAT COVER

13169-1026

Unavailable

21

NUT,SEAT COVER

92018-006

Unavailable

22

COVER,SEAT,L.RED

14025-1008-7V

Unavailable

22

COVER,SEAT,C.O.BLUE

14025-1008-4X

Unavailable
