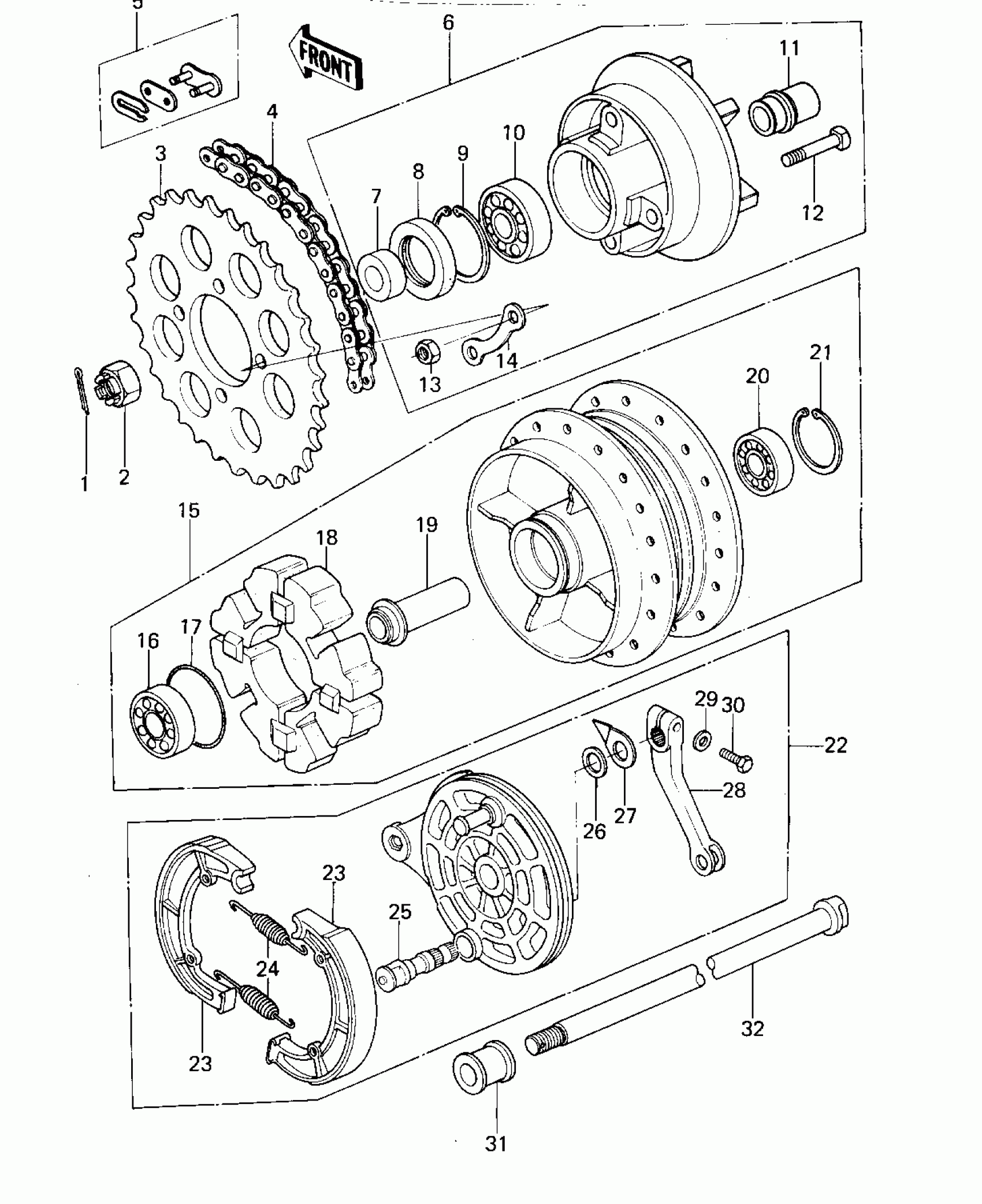

Kawasaki KZ400-B2 REAR HUB/BRAKE/CHAIN Diagram
#
1
PIN-COTTER,4.0X35
550D4035
Unavailable
2
NUT,CASTLE,16MM
42045-014
Unavailable
3
WASHER PLAIN 16MM
410B1600
Unavailable
4
GEAR BOX ASSY
41078-1004
Unavailable
5
GEAR,SPEEDOMETER
41060-1010
Unavailable
6
SEAL-OIL,BJN30427-C3
92049-1057
Unavailable
7
RECEIVER,GEAR
41064-013
Unavailable
8
PIN,SPRING
41082-001
Unavailable
9
WASHER,5.1X9X0.4
41063-001
Unavailable
10
PINION,SPEEDOMETER
41060-017
Unavailable
11
BUSHING,SPEEDOMETER CABLE
41062-005
Unavailable
12
DRUM-ASSY,FR BRK
41034-1003
Unavailable
13
BEARING-BALL,#6203C3
601B6203
Unavailable
14
COLLAR,BRG
41039-028
Unavailable
15
RING-SNAP,40MM
92033-1040
Unavailable
16
OIL SEAL
654A254008
Unavailable
17
DUST COVER
41042-016
Unavailable
18
WASHER-PLAIN,5MM
411B0500
Unavailable
19
SCREW-PAN-CROS
220B0512
Unavailable
20
BOLT
92001-158
Unavailable
21
WASHER,LOCK
92088-023
Unavailable
22
COVER,DUST
49016-1001
Unavailable
23
COLLAR,FRONT AXLE
92027-1008
Unavailable
24
AXLE,FRONT
41068-1002
Unavailable
25
COVER,DUST,HUB
49016-1021
Unavailable
26
COVER,DUST,HUB
49016-1022
Unavailable
1
PIN-COTTER,4.0X35
550D4035
Unavailable
2
NUT,16MM
92015-055
Unavailable
3
REAR SPROCKET,45T
42041-145
Unavailable
4
DR CHAIN 530X100
92057-092
Unavailable
5
CHAIN JOINT 530
92058-008
Unavailable
6
COUPLING ASSY,REAR
42033-1002
Unavailable
7
COLLAR,COUPLING,L.H.
92027-1014
Unavailable
8
SEAL-OIL,TWC35527
92052-006
Unavailable
9
RING-SNAP,52MM
92033-1043
Unavailable
10
BEARING-BALL,#6205C3
601B6205
Unavailable
11
SLEEVE,RR HUB COUPLING
42036-1002
Unavailable
12
BOLT,HUB SPROCKET,10X55
92003-156
Unavailable
13
NUT-HEX-FINE,10MM
314B1000
Unavailable
14
WASHER,SPROCKET LOCK
92088-005
Unavailable
15
DRUM-ASSY,RR BRK
41034-1005
Unavailable
16
BEARING-BALL,#6303C3
601B6303
Unavailable
17
O RING,60MM
671B2560
Unavailable
18
DAMPER,SHOCK,RR HUB
92075-1008
Unavailable
19
COLLAR,REAR HUB BRG.
92027-1013
Unavailable
20
BEARING-BALL
601B6303U
Unavailable
21
RING-SNAP,47MM
92033-1042
Unavailable
22
PANEL-ASSY-BRAKE,RR
41035-1089
Unavailable
23
SHOE-BRAKE
41048-1069
Unavailable
24
SPRING,BRAKE SHOE
42020-004
Unavailable
25
CAM-BRAKE
41050-1001
Unavailable
26
SEAL,BRAKE CAM
41051-003
Unavailable
27
INDICATOR,BRAKE SHOE
41085-004
Unavailable
28
LEVER-BRAKE CAM
41053-1001
Unavailable
29
WASHER PLAIN 8MM
410B0800
Unavailable
30
BOLT HEX HEAD 8X28
114G0828
Unavailable
31
COLLAR,REAR AXLE,R.H.
92027-1015
Unavailable
32
AXLE,REAR
41068-1004
Unavailable
