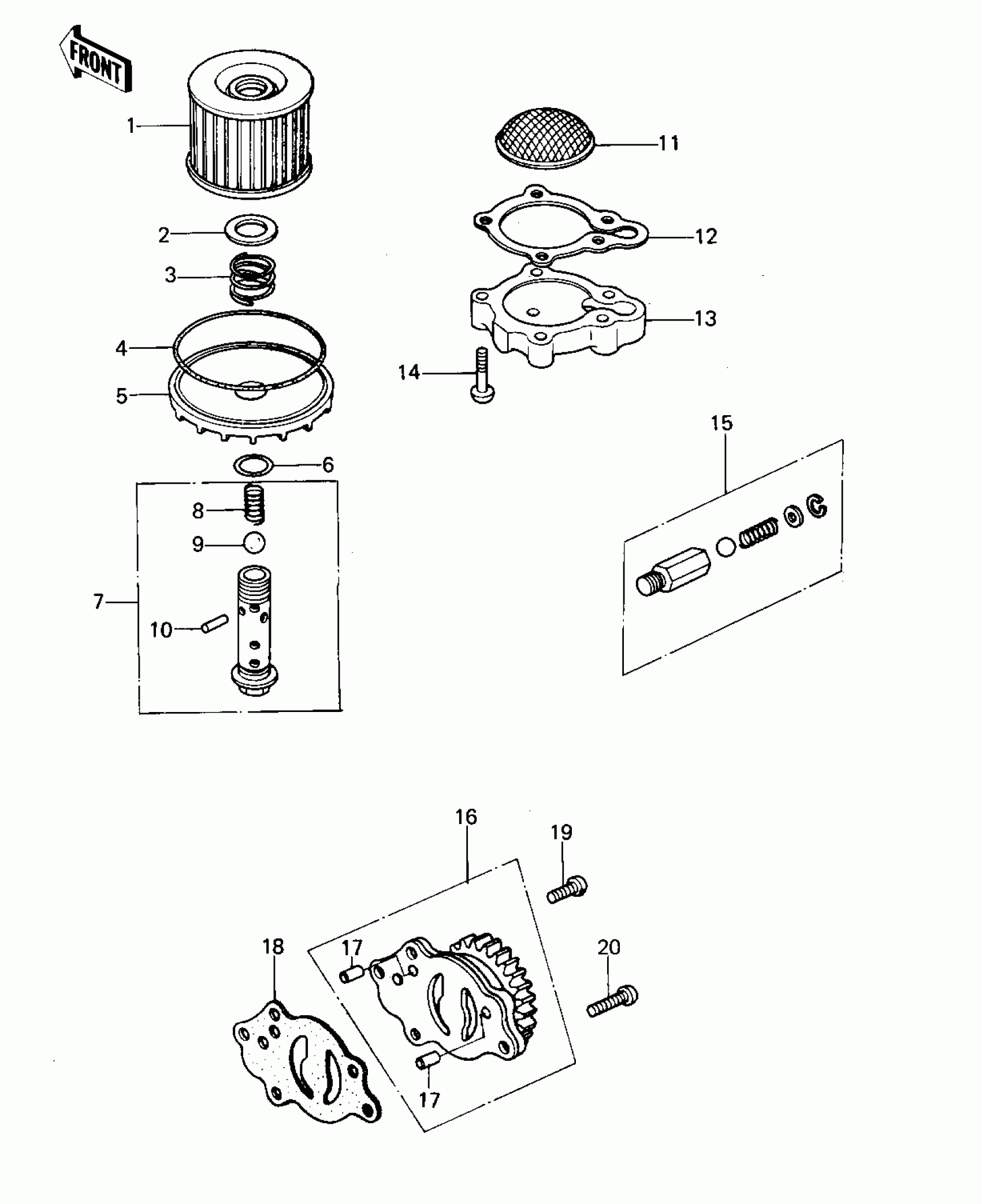

Kawasaki KZ400-B2 OIL PUMP/OIL FILTER Diagram

#

Description

Price

1

ELEMENT-OIL FILTER

16099-003

Unavailable

2

WASHER,20.5X30X1

92022-1012

Unavailable

3

SPRING,OIL FILTER

92081-1018

Unavailable

4

O RING,90MM

671B2590

Unavailable

5

COVER,OIL FILTER

16101-004

Unavailable

6

O RING,16MM

670B2016

Unavailable

7

VALVE,OIL FILTER

16126-1108

Unavailable

8

SPRING

92081-109

Unavailable

9

BALL-STEEL,3/8"

600A1200

Unavailable

10

PIN,SPRING,2X20

92043-111

Unavailable

11

FILTER,OIL

16111-003

Unavailable

12

GASKET,OIL FILTER COVER

11009-1874

Unavailable

13

COVER,OIL STRAINER

16101-003

Unavailable

14

SCREW PAN HEAD 6X30

220B0630

Unavailable

15

VALVE-ASSY-RELIEF

16130-1001

Unavailable

16

OIL PUMP ASSY

16082-1001

Unavailable

17

PIN-DOWEL,6X12

551A0612

Unavailable

18

GASKET,OIL PUMP

11009-1014

Unavailable

19

SCREW PAN HEAD 6X10

220B0610

Unavailable

20

SCREW PAN HEAD 6X25

220B0625

Unavailable
