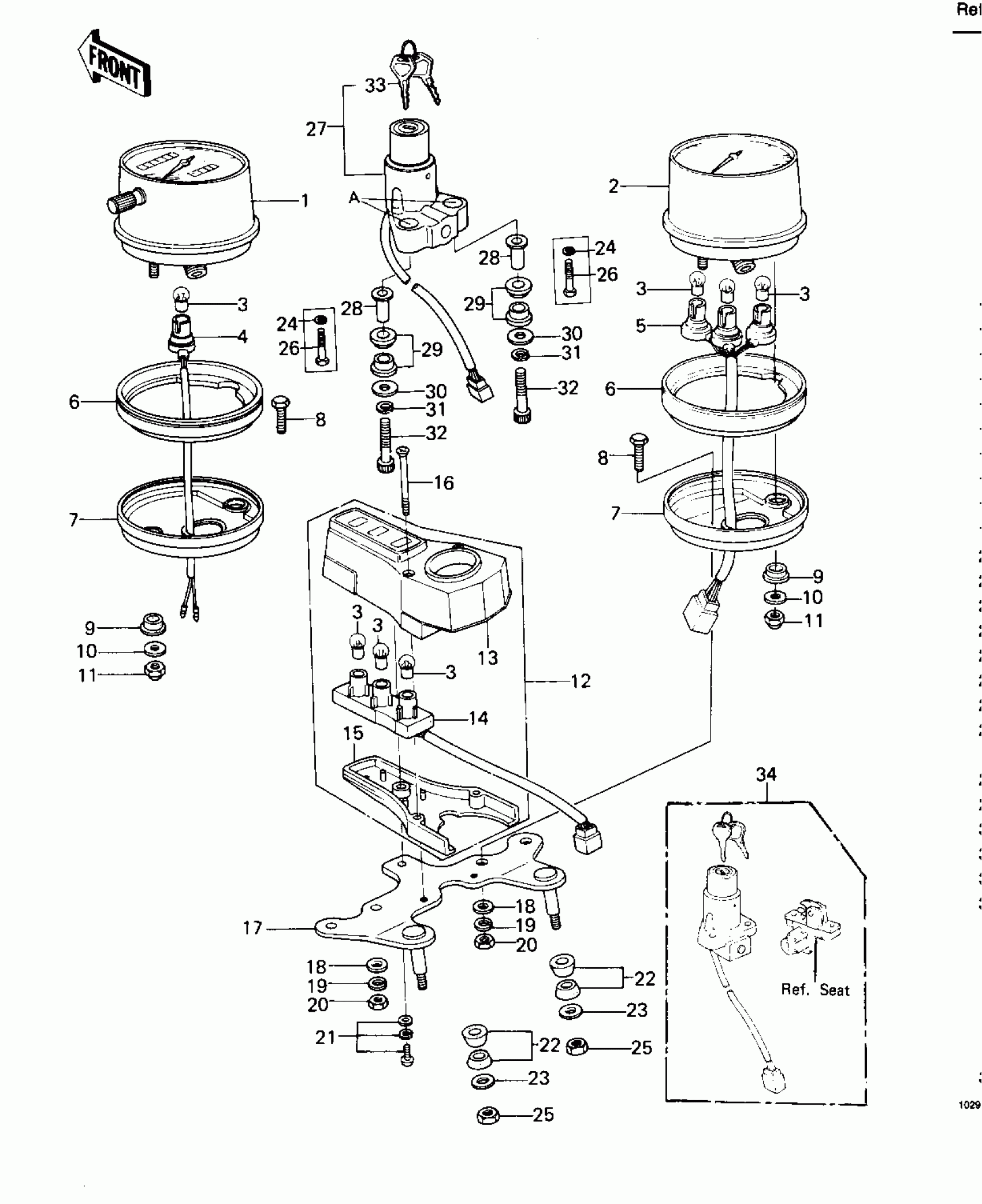

Kawasaki KZ400-B2 METERS/IGNITION SWITCH (KZ400-B1) Diagram
#
1
SPEEDOMETER ASSY,MPH
25006-061
Unavailable
1
SPEEDOMETER,ASSY,KPH (Canada)
25005-1020
Unavailable
2
TACHOMETER ASSY
25015-1007
Unavailable
3
BULB 12V 3W
92069-018
Unavailable
4
SOCKET,SPEEDOMETER
23008-1006
Unavailable
5
SOCKET,TACHOMETER
23008-1004
Unavailable
6
SHOCK DAMPER,SPEEDMET
25019-031
Unavailable
7
COVER,METER
25012-025
Unavailable
8
BOLT,HEX HEAD,6X14
92003-204
Unavailable
9
DAMPER,METER
25019-013
Unavailable
10
WASHER-PLAIN,5MM
411B0500
Unavailable
11
NUT,5MM
92015-059
Unavailable
12
LAMP ASSY,PILOT
23016-1012
Unavailable
13
COVER,PILOT LAMP
25023-1005
Unavailable
14
SOCKET,PILOT LAMP
23008-1023
Unavailable
15
COVER,METER BRACKET
25024-008
Unavailable
16
SCREW,PAN HEAD
92012-005
Unavailable
17
BRACKET,METER
25008-051
Unavailable
18
WASHER PLAIN 6MM
411B0600
Unavailable
19
WASHER SPRING 6MM
461F0600
Unavailable
20
NUT 6MM
311B0600
Unavailable
21
SCREW,PAN WSP 4X12
92009-1015
Unavailable
22
DAMPER RUBBER,METER
92075-248
Unavailable
23
WASHER,6.5X22X1.6
92022-237
Unavailable
24
WASHER SPRING 6MM
461F0600
Unavailable
25
NUT 6MM
311B0600
Unavailable
26
BOLT-UPSET,6X16
112G0616
Unavailable
27
SWITCH ASSY,IGNITION
27005-1031
Unavailable
27
SWITCH ASSY,IGNITION
27005-1033
Unavailable
28
COLLAR,IG SWITCH
92027-1135
Unavailable
29
DAMPER,IG SWITCH
92075-1119
Unavailable
30
WASHER,8.5X20X1.6
92022-1561
Unavailable
31
WASHER SPRING 8MM
461F0800
Unavailable
32
BOLT,ALLEN,8X45
120P0845
Unavailable
33
UNAVAILABLE IN PRICE BOOK
27008-1008-01
Unavailable
33
UNAVAILABLE IN PRICE BOOK
27008-1008-35
Unavailable
33
KEY,BLANK
27008-1028
Unavailable
33
KEY,BLANK
27008-1029
Unavailable
33
KEY-LOCK,BLANK,#A
27008-1034
Unavailable
33
KEY-LOCK,BLANK,#B
27008-1035
Unavailable
34
LOCK SET,KZ400B2
27004-5048
Unavailable
