1979 Kawasaki KZ400-B2 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1979 Kawasaki KZ400-B2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

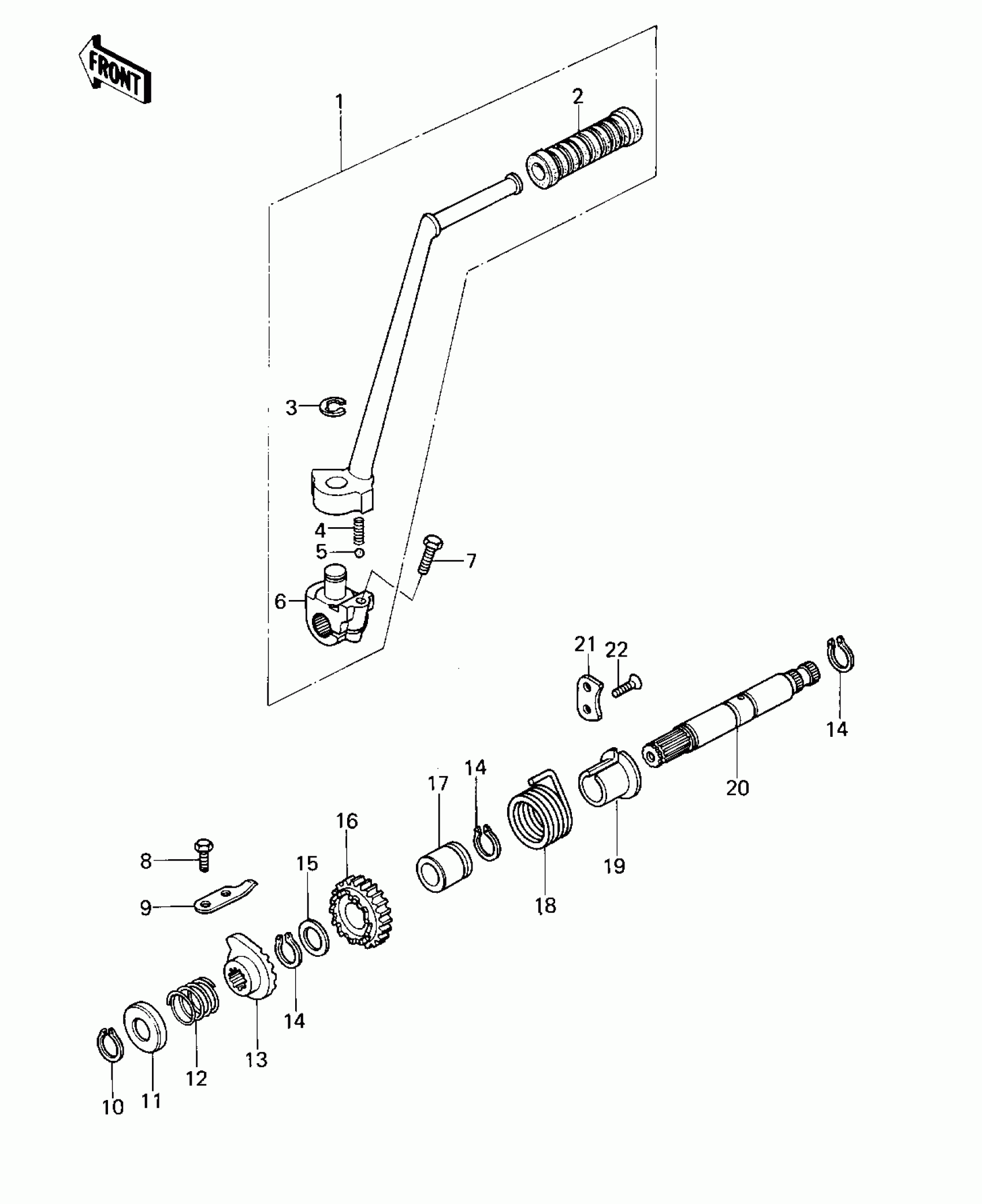

1979 Kawasaki KZ400-B2 Kickstarter Mechanism Diagram

#

Description
Price
Status
Order Qty

1

PEDAL ASSY,KICK

13064-1002

Out of stock

2

DAMPER,KICK PEDAL

13063-004

Out of stock

3

CIRCLIP-TYPE-E,9MM

482K9000

Out of stock

4

SPRING,KICK PEDAL

92081-020

Out of stock

5

BALL-STEEL,1/4

600A0800

Out of stock

6

BOSS,KICK PEDAL

13061-1001

Out of stock

7

BOLT,FLANGED,8X35

92001-1577

Out of stock

8

BOLT-UPSET,6X20

112G0620

Out of stock

9

STOPPER,KICKSTARTER

13072-012

Out of stock

10

CIRCLIP-TYPE-C,19MM

480J1900

Out of stock

11

CAP,KICKSTARTER

92102-008

Out of stock

12

SPRING RATCHET

92081-104

Out of stock

13

RATCHET,KICK SHAFT

13078-011

Out of stock

14

CIRCLIP-TYPE-C,20MM

480J2000

Out of stock

15

WASHER,20.5X30X1,STEEL

92022-112

Out of stock

16

GEAR,KICK,20T

59051-1007

Out of stock

17

BUSHING,KICK SHAFT

92028-175

Out of stock

18

SPRING,KICK RETURN

92082-006

Out of stock

19

GUIDE,KICK SPRING

13070-009

Out of stock

20

SHAFT,KICK

13066-1001

Out of stock

21

PLATE-DRUM LEV POSTON

13169-007

Out of stock

22

SCREW-CSK-CROS,6X16

221B0616

Out of stock
