1979 Kawasaki KZ400-B2 Cylinder Head Covers Diagram

← All diagrams

Find the part on the Cylinder Head Covers diagram for your 1979 Kawasaki KZ400-B2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

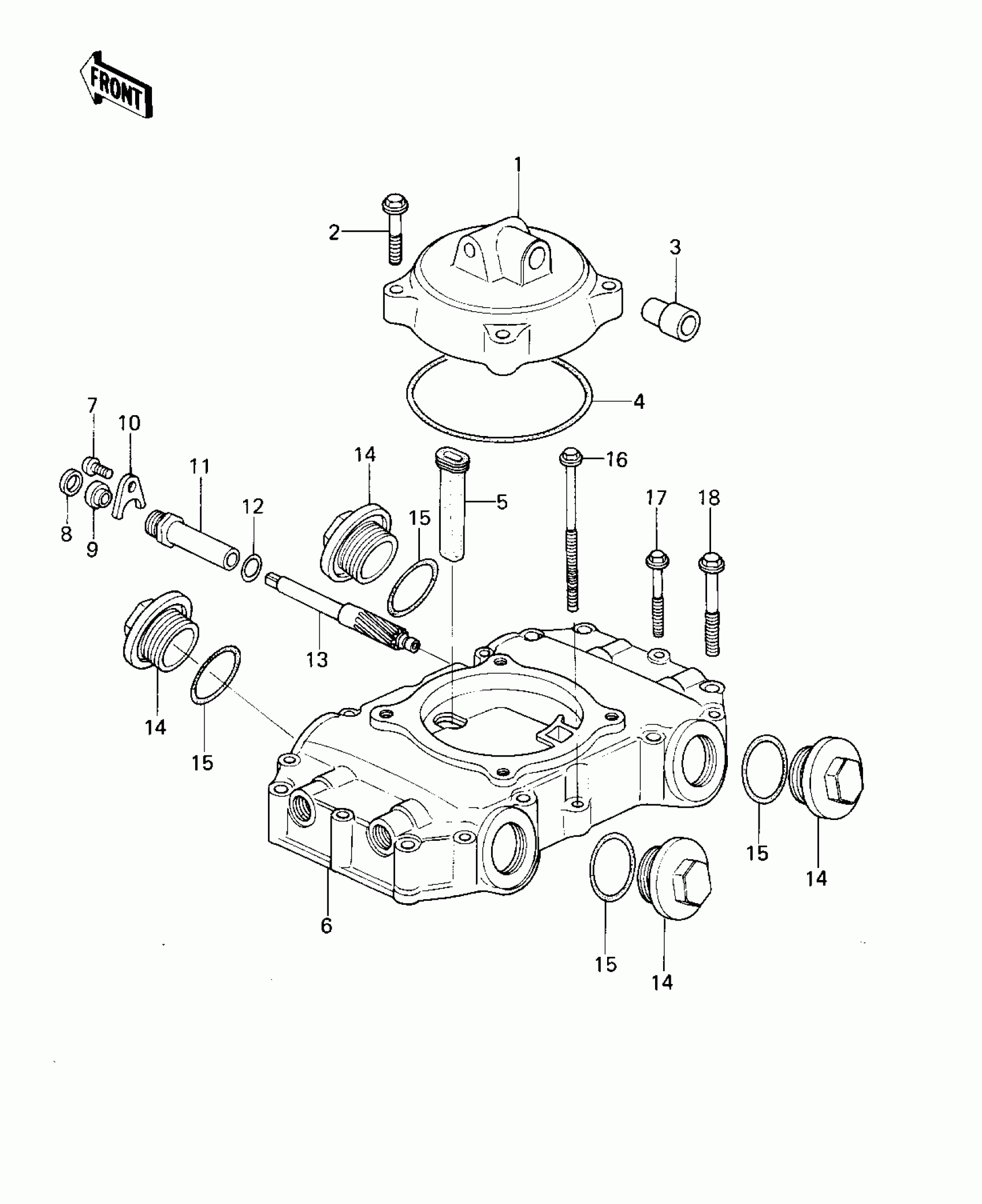

1979 Kawasaki KZ400-B2 Cylinder Head Covers Diagram

#

Description
Price
Status
Order Qty

1

BODY,BREATHER

14070-1004

$122.61

In stock

2

BOLT,HEX HEAD,8X40

92002-1214

Out of stock

3

FITTING,BREATHER

14067-006

$19.78

In stock

4

RING-O,104.4X3.1

92055-1020

$13.51

In stock

5

TUBE,BREATHER

92059-1002

Out of stock

6

CASE ROCKER

11022-1001

Out of stock

7

SCREW PAN HEAD 6X10

220B0610

Out of stock

8

$3.24

In stock

9

SEAL-OIL

92050-075

Out of stock

10

CLAMP,METER GEAR

92037-1030

Out of stock

11

BUSHING-METER GEAR

92087-1001

Out of stock

12

RING-O,13X1.9

92055-1021

$6.06

In stock

12

RING-O,13X1.9

92055-1021

$6.06

In stock

13

GEAR,METER SCREW

41060-1013

Out of stock

14

PLUG,36X7.5

92066-1006

$15.61

In stock

15

RING-O,36MM

92055-1005

$4.88

In stock

16

BOLT,6X105

92003-194

Out of stock

17

BOLT,HEX HEAD,6X54

92003-110

Out of stock

18

BOLT,8X63

92002-1215

$8.54

In stock
