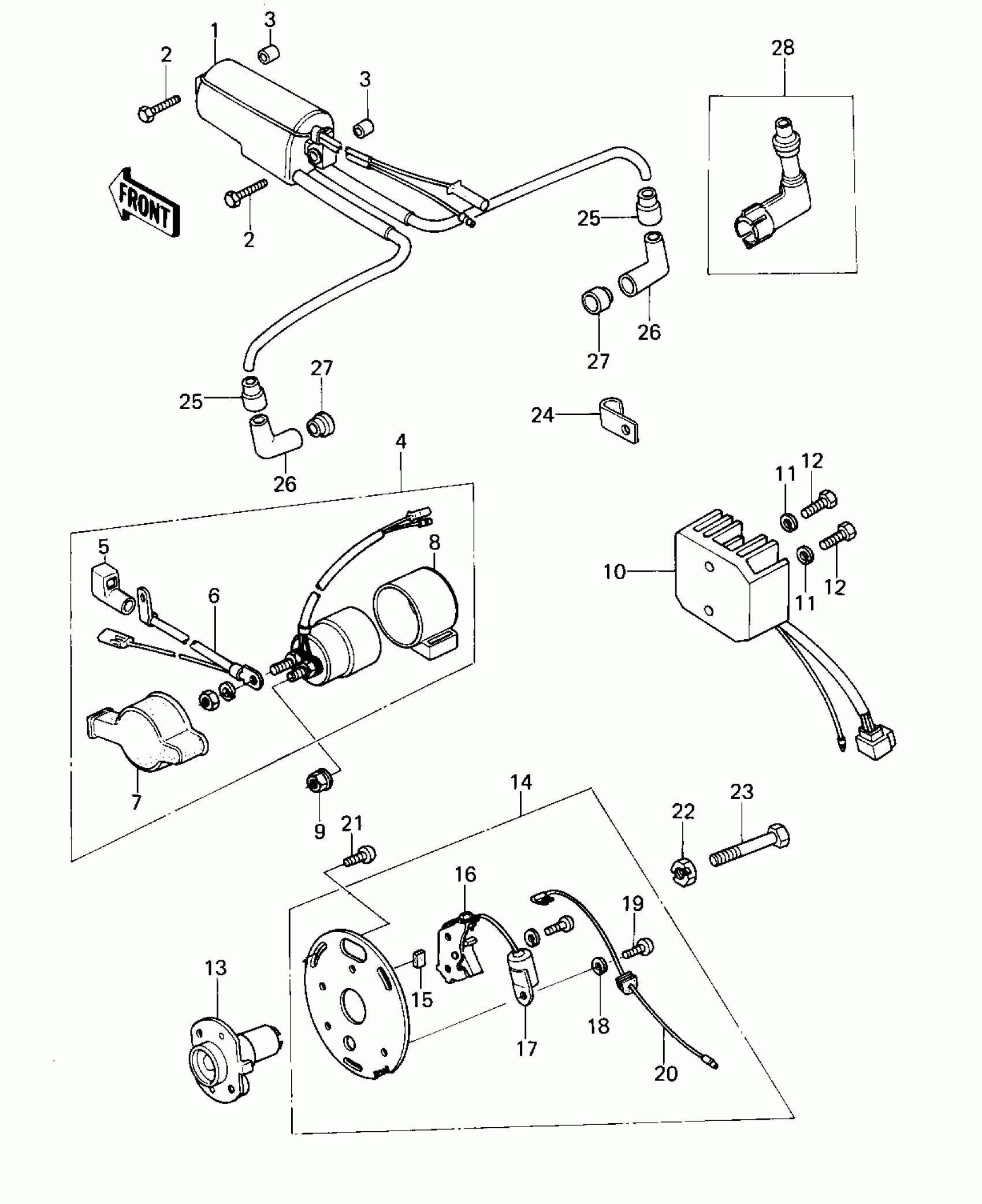

Kawasaki KZ400-B2 IGNITION/REGULATOR Diagram
#
Description
Price
1
COIL-IGNITION
21121-1174
Unavailable
2
BOLT, IGNITION COIL
92003-170
Unavailable
3
COLLAR,IGNITION COIL
92027-276
Unavailable
4
SWITCH MAGNETIC
27010-1014
Unavailable
5
CAP,MAG SWTCH TERMNL
21017-021
Unavailable
6
WIRE,LEAD,MAG SWITCH
26011-1027
Unavailable
7
CAP,MAGNETIC SWITCH
21141-004
Unavailable
8
DAMPER,MAGNETIC SWITCH
21064-002
Unavailable
9
NUT,LOCK 6MM
92017-014
Unavailable
10
REGULATOR
21066-029
Unavailable
11
WASHER SPRING 6MM
461F0600
Unavailable
12
BOLT-UPSET,6X16
112G0616
Unavailable
13
GOVERNOR,BREAKER
21148-1002
Unavailable
14
BREAKER ASSY,CONTACT
21008-1014
Unavailable
15
BRUSH,OIL
21019-005
Unavailable
16
BREAKER,CONTACT
21008-027
Unavailable
17
CONDENSER
21013-1004
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
SCREW PAN HEAD 4X6
220B0406
Unavailable
20
WIRE,LEAD,BREAKER
26011-1030
Unavailable
21
SCREW-PAN-CROS
220B0512
Unavailable
22
WASHER,BREAKER GOVERNOR
92022-244
Unavailable
23
BOLT,8X63
92001-1397
Unavailable
24
CLAMP,WIRING HARNESS
21126-008
Unavailable
25
GROMMET,HIGH TENSION
21132-005
Unavailable
26
CAP-SPARK PLUG,RTFM20
21130-1007
Unavailable
27
GROMMET,PLUG CAP
21131-004
Unavailable
28
CAP-ASSY-PLUG
21160-005
Unavailable
