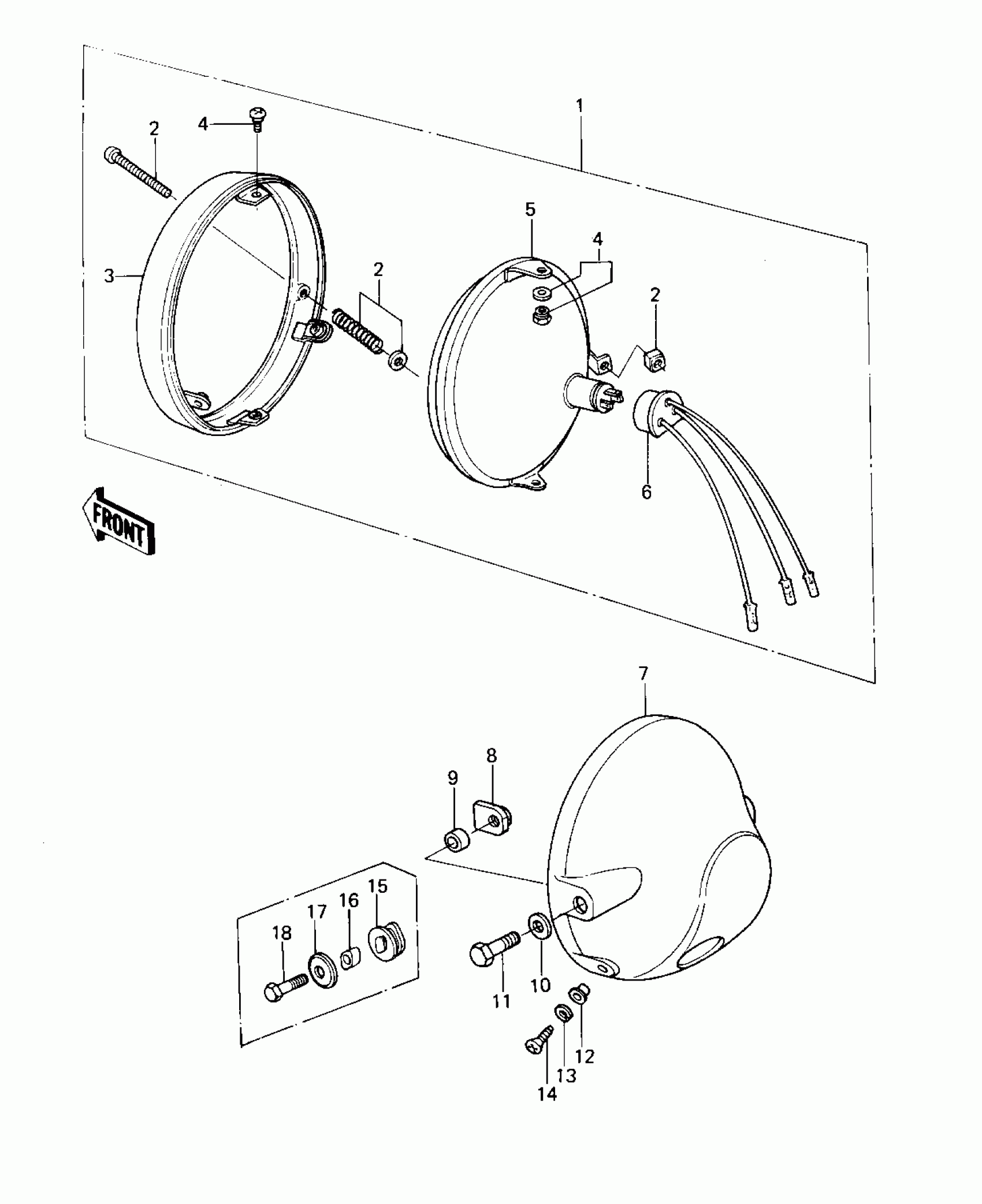

Kawasaki KZ400-B2 HEADLIGHT Diagram

#

Description

Price

1

LIGHT UNIT HEAD

23003-022

Unavailable

2

SCREW ASY FOCUS ADJST

23013-008

Unavailable

3

RIM-LAMP

23006-044

Unavailable

4

SCREW ASY LENS UNIT

23013-009

Unavailable

5

LENS-COMP,"001-1269" MARK

23007-059

Unavailable

6

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

7

BODY-COMP-HEAD LAMP,F.BLACK

23005-047-21

Unavailable

8

NUT,10MM

23020-021

Unavailable

9

COLLAR,10.2X13.4X8.1

92027-231

Unavailable

10

WASHER-PLAIN,10MM

411B1000

Unavailable

11

BOLT,HEX HEAD,10X25

92007-045

Unavailable

12

WASHER

23021-010

Unavailable

13

WASHER SPRING 5MM

461F0500

Unavailable

14

SCREW,5MM

92011-024

Unavailable

15

DAMPER,LAMP

92075-128

Unavailable

16

COLLAR,HEAD LAMP

92027-1129

Unavailable

17

WASHER

92022-289

Unavailable

18

BOLT,10X35

92007-024

Unavailable
