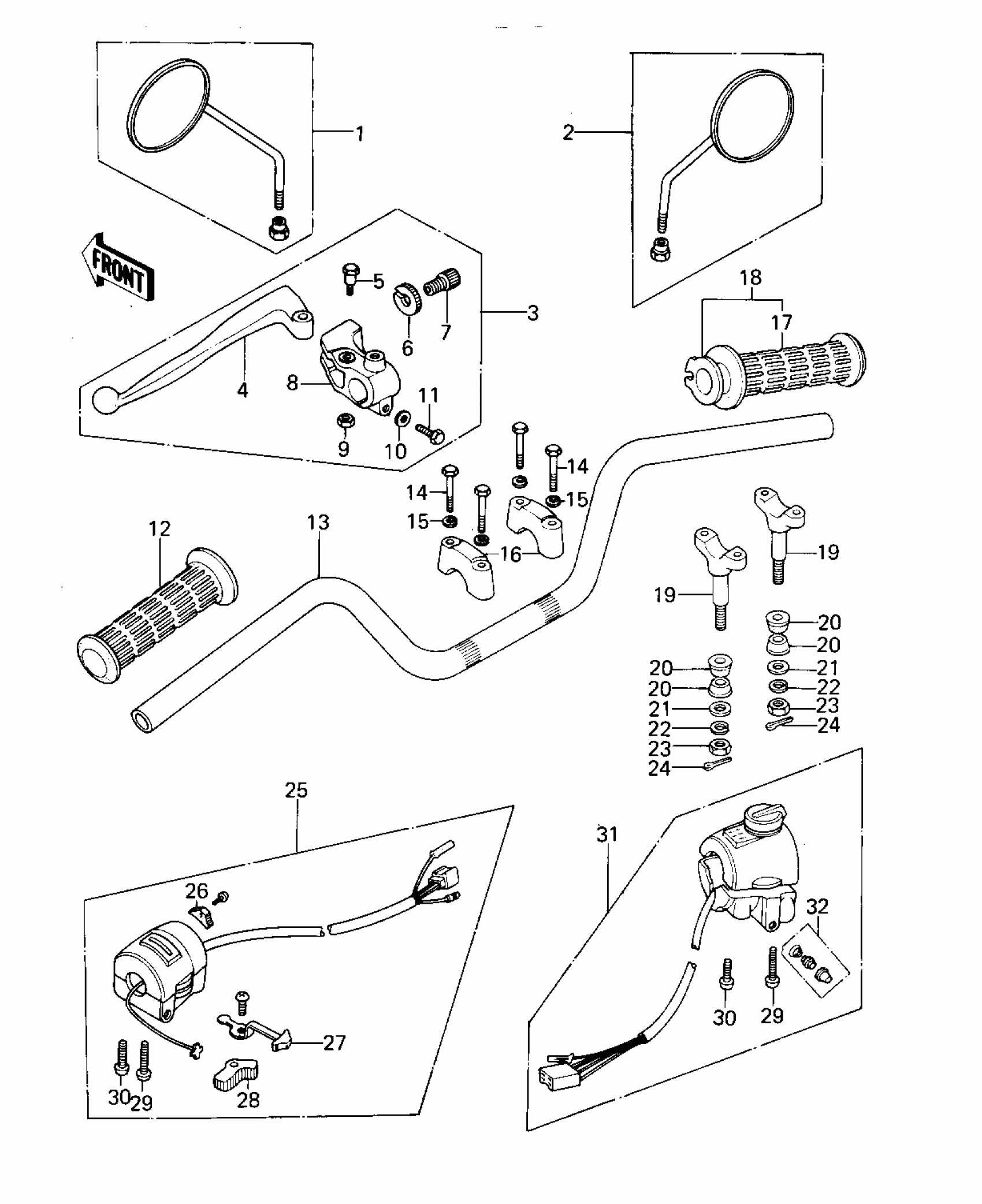

Kawasaki KZ400-B2 HANDLEBAR Diagram
#
Description
Price
1
REAR VIEW MIRROR,L.H.
56001-1015
Unavailable
2
REAR VIEW MIRROR,R.H.
56001-1016
Unavailable
3
LEVER ASSY,CLUTCH
46076-052
Unavailable
4
LEVER-GRIP,CLUTCH
46092-023
Unavailable
5
BOLT,HEX HEAD
92007-047
Unavailable
6
NUT,CABLE ADUST NUT
46056-007
Unavailable
7
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
8
HOLDER,CLUTCH LEVER
46094-017
Unavailable
9
NUT,LOCK,6MM
92019-008
Unavailable
10
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
11
BOLT HEX HEAD 6X25
110N0625
Unavailable
12
RUBBER,L.H GRIP
46075-028
Unavailable
13
HANDLEBAR
46003-1019
Unavailable
14
BOLT 8X38
92001-1405
Unavailable
15
WASHER SPRING 8MM
461F0800
Unavailable
16
HOLDER-HANDLE,UPP
46012-008
Unavailable
17
RUBBER,R.H GRIP
46061-018
Unavailable
18
GRIP ASSY,THROTTLE
46019-038
Unavailable
19
HOLDER-HANDLE,LWR
46012-010
Unavailable
20
DAMPER,HANDLE HOLDER
92075-039
Unavailable
21
PLATE,HANDLE HOLDER
46016-003
Unavailable
22
WASHER SPRING 10MM
461F1000
Unavailable
23
NUT-HEX-FINE,10MM
314B1000
Unavailable
24
PIN-SNAP,8MM
554A0800
Unavailable
25
HOUSING ASSY,CONT,L.H
46091-1079
Unavailable
26
KNOB,LIGHTING SW L.H
46044-013
Unavailable
27
KNOB,LIGHTING SW L.H
46043-005
Unavailable
28
BUTTON, HORN PUSH
46028-006
Unavailable
29
SCREW-PAN-CROS
220B0535
Unavailable
30
SCREW PAN HEAD 5X30
220B0530
Unavailable
31
HOUSING ASSY,R.H
46091-1039
Unavailable
32
SWITCH,PUSH BUTTON
27010-1009
Unavailable
