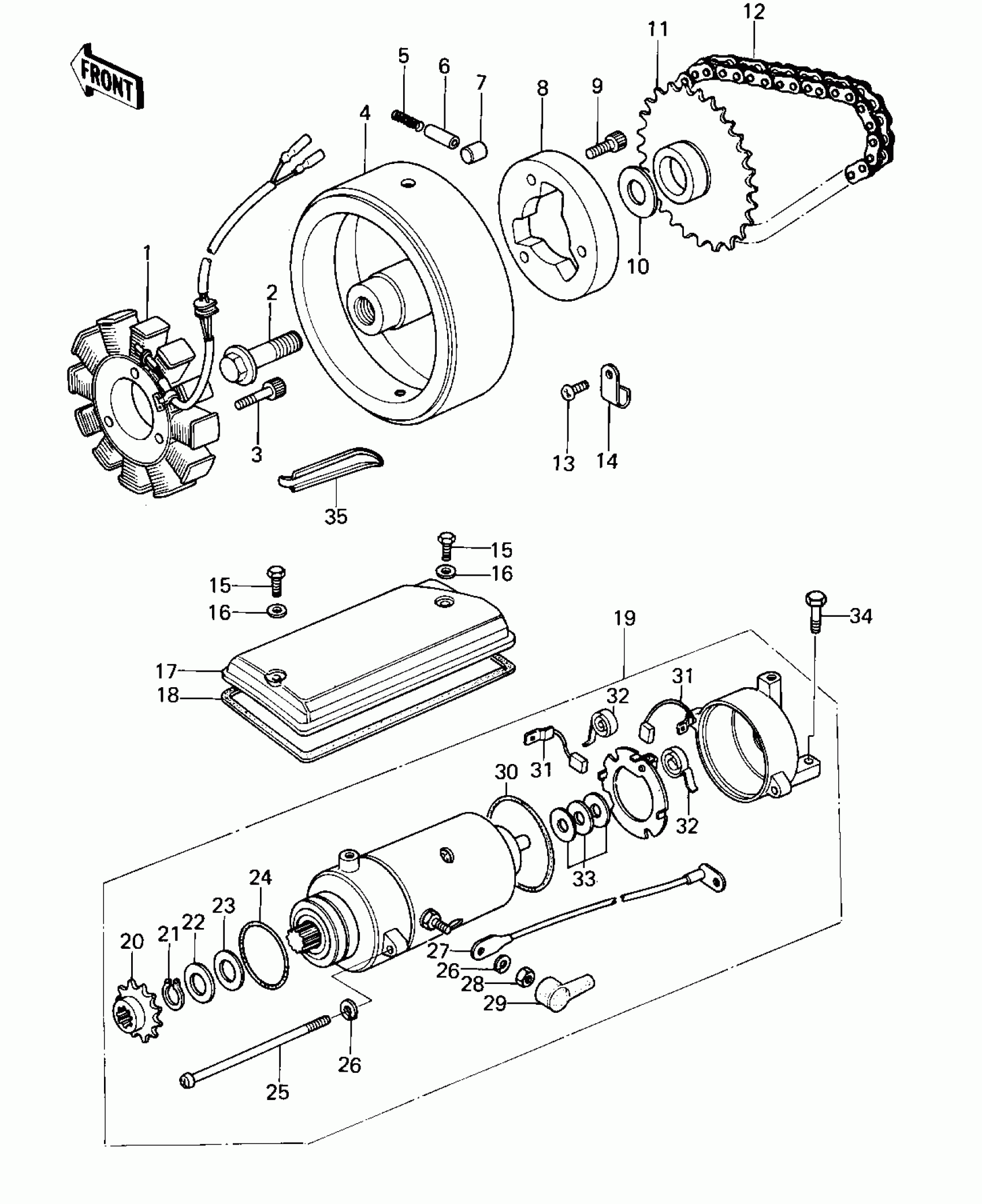

Kawasaki KZ400-B2 GENERATOR/STARTER MOTOR Diagram
#
1
STATOR.ASSY,GENERATER
21003-1009
Unavailable
2
BOLT,10X40
92002-1303
Unavailable
3
BOLT-SOCKET,6X28
120P0628
Unavailable
4
FLYWHEEL
21050-1004
Unavailable
5
SPRING
92081-110
Unavailable
6
PIN
92043-087
Unavailable
7
ROLLER,15X13
92122-004
Unavailable
8
BOLT-SOCKET,8X16
120P0816
Unavailable
9
BOLT-SOCKET,8X16
120P0816
Unavailable
10
SPACER,25X40X1
92026-1004
Unavailable
11
SPROCKET,ONWAY CLUTCH
12046-1030
Unavailable
12
CHAIN,DYNAMO
92057-1009
Unavailable
13
SCREW PAN HEAD 6X10
220B0610
Unavailable
14
CLAMP,WIRING HARNESS
21126-008
Unavailable
15
BOLT (6X10)
110R0610
Unavailable
16
WASHER,PLAIN,6MM
410D0600
Unavailable
17
COVER,STARTER
14025-1284
Unavailable
18
GASKET,STARTER COVER
11009-1006
Unavailable
19
MOTOR ASSY,STARTER
21163-1011
Unavailable
20
SPROCKET-ASSY
21053-002
Unavailable
21
CIRCLIP-TYPE-C,14MM
480J1400
Unavailable
22
WASHER,PLAIN,14MM
21025-008
Unavailable
23
WASHER PLAIN 14MM
21025-009
Unavailable
24
RING-O,42.8MM
21027-005
Unavailable
25
SCREW PAN HEAD 6X110
220B06110
Unavailable
26
WASHER SPRING 6MM
461F0600
Unavailable
27
WIRE STRTER MOT LEAD
26010-035
Unavailable
28
NUT 6MM
312B0600
Unavailable
29
CAP,STARTING MOTOR
21017-020
Unavailable
30
"0" RING,62MM
21027-006
Unavailable
31
BRUSH CARBON
21039-004
Unavailable
32
SPRING CARBON BRUSH
21040-004
Unavailable
33
WASHER,PLAIN,9MM
21025-007
Unavailable
34
BOLT-UPSET
112G0625
Unavailable
35
PLATE,LEAD CLAMP
13169-1008
Unavailable
