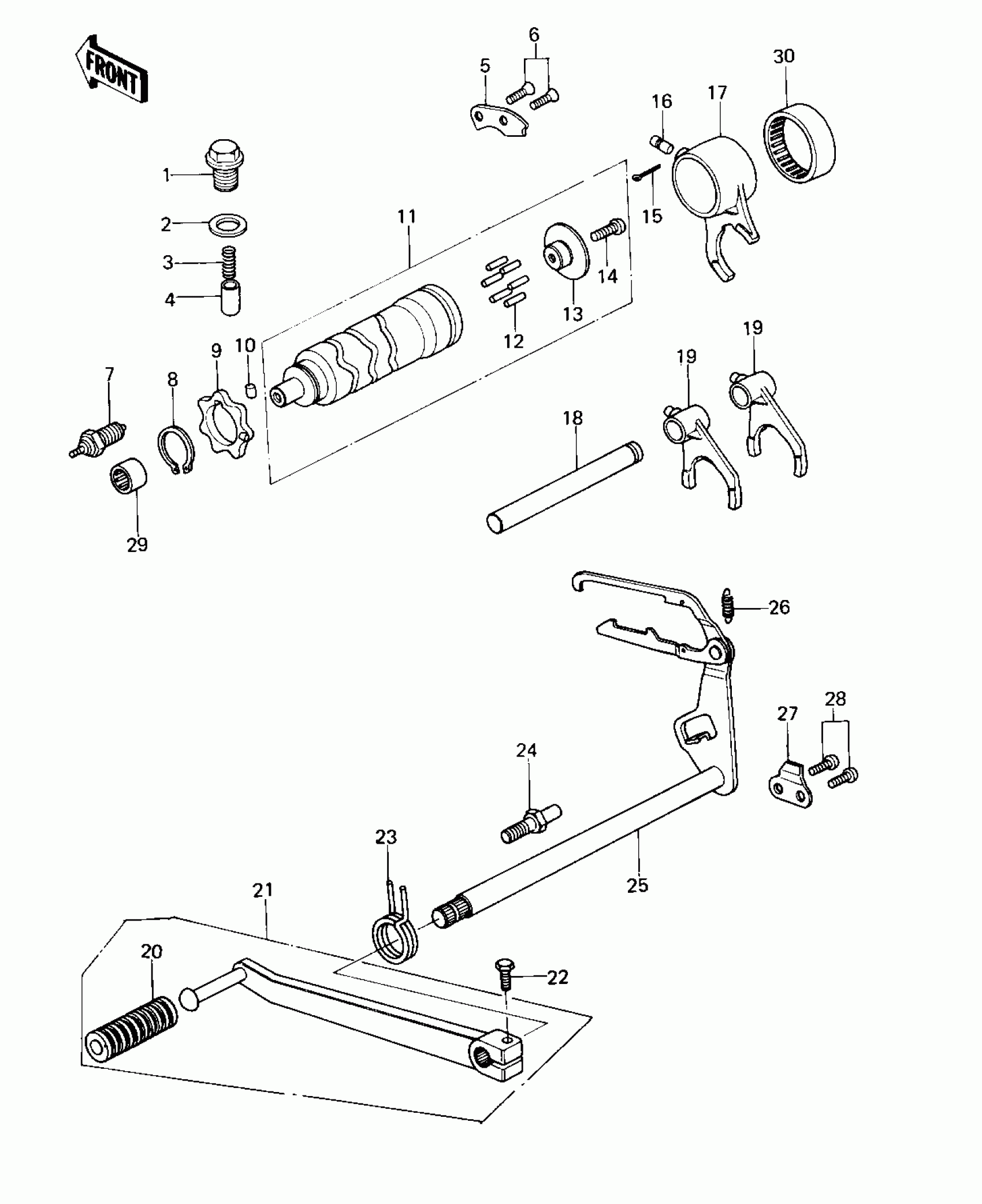

Kawasaki KZ400-B2 GEAR CHANGE MECHANISM Diagram
#
Description
Price
1
BOLT,NEUTRAL POSITION
92001-1037
Unavailable
2
GASKET,15.5X22X1
11009-1008
Unavailable
3
SPRING
92081-112
Unavailable
4
PIN
92043-076
Unavailable
5
PLATE,SIFT DRM POSITN
14014-1001
Unavailable
6
SCREW,CSK,6X16
92009-1007
Unavailable
7
SWITCH,NEUTRAL
13151-5002
Unavailable
8
CIRCLIP-TYPE-C,30MM
480J3000
Unavailable
9
CAM-CHANGE DRUM
13145-1058
Unavailable
10
ROLLER,4X6
610A0406
Unavailable
11
DRUM ASSY,CHANGE
13239-1011
Unavailable
12
PIN,DOWEL,4X15.8
92042-014
Unavailable
13
PLATE,SHIFT DRUM PIN
13142-016
Unavailable
14
SCREW-PAN-CROS,6X14
220B0614
Unavailable
15
PIN-COTTER,3.0X20
550D3020
Unavailable
16
PIN,DOWEL,8X18
92042-021
Unavailable
17
FORK-SHIFT,5TH&TOP
13140-1053
Unavailable
18
ROD,SHIFT
13209-022
Unavailable
19
FORK-SHIFT,1,4&2,3
13140-1067
Unavailable
20
DAMPER,CHANGE PEDAL
13157-004
Unavailable
21
PEDAL ASSY,GEAR SHIFT
13242-017
Unavailable
22
BOLT-UPSET,6X20
112G0620
Unavailable
23
SPRING,CHG PEDL RTN
92083-021
Unavailable
23
SPRING,CHG PEDL RTRN
92083-028
Unavailable
24
BOLT,RETURN SPRING
92001-1401
Unavailable
25
LEVER COMP,CHNG SHAFT
13161-1001
Unavailable
26
SPRING,CHANGE LEVER
92081-076
Unavailable
27
PLATE,GEAR SHIFT LEV
13169-011
Unavailable
28
SCREW-PAN-CROS,6X16
220B0616
Unavailable
29
BEARING-NEEDLE,HK1210
92046-1010
Unavailable
30
BEARING-NEEDLE,37BTM4312
92046-051
Unavailable
