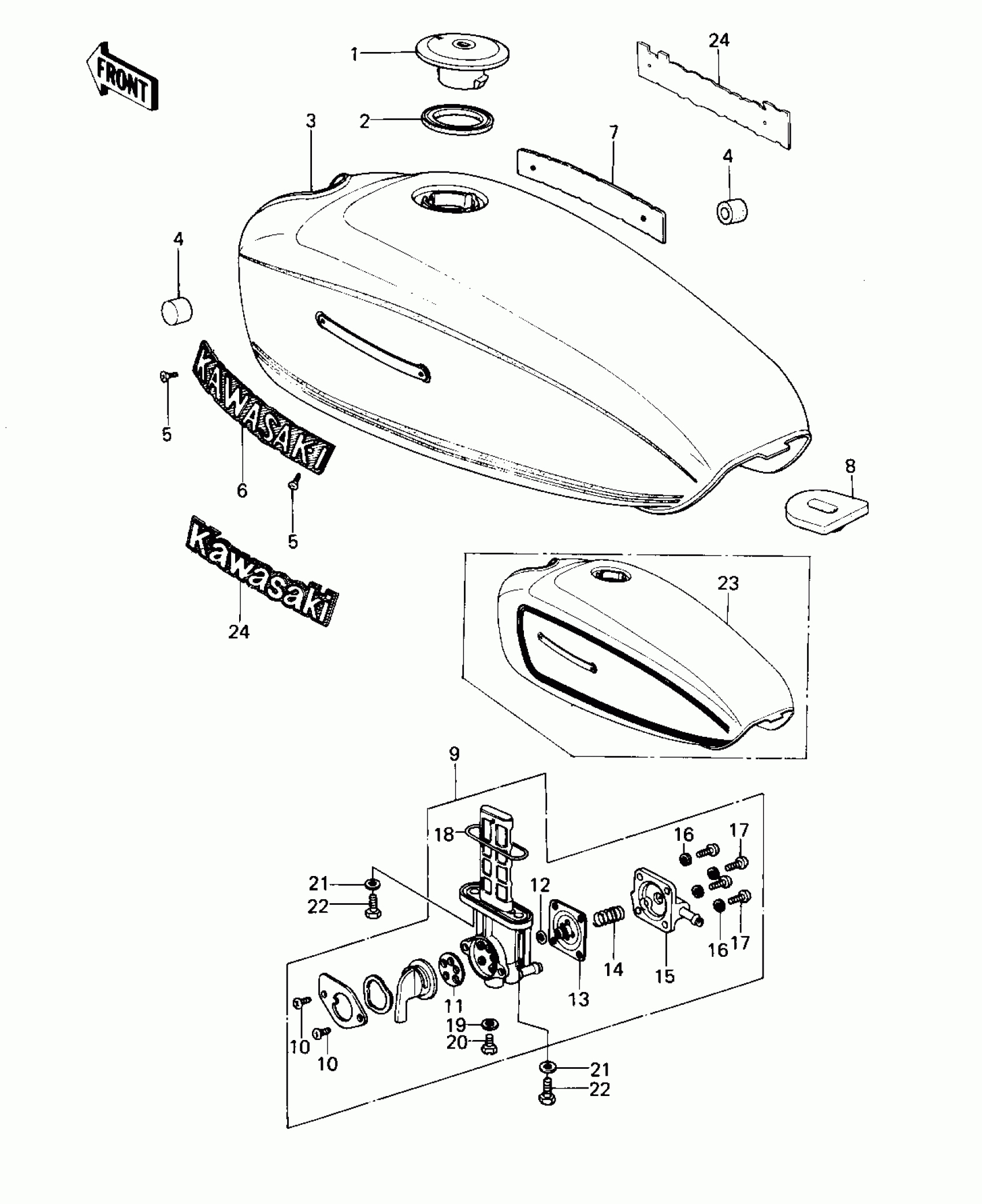

Kawasaki KZ400-B2 FUEL TANK Diagram

#

Description

Price

1

CAP ASSY,TANK

51048-1001

Unavailable

2

GASKET,TANKCAP

11009-1053

Unavailable

3

TANK-FUEL,C.E.GREEN

51001-1004-4U

Unavailable

3

TANK-FUEL,C.P.RED

51001-1004-A5

Unavailable

4

DAMPER,FUEL TANK

92075-101

Unavailable

5

SCREW-CSK-CROS

221C0306

Unavailable

6

EMBLEM,FUEL TANK,L.H

56014-1013

Unavailable

7

EMBLEM,FUEL TANK,R.H

56014-1014

Unavailable

8

DAMPER,FUEL TANK

92075-295

Unavailable

9

TAP ASSY,FUEL

51023-1030

Unavailable

10

SCREW PAN HEAD 4X8

220B0408

Unavailable

11

GASKET,TAP VALVE

11009-1068

Unavailable

12

"0" RING,DIAPHRAGM

92055-1068

Unavailable

13

DIAPHRAGM ASSY,TAP

43028-1009

Unavailable

14

SPRING,DIAPHRAGM

92081-1054

Unavailable

15

COVER ASSY,TAP DIAPRM

16146-1006

Unavailable

16

WASHER SPRING 4MM

461F0400

Unavailable

17

SCREW PAN HEAD 4X10

220B0410

Unavailable

18

"O" RING,TAP FLANGED

43058-1006

Unavailable

19

GASKET,DRAIN BOLT

11009-1045

Unavailable

20

BOLT,DRAIN

92001-1089

Unavailable

21

WASHER-PLAIN

92022-183

Unavailable

22

BOLT,6X20

92001-1091

Unavailable

23

TANK-FUEL,L.RED

51001-1004-7V

Unavailable

23

TANK-FUEL,C.O.BLUE

51001-1004-4X

Unavailable

24

EMBLEM,FUEL TANK

56014-1038

Unavailable
