1979 Kawasaki KZ400-B2 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1979 Kawasaki KZ400-B2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

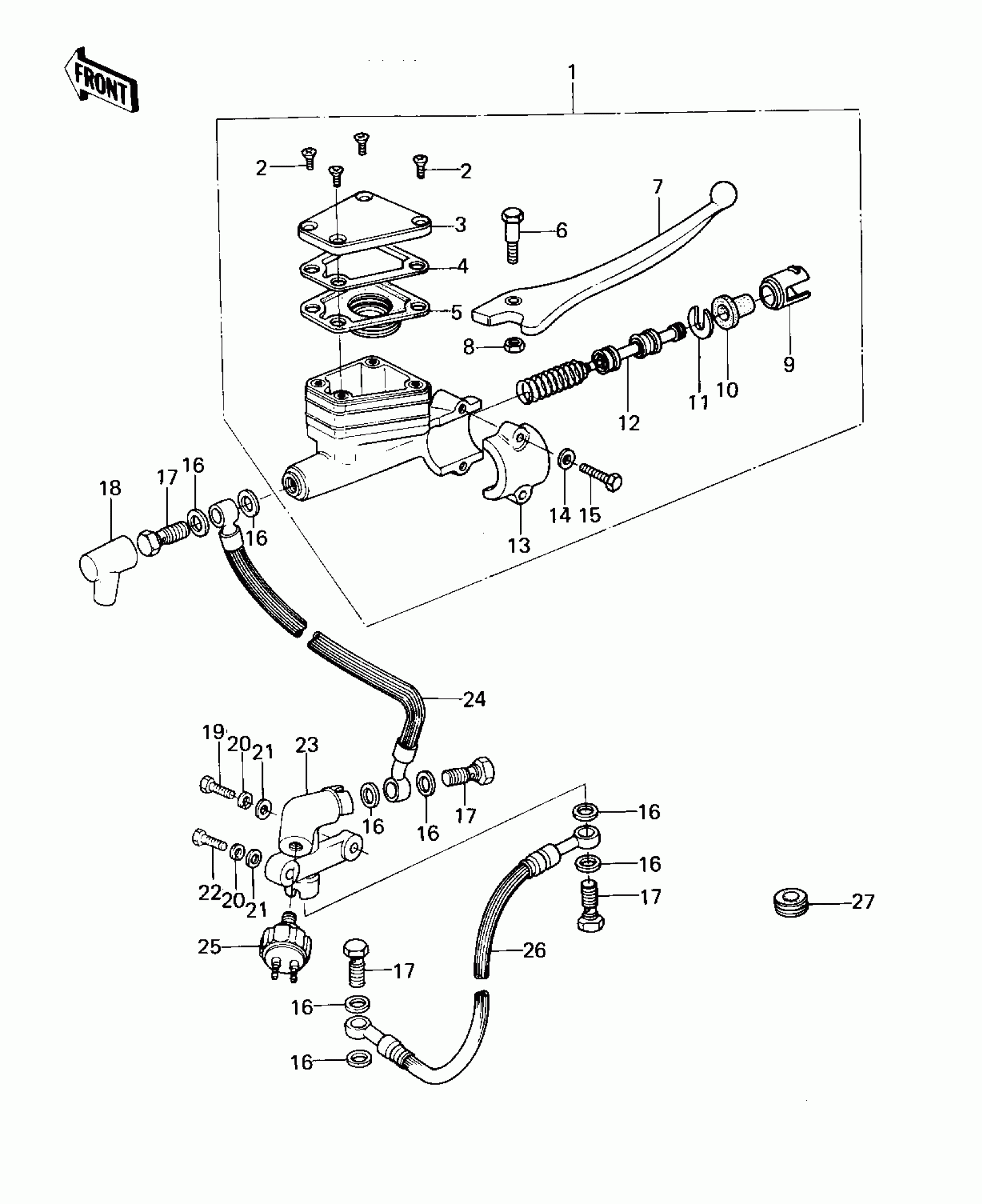

1979 Kawasaki KZ400-B2 Front Master Cylinder Diagram

#

Description
Price
Status
Order Qty

1

CYLINDER ASSY,MASTER

43015-1003

Out of stock

2

SCREW-CSK-CROS,5X12,BLACK

92001-1055

Out of stock

3

CAP,OIL CUP

43026-1003

Out of stock

4

PLATE,DIAPHRAGM

43027-1002

Out of stock

5

DIAPHRAGM

43028-1002

Out of stock

6

BOLT,FR BRAKE LEVER

92001-1056

Out of stock

7

LEVER,BRAKE

46092-1001

Out of stock

8

NUT 6MM

312B0600

Out of stock

9

LINER,PISTON

14008-1007

Out of stock

10

COVER-SEAL,BRAKE PISTON

49016-1010

Out of stock

11

STOPPER-BRAKE,PISTON

43022-1001

Out of stock

12

PISTON-COMP-BRAKE

43020-1026

Out of stock

13

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Out of stock

14

WASHER PLAIN 6MM

411B0600

Out of stock

15

BOLT HEX HEAD 6X25

110N0625

Out of stock

16

WASHER,10.5X15X1.5

43067-001

Out of stock

17

BOLT,OIL,L=23

92002-1888

Out of stock

18

BOOT,DUST

49006-1041

Out of stock

19

BOLT 6X22

112B0622

Out of stock

20

WASHER SPRING 6MM

461F0600

Out of stock

21

WASHER PLAIN 6MM

411B0600

Out of stock

22

BOLT-HEX HEAD,6X32

110N0632

Out of stock

23

JOINT,THREE WAY

43061-002

Out of stock

24

HOSE,BRAKE,M/C

43059-1012

Out of stock

25

SWITCH-FRONT BRAKE

43065-001

Out of stock

26

HOSE,BRAKE,CALIPER

43059-1003

Out of stock

27

GROMMET,HOSE CLAMP

43064-006

Out of stock
