1979 Kawasaki KZ400-B2 Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 1979 Kawasaki KZ400-B2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

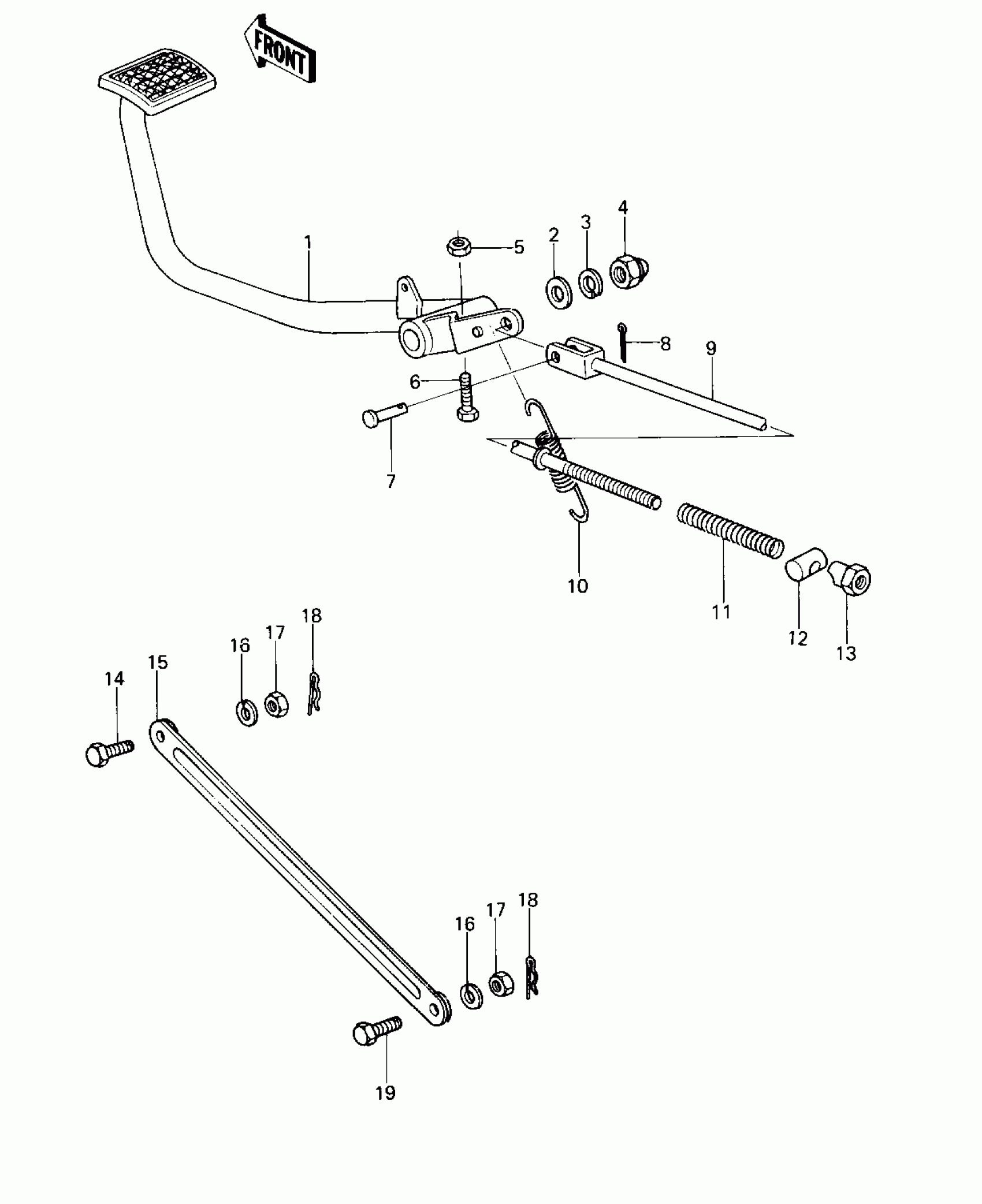

1979 Kawasaki KZ400-B2 Brake Pedal/torque Link Diagram

#

Description
Price
Status
Order Qty

1

PEDAL,BRAKE

43001-1010

Out of stock

2

WASHER,8.5X20X1.6

92022-1561

Out of stock

3

WASHER SPRING 8MM

461F0800

Out of stock

4

NUT,CAP AND LOCK,8MM

92019-013

Out of stock

5

NUT 6MM

311B0600

Out of stock

6

BOLT,6X25

92001-1090

Out of stock

7

PIN,BRAKE ROD FITTING

92043-090

Out of stock

8

PIN COTTER 2.5X16

550D2516

Out of stock

9

ROD,BRAKE

43011-026

Out of stock

10

SPRING,BRAKE PEDAL

43005-029

Out of stock

11

SPRING,BRAKE ROD

43012-001

Out of stock

12

PIN,BRAKE ROD

92043-065

Out of stock

13

NUT,BRAKE ROD

92015-042

Out of stock

14

BOLT,10X25

92003-017

Out of stock

15

TORQUE LINK REAR BRK

43007-016

Out of stock

16

WASHER SPRING 10MM

461F1000

Out of stock

17

NUT-HEX-FINE,10MM

315B1000

Out of stock

18

PIN-SNAP,8MM

554A0800

Out of stock

19

BOLT,10X35

92003-034

Out of stock
