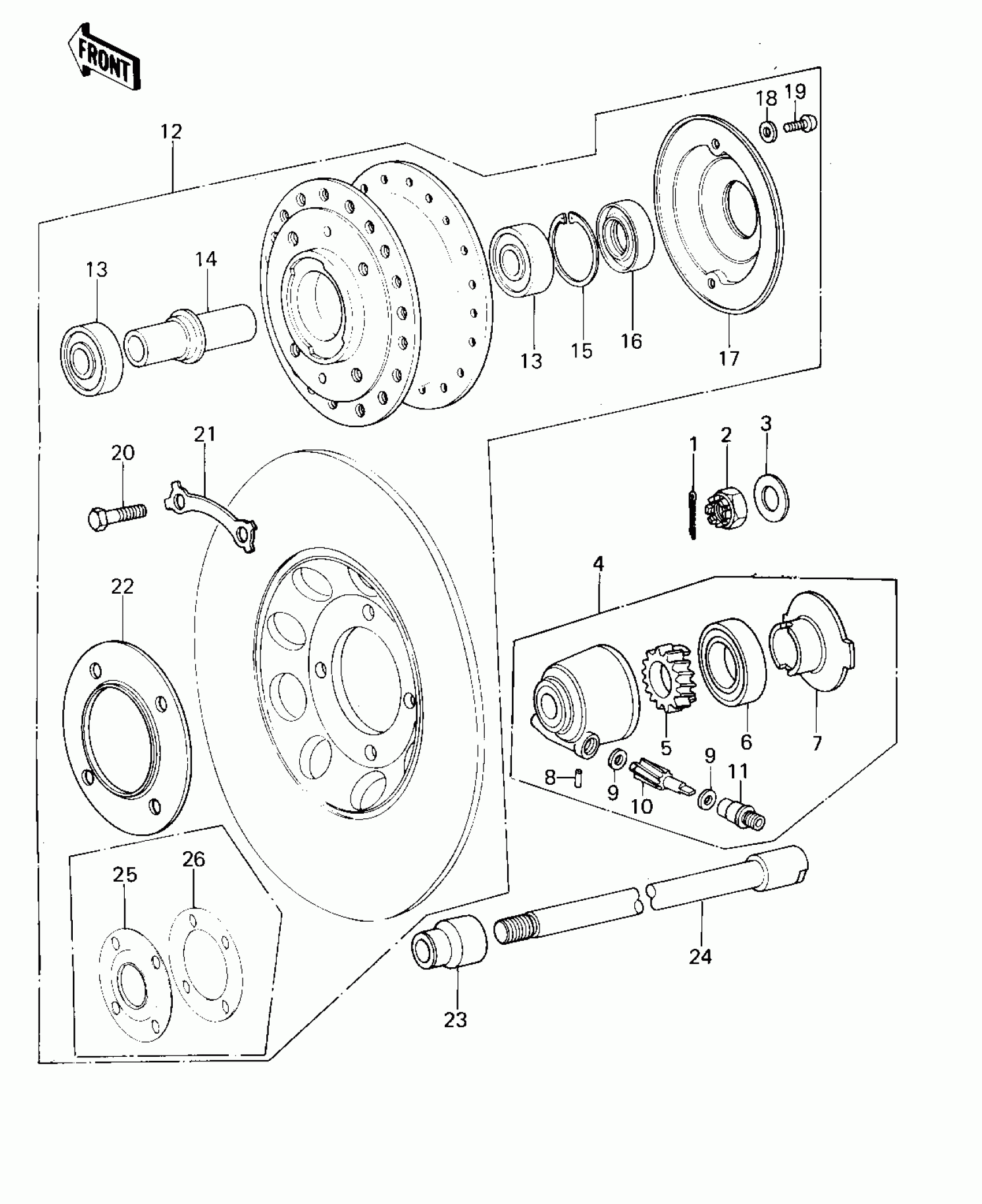

Kawasaki KZ400-B2 FRONT HUB Diagram
#
Description
Price
1
PIN-COTTER,4.0X35
550D4035
Unavailable
2
NUT,CASTLE,16MM
42045-014
Unavailable
3
WASHER PLAIN 16MM
410B1600
Unavailable
4
GEAR BOX ASSY
41078-1004
Unavailable
5
GEAR,SPEEDOMETER
41060-1010
Unavailable
6
SEAL-OIL,BJN30427-C3
92049-1057
Unavailable
7
RECEIVER,GEAR
41064-013
Unavailable
8
PIN,SPRING
41082-001
Unavailable
9
WASHER,5.1X9X0.4
41063-001
Unavailable
10
PINION,SPEEDOMETER
41060-017
Unavailable
11
BUSHING,SPEEDOMETER CABLE
41062-005
Unavailable
12
DRUM-ASSY,FR BRK
41034-1003
Unavailable
13
BEARING-BALL,#6203C3
601B6203
Unavailable
14
COLLAR,BRG
41039-028
Unavailable
15
RING-SNAP,40MM
92033-1040
Unavailable
16
OIL SEAL
654A254008
Unavailable
17
DUST COVER
41042-016
Unavailable
18
WASHER-PLAIN,5MM
411B0500
Unavailable
19
SCREW PAN HEAD 5X12
220B0512A
Unavailable
20
BOLT
92001-158
Unavailable
21
WASHER,LOCK
92088-023
Unavailable
22
COVER,DUST
49016-1001
Unavailable
23
COLLAR,FRONT AXLE
92027-1008
Unavailable
24
AXLE,FRONT
41068-1002
Unavailable
25
COVER,DUST,HUB
49016-1021
Unavailable
26
COVER,DUST,HUB
49016-1022
Unavailable
