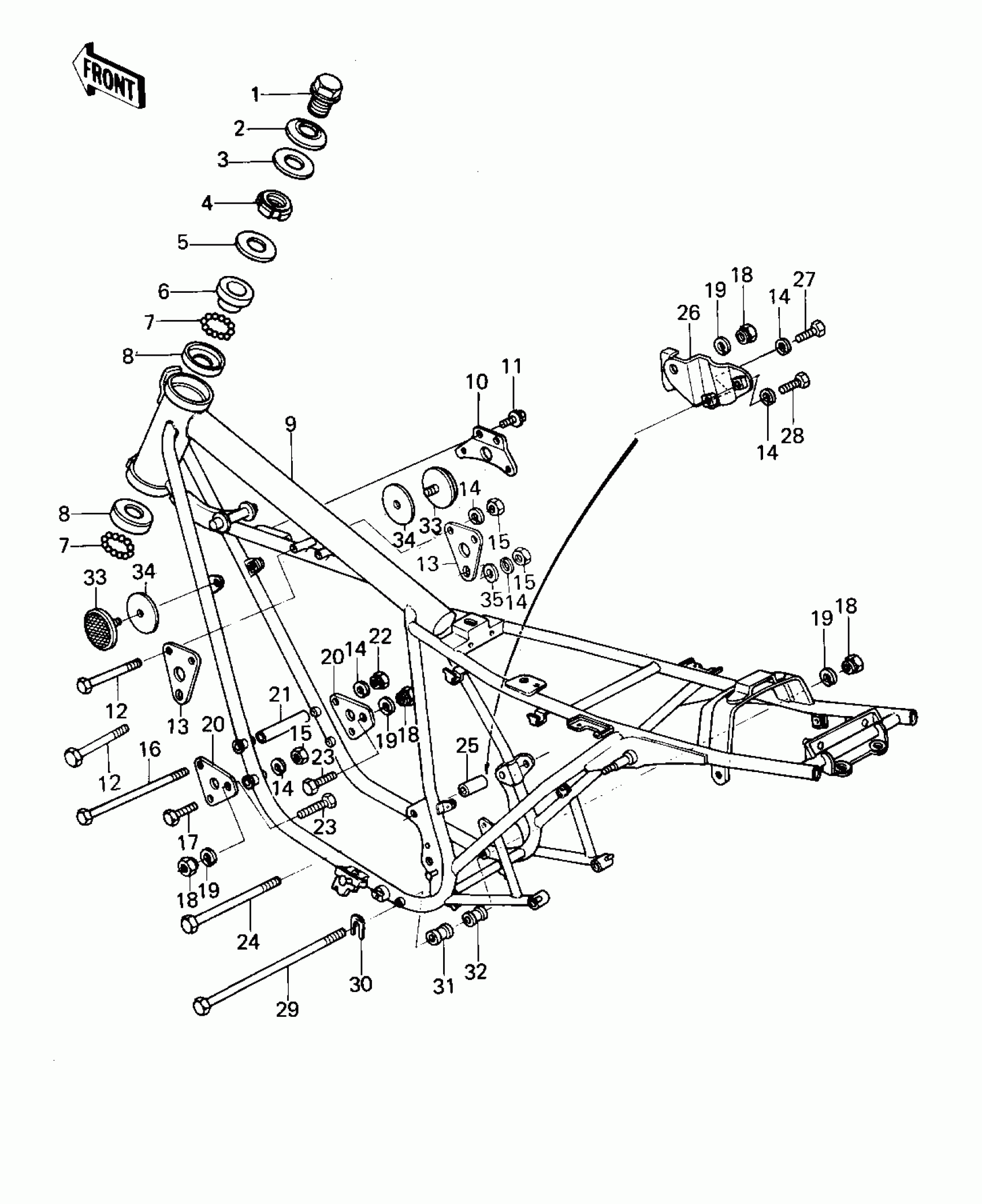

Kawasaki KZ400-B2 FRAME/FRAME FITTINGS Diagram
#
1
BOLT,16X25.5
92007-031
Unavailable
2
WASHER,16X41X4
92022-230
Unavailable
3
WASHER,WAVE
46100-003
Unavailable
4
NUT,30MM
92090-007
Unavailable
5
CAP,STEERING STEM
46098-016
Unavailable
6
RACE,STEERING STEM BEARING
92047-006
Unavailable
7
BALL-STEEL,1/4
600A0800
Unavailable
8
RACE,STEERING STEM BEARING
92048-006
Unavailable
9
FRAME-COMP
32002-1260
Unavailable
10
BRACKET,IGNITON COIL
32058-049
Unavailable
11
BOLT,FLANGED,6X11
92003-208
Unavailable
12
BOLT,FLANGED,8X60
92001-1581
Unavailable
13
BRACKET,ENGINE
32029-1016
Unavailable
14
WASHER SPRING 8MM
461F0800
Unavailable
15
NUT,8MM
311B0800
Unavailable
16
BOLT,HEX HEAD,8X253
92003-171
Unavailable
17
BOLT,HEX HEAD,8X59
110G0859
Unavailable
18
NUT,LOCK,10MM
92019-021
Unavailable
19
WASHER SPRING 10MM
461F1000
Unavailable
20
PLATE,ENG MOUNT,FRNT
32030-044
Unavailable
21
COLLAR,ENG PLAT,FRNT
92027-233
Unavailable
22
NUT,LOCK,8MM
92017-013
Unavailable
23
BOLT,HEX HEAD,10X50
92001-1254
Unavailable
24
BOLT,FLANGED,10X220
92002-1197
Unavailable
25
COLLAR,ENG MOUNT UPPE
92027-228
Unavailable
26
PLATE,ENG MOUNT,REAR
32030-034
Unavailable
27
BOLT-SMALL-UPSET 8X25
115G0825
Unavailable
28
BOLT,8X20
115G0820
Unavailable
29
BOLT,HEX HEAD,10X292
92003-162
Unavailable
30
SHIM-ENG FIT FR,0.5MM
92025-053
Unavailable
30
SHIM-ENG FIT FR,0.8MM
92025-054
Unavailable
30
SHIM-ENG FIT FR,1.0MM
92025-055
Unavailable
30
SHIM-ENG FIT FR,1.6MM
92025-056
Unavailable
30
SHIM-ENG FIT FR,2.0MM
92025-057
Unavailable
30
SHIM-ENG FIT FR,2.3MM
92025-058
Unavailable
31
COLLAR,ENG MOUNTING
92027-160
Unavailable
32
COLLAR
92027-250
Unavailable
33
REFLECTOR,REFLEX,REAR
28012-009
Unavailable
34
DAMPER,REFLECTOR
92094-011
Unavailable
35
WASHER PLAIN 8MM
411B0800
Unavailable
