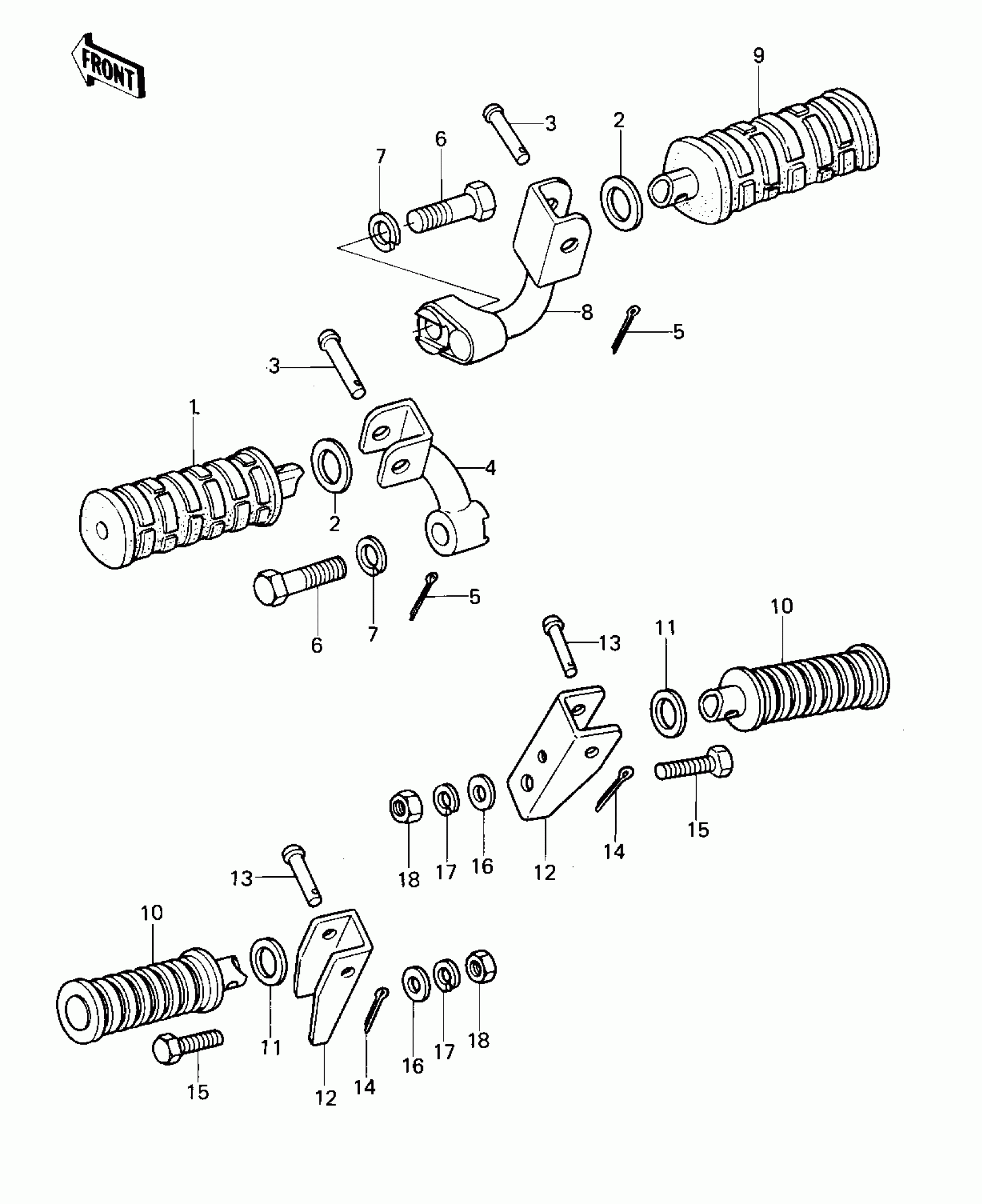

Kawasaki KZ400-B2 FOOTRESTS Diagram

#

Description

Price

1

BAR-FOOTREST,L.H

34028-011

Unavailable

2

WASHER,25X36X2.3

92022-250

Unavailable

3

PIN,8X31

92043-080

Unavailable

4

HOLDER-STEP,FR,LH

34003-1078

Unavailable

5

PIN COTTER 2.5X16

550D2516

Unavailable

6

BOLT-HEX HEAD,12X36

113B1236A

Unavailable

7

WASHER-SPRING,12MM

461F1200

Unavailable

8

HOLDER-STEP,FR,RH

34003-1079

Unavailable

9

BAR-FOOTREST,R.H

34028-012

Unavailable

10

RUBBER,FOOTREST

92076-027

Unavailable

11

WASHER-PLAIN (OPT)

92022-199

Unavailable

12

BRACKET,STEP

32054-1021

Unavailable

13

PIN,6X28

92043-1464

Unavailable

14

PIN-COTTER,2.0X12

550D2012

Unavailable

15

BOLT,HEX HEAD,10X50

92001-1254

Unavailable

16

WASHER PLAIN 10MM

410B1000

Unavailable

17

WASHER SPRING 10MM

461F1000

Unavailable

18

NUT-HEX-FINE,10MM

314B1000

Unavailable
