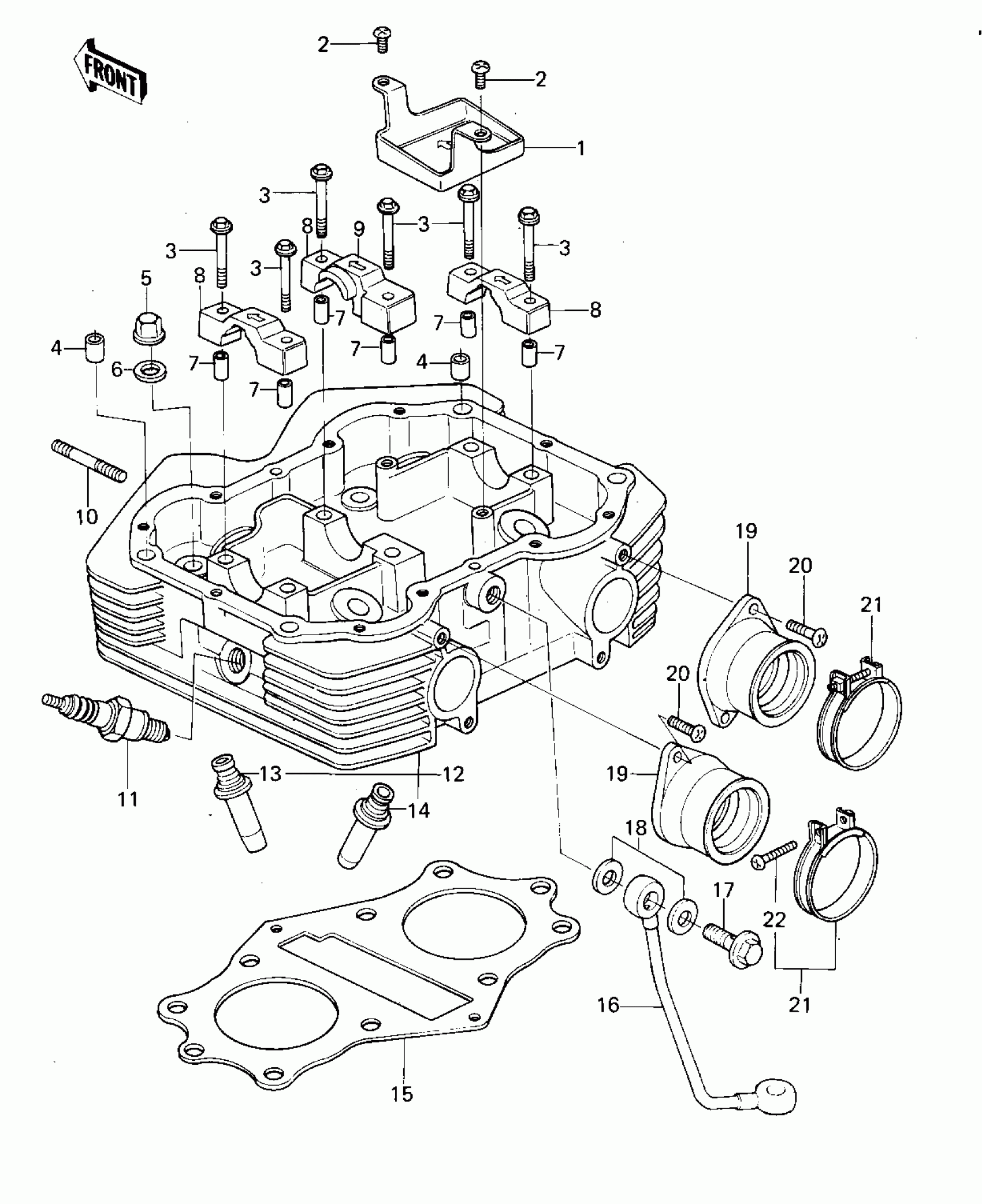

Kawasaki KZ400-B2 CYLINDER HEAD Diagram
#
1
CAP,CYLINDER HEAD OIL
11012-1027
Unavailable
2
SCREW PAN HEAD 6X10
220B0610
Unavailable
3
BOLT,HEX HEAD,6X38
92003-206
Unavailable
4
PIN,DOWEL,10X14
92043-1037
Unavailable
5
NUT,FLANGED CAP,10MM
92015-076
Unavailable
6
WASHER,10.5X22X1.6
92022-1005
Unavailable
7
PIN,DOWEL,6.3X8X14
92042-007
Unavailable
8
CAP,BRG,HEAD,L.H&R.H
14022-1002
Unavailable
9
CAP,BRG.HEAD,CENTER
14022-1003
Unavailable
10
STUD,6X46
92004-049
Unavailable
11
SPARK PLUG B7ES
B7ES
Unavailable
12
CYLINDER HEAD
11002-1003
Unavailable
13
GUIDE,EXHAUST VALVE
49002-1010
Unavailable
14
GUIDE,INLET VALVE
12013-003
Unavailable
15
GASKET,CYLINDER HEAD
11004-1008
Unavailable
16
PIPE,OIL
32032-1084
Unavailable
17
BOLT,BANJO,10X25
92001-1017
Unavailable
18
GASKET,10X14.5X1.5
11009-1105
Unavailable
19
HOLDER,CARBURETOR
16065-1002
Unavailable
20
SCREW PAN HEAD 6X18
220B0618
Unavailable
21
CLAMP,CARBURETOR
92037-1021
Unavailable
22
SCREW PAN HEAD 5X30
220B0530
Unavailable
1
SHAFT,ROCKER
12020-1001
Unavailable
2
GASKET,16X19.7X1.5
11009-1106
Unavailable
3
NUT,6MM
92016-061
Unavailable
4
SCREW,6MM
92009-1032
Unavailable
5
ARM,ROCKER
12016-1001
Unavailable
6
COLLET,RETAINER
12011-004
Unavailable
7
RETAINER,VALVE SPRING
12009-006
Unavailable
8
SPRING,OUTER VALVE
12007-013
Unavailable
9
SPRING,INNER VALVE
12007-014
Unavailable
10
SEAL-OIL,RV37129.5
92049-016
Unavailable
11
SEAT,VLV INNER SPRING
12010-006
Unavailable
12
SEAT,VLV OUTER SPRING
12010-005
Unavailable
13
VALVE,EXHAUST
12005-1001
Unavailable
14
VALVE,INTAKE
12004-1001
Unavailable
