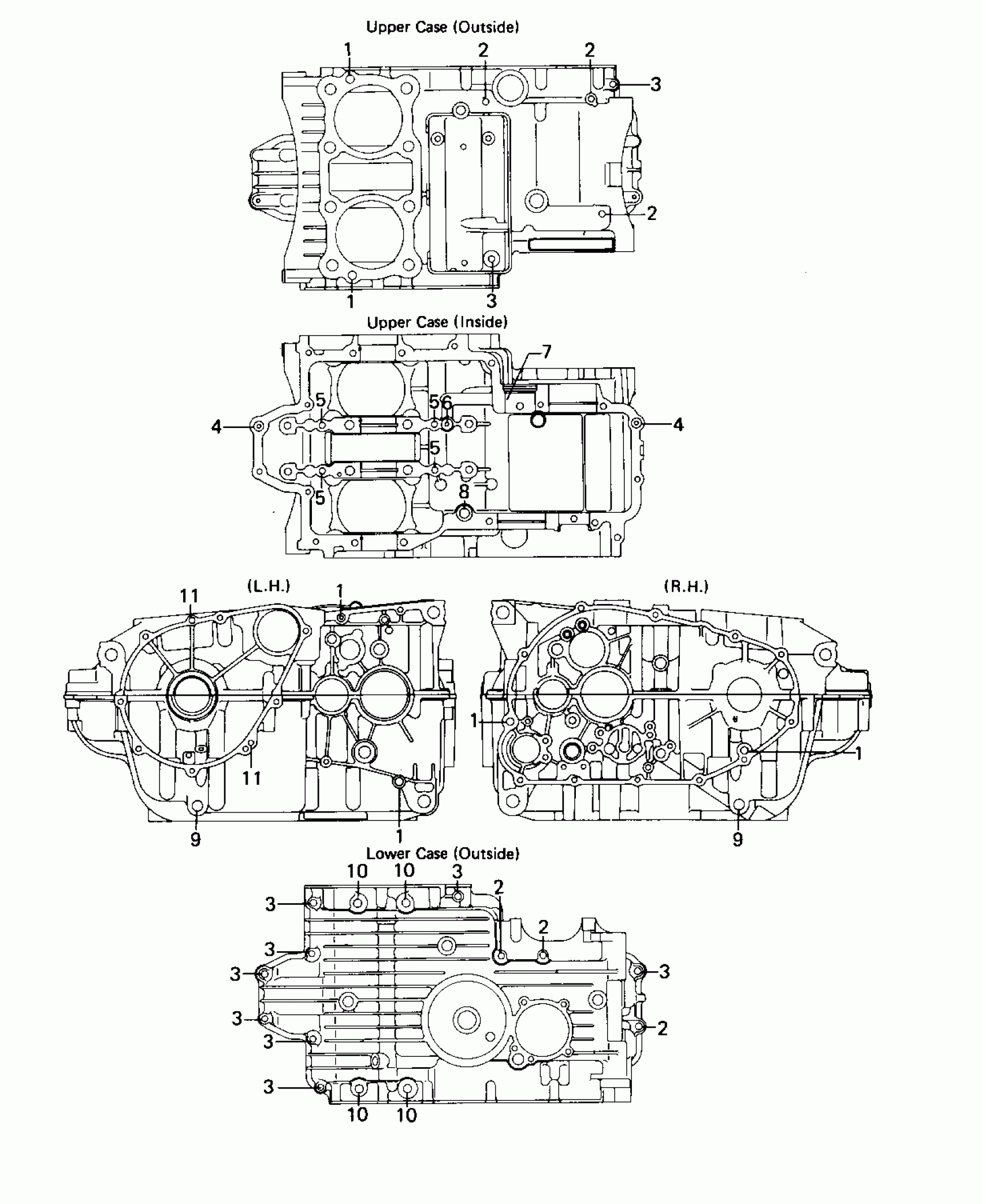

Kawasaki KZ400-B2 CRANKCASE BOLT & STUD PATTERN Diagram

#

Description

Price

1

PIN,DOWEL,6.3X8X14

92042-007

Unavailable

2

BOLT-FLANGED,6X95

130G0695

Unavailable

3*

BOLT,HEX HEAD,6X54

92003-110

Unavailable

3*

BOLT,HEX HEAD,6X54

92003-110

Unavailable

4*

PIN,DOWEL,10X14

92043-1037

Unavailable

5*

PIN-DOWEL,6X12

551A0612

Unavailable

6

RING-O,OD=13

92055-074

Unavailable

7*

NOZZLE,BLACK

92062-011

Unavailable

8

RING-O,OD=18

92055-048

Unavailable

9*

SET SCREW,PT 1/4

92013-010

Unavailable

10

BOLT,HEX HEAD,8X81

92003-108

Unavailable

11

PIN-DOWEL,6X12

551A0612

Unavailable
