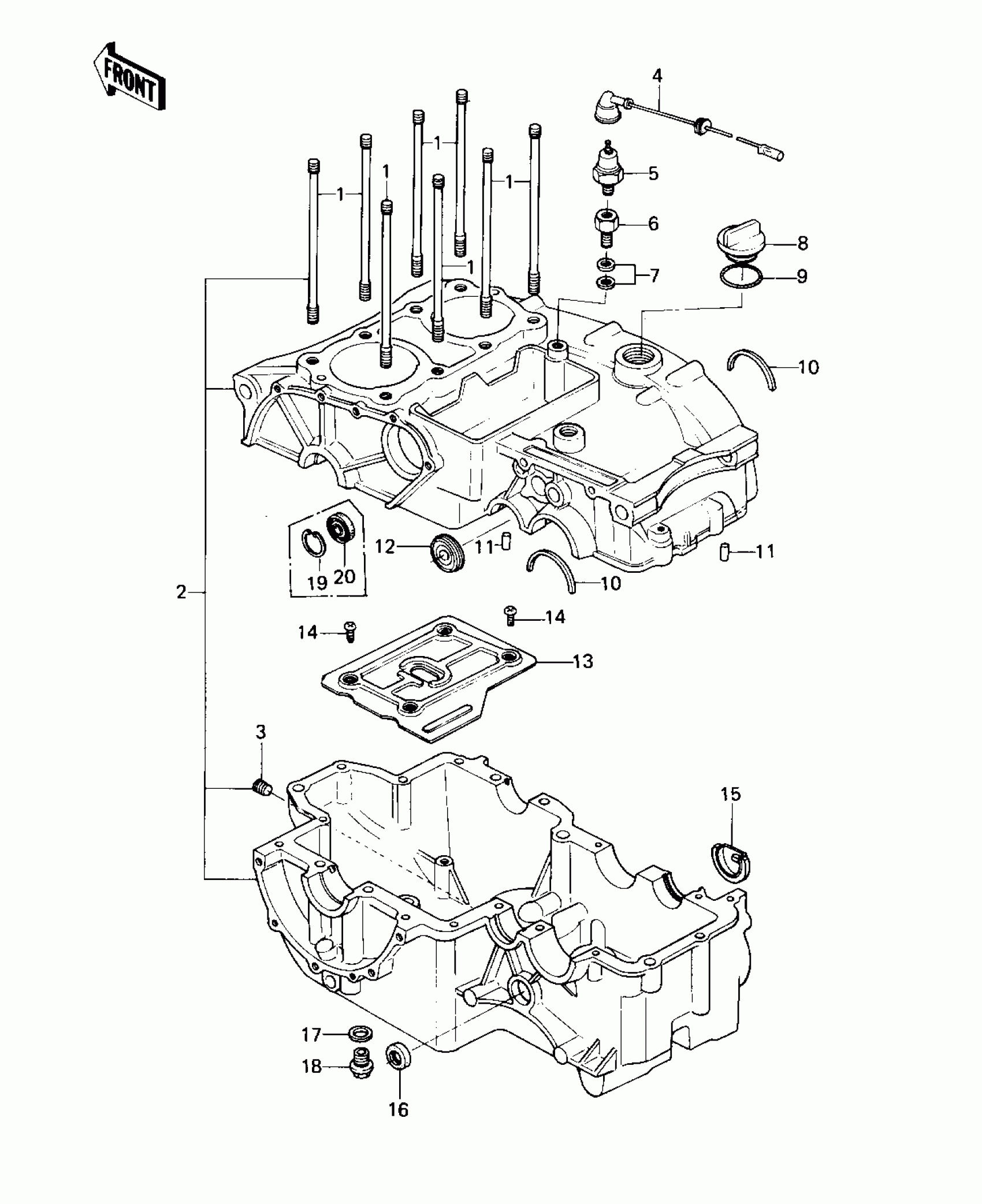

Kawasaki KZ400-B2 CRANKCASE Diagram
#
Description
Price
1*
STUD,10X153
92004-062
Unavailable
2
CRANKCASE SET
14001-5010
Unavailable
2
SET-CRANKCASE
14001-5087
Unavailable
3*
PLUG,OIL LINE,1/8X7
92066-059
Unavailable
4
WIRE,LEAD,OIL SWITCH
26011-1078
Unavailable
5
SWITCH,OIL PRESSURE
27010-1157
Unavailable
6
BOLT,OIL SWITCH
92001-1020
Unavailable
7
GASKET,10X14.5X1.5
11009-1105
Unavailable
8
CAP-OIL FILLER
16115-013
Unavailable
9
RING-O,31.5X2.6
92055-049
Unavailable
10
RING-POSITION
14013-004
Unavailable
11
PIN,DOWEL,6X16
92042-016
Unavailable
12
OIL SEAL,PUSH ROD
92050-068
Unavailable
13
PLATE,CRANKCASE
13169-1103
Unavailable
14
SCREW PAN HEAD 6X12
220B0612
Unavailable
15
RECEIVER,OIL
13045-1001
Unavailable
16
SEAL-OIL,TB13225.5
92051-005
Unavailable
17
GASKET,12X22X2
92065-097
Unavailable
18
PLUG,OIL DRAIN,12X15
92066-1174
Unavailable
19
CIRCLIP,36M/M
481J3600
Unavailable
20
OIL SEAL,PUSH ROD
92049-1041
Unavailable
