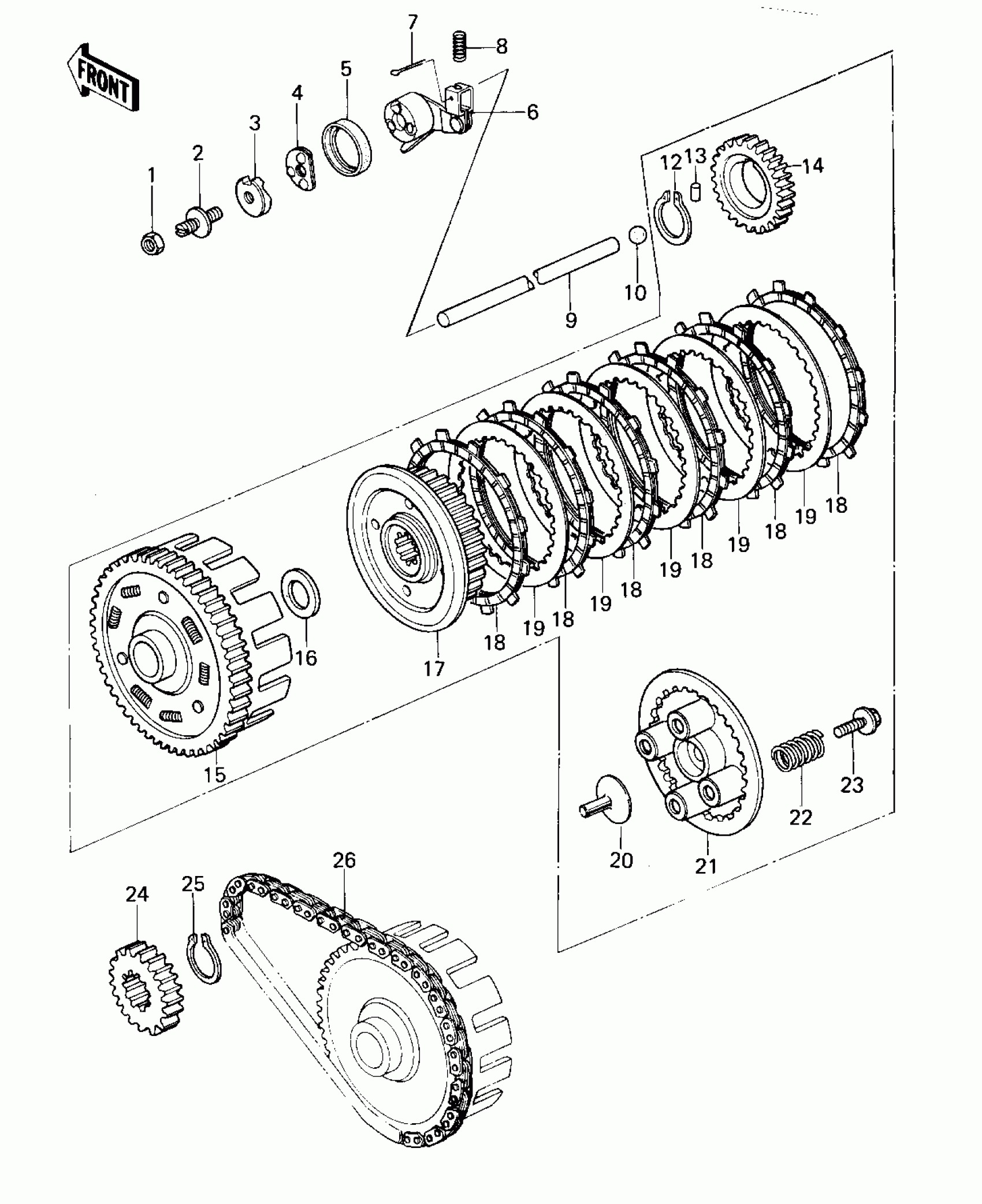

Kawasaki KZ400-B2 CLUTCH Diagram
#
Description
Price
1
NUT-HEX-SMALL,8MM
318B0800
Unavailable
2
SCREW,8MM
92009-1009
Unavailable
3
CAM-RELEASE,CLUTCH
13119-1003
Unavailable
3
CAM-RELEASE,CLUTCH
13119-1003
Unavailable
4
BEARING,BALL,CLUTCH
92045-1001
Unavailable
5
SEAL-OIL,CLUTCH RELEASE
92049-1003
Unavailable
6
RELEASE, CLUTCH
13102-1004
Unavailable
6
RELEASE, CLUTCH
13102-1004
Unavailable
7
PIN-COTTER,1.6X15
550D1615
Unavailable
8
SPRING,CLUTCH RETURN
92081-1058
Unavailable
9
ROD,PUSH,CLUTCH
13116-1017
Unavailable
10
BALL-STEEL,3/8"
600A1200
Unavailable
11
CLUTCH-ASSY
13081-1019
Unavailable
11
CLUTCH-ASSY
13081-1019
Unavailable
12
CIRCLIP, 38MM
480J3800
Unavailable
13
PIN, DOWELL, 6X6
610A0606
Unavailable
14
GEAR,OIL PUMP,34T
59051-1001
Unavailable
15
HOUSING,CLUTCH
13095-1008
Unavailable
16
WASHER,CLUTCH THRUST
92022-288
Unavailable
17
HUB,CLUTCH
13087-040
Unavailable
18
PLATE,FRICTION
13088-1001
Unavailable
19
PLATE-CLUTCH,T=2.0
13089-026
Unavailable
20
PUSHER,CLTCH SPRG PLT
13116-029
Unavailable
21
PLATE,CLUTCH SPRING
13187-1003
Unavailable
22
SPRING,CLUTCH
92081-1033
Unavailable
23
BOLT,FLANGED,6X18
92001-1066
Unavailable
24
SPROCKET,PRIMARY
13121-030
Unavailable
25
CIRCLIP-TYPE-C,30MM
480J3000
Unavailable
26
CHAIN,PRIMARY DRIVE
13122-005
Unavailable
