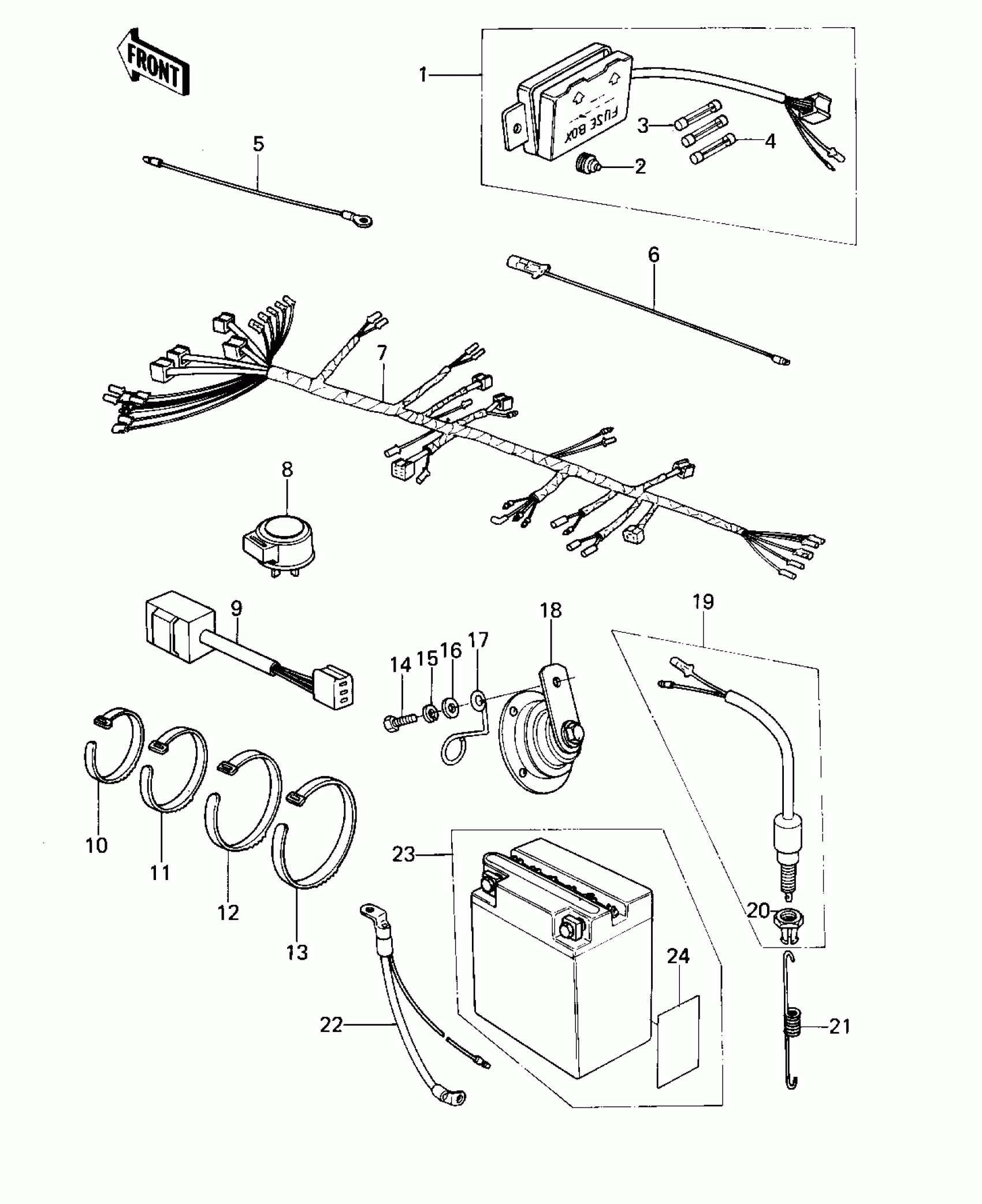

Kawasaki KZ400-B2 CHASSIS ELECTRICAL EQUIPMENT Diagram
#
Description
Price
1
FUSE-ASSY
26004-035
Unavailable
2
DAMPER,FUSE
92075-279
Unavailable
3
FUSE,20A,L=25
26006-005
Unavailable
4
FUSE,10A,L=25
26006-003
Unavailable
5
LEAD WIRE,SIGNAL LAMP
26011-063
Unavailable
6
WIRE,LEAD,REAR SIGNAL
26011-1021
Unavailable
7
HARNESS,MAIN
26001-1128
Unavailable
8
RELAY-ASSY,TURN SIGNAL
27002-011
Unavailable
9
SWITCH,BK LIGHT IND
28019-002
Unavailable
10
BAND,L=95
92072-067
Unavailable
11
BAND,L=123
92072-030
Unavailable
12
BAND,L=149
92072-031
Unavailable
13
BAND,L=218
92072-032
Unavailable
14
BOLT,8X20
115G0820
Unavailable
15
WASHER SPRING 8MM
461F0800
Unavailable
16
WASHER PLAIN 8MM
410B0800
Unavailable
17
CLAMP,CABLE
92037-155
Unavailable
18
HORN
27003-1005
Unavailable
19
SWITCH,BRAKE LAMP
27010-025
Unavailable
20
NUT,BRAKE LAMP SWITCH
27037-001
Unavailable
21
SPRING,BRAKE LIGHT SW
27011-015
Unavailable
22
WIRE LEAD,BATTERY GRD
26011-1022
Unavailable
23
FB BAT FB12A-A
26012-1004
Unavailable
24
LABEL-WARNING,BATTERY
56040-1036
Unavailable
