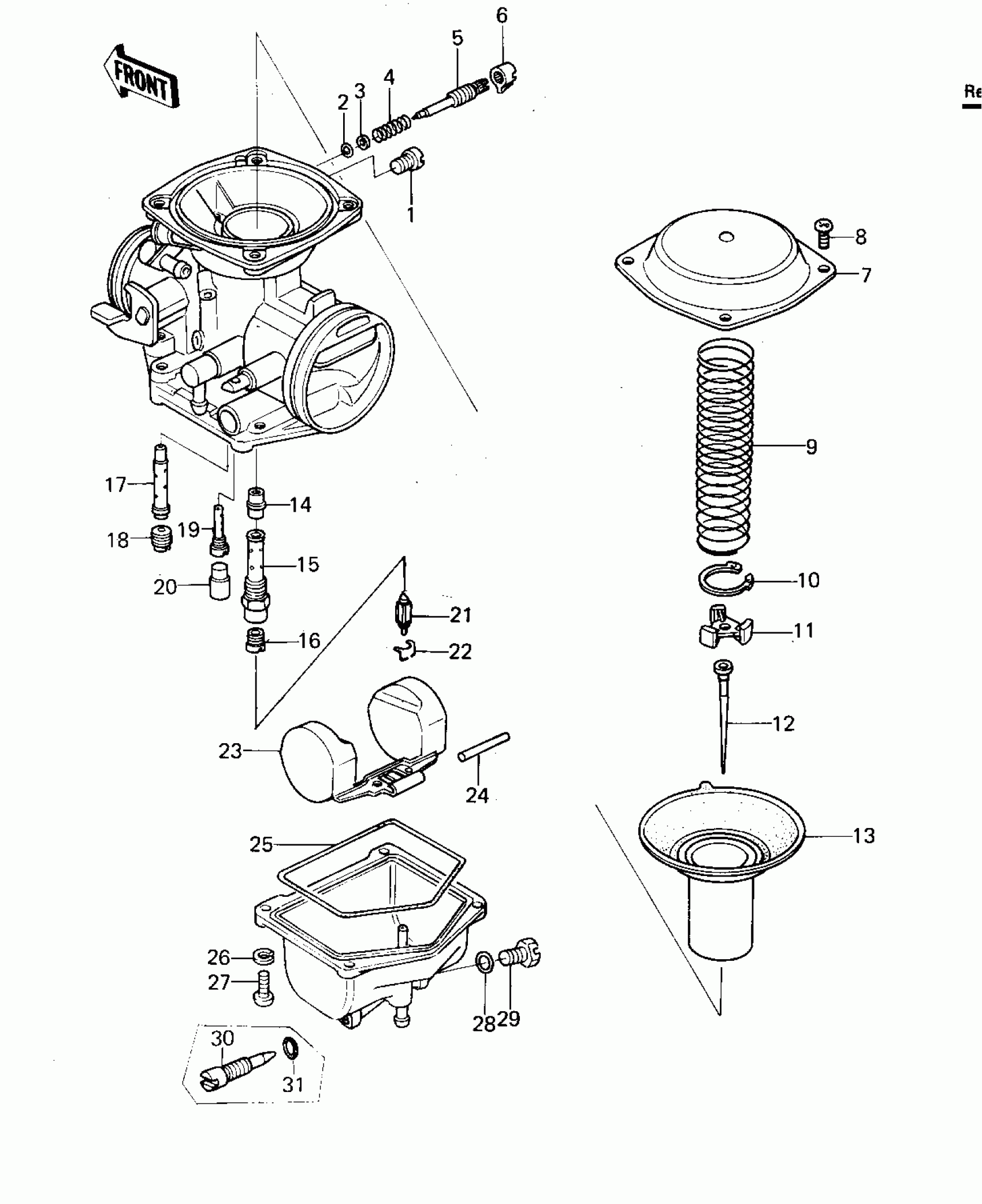

Kawasaki KZ400-B2 CARBURETOR PARTS Diagram
#
1
SCREW,PLUG
92009-1004
Unavailable
2
RING-O,PILOT ADJUST
92055-1002
Unavailable
3
WASHER,PLAIN
92022-1003
Unavailable
4
SPRING,PILOT ADJUST SCREW
92081-1002
Unavailable
5
SCREW,PILOT ADJUST
16014-1001
Unavailable
5
SCREW,PILOT ADJUST
16014-1009
Unavailable
6
CAP,JET NEEDLE
11012-3727
Unavailable
7
TOP-CHAMBER,MIXING
16005-1001
Unavailable
8
SCREW PAN HEAD 4X8
220B0408
Unavailable
9
SPRING
92081-1001
Unavailable
10
CLAMP
92037-1005
Unavailable
11
SEAT-SPRING,THROTTLE VALVE
16007-1001
Unavailable
12
JET NEEDLE,003303
16009-1010
Unavailable
12
JET NEEDLE,#003001
16009-1027
Unavailable
13
VACUUM,VALVE
16126-1042
Unavailable
14
NEEDLE JET
16017-1001
Unavailable
15
HOLDER,NEEDLE JET
13091-1019
Unavailable
15
HOLDER,N.J,N413-02D00
13091-1047
Unavailable
16
JET-MAIN,#90
92063-1003
Unavailable
16
JET-MAIN,#85
92063-1023
Unavailable
16
JET-MAIN,#88
92063-1024
Unavailable
16
JET-MAIN,#92
92063-1004
Unavailable
16
JET-MAIN,#95
92063-1001
Unavailable
17
NOZZLE,MAIN
92062-1001
Unavailable
18
MAINJET,PRIMARY,#70
92063-1002
Unavailable
19
JET-PILOT,#35
92064-1001
Unavailable
20
CAP,RUBBER
16012-1001
Unavailable
21
VALVE-FLOAT
16030-1007
Unavailable
22
CLAMP,FLOAT VALVE
16044-007
Unavailable
23
FLOAT
16031-1001
Unavailable
24
PIN,FLOAT
92043-1002
Unavailable
25
O RING,FLOAT CHAMBER
16019-024
Unavailable
26
WASHER SPRING 4MM
461F0400
Unavailable
27
SCREW-PAN-CRSOSS,4X1
220B0412
Unavailable
28
"O" RING,DRAIN SCREW
92055-1003
Unavailable
29
SCREW,DRAIN
92009-1003
Unavailable
30
SCREW,DRAIN,M6X1.0
92009-1095
Unavailable
31
RING-O
92055-1053
Unavailable
