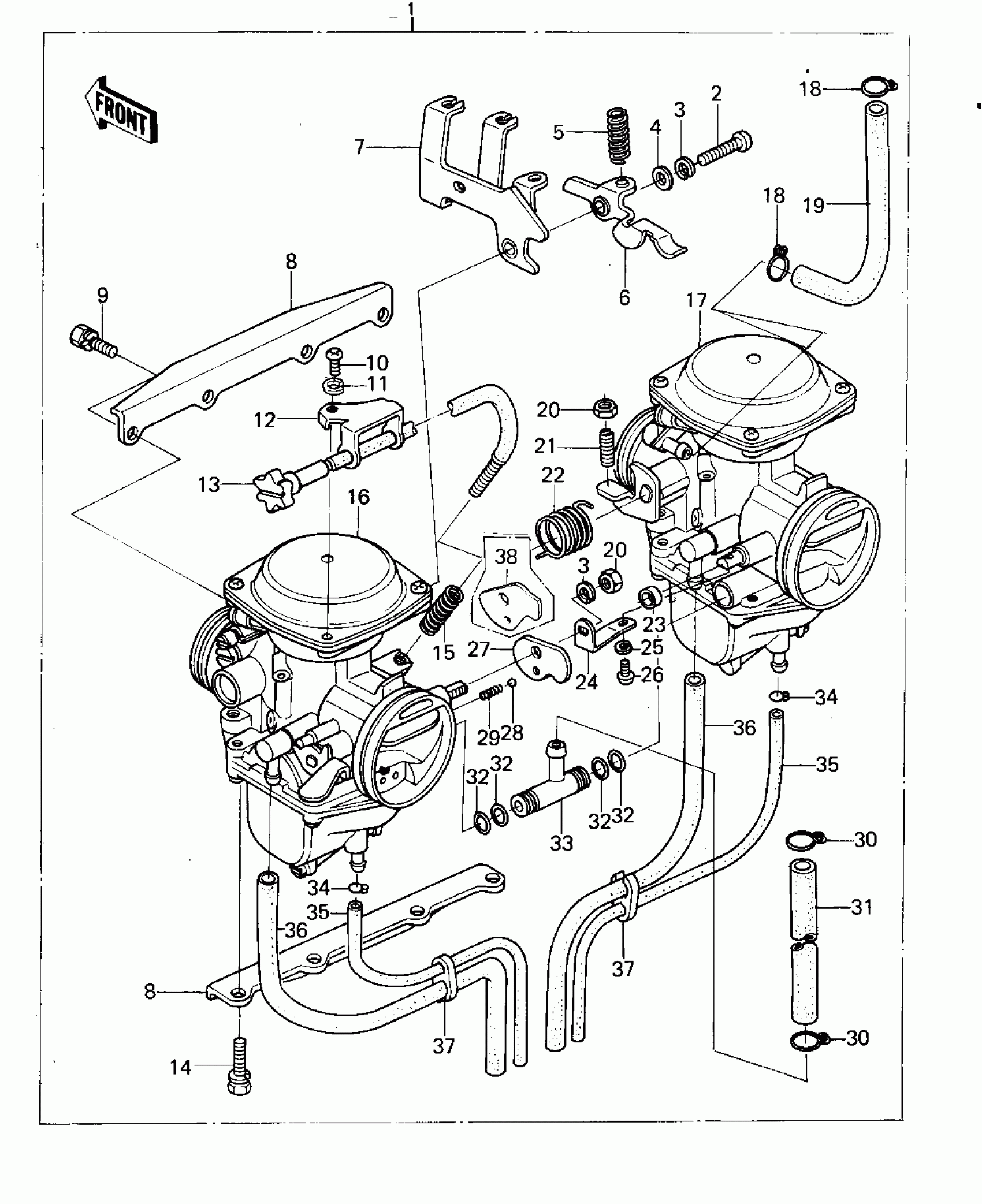

Kawasaki KZ400-B2 CARBURETOR ASSY Diagram
#
1
CARBURETOR ASSY
16001-1334
Unavailable
1
CARBURETOR ASSY
16001-1112
Unavailable
1
CARBURETOR ASSY
16001-1334
Unavailable
2
SCREW-PAN-CROS,5X25
220B0525
Unavailable
3
WASHER SPRING 5MM
461F0500
Unavailable
4
WASHER,PLAIN
16039-027
Unavailable
5
SPRING
92081-1003
Unavailable
6
ROCKER ARM
11034-1009
Unavailable
7
BRACKET,THR.CBL
11034-1008
Unavailable
8
PLATE,STAY
16065-1012
Unavailable
9
SCREW,6X16
92009-1129
Unavailable
10
SCREW PAN HEAD 4X10
220B0410
Unavailable
11
WASHER SPRING 4MM
461F0400
Unavailable
12
BRACKET,STOP SCREW
11034-1202
Unavailable
13
SCREW-THROTTLE STOP
16021-1007
Unavailable
14
BOLT,6X22
92009-1006
Unavailable
15
SPRING,STOP SCREW
92081-1062
Unavailable
16
CARBURETOR,L.H.
16001-1064
Unavailable
16
CARBURETOR,L.H.
16001-1117
Unavailable
16
CARBURETOR,L.H.
16001-1110
Unavailable
17
CARBURETOR,R.H.
16001-1065
Unavailable
17
CARBURETOR,R.H.
16001-1118
Unavailable
17
CARBURETOR,R.H.
16001-1111
Unavailable
18
CLAMP,FUEL HOSE
92037-1040
Unavailable
19
TUBE,5.3X10.5X200
92059-1001
Unavailable
20
NUT-HEX
311B0500
Unavailable
21
SCREW,SLOTTED
16021-1002
Unavailable
22
SPRING
92081-1063
Unavailable
23
COLLAR,CHOKE LEVER
16073-1001
Unavailable
24
BRACKET,CHOKE LEVER
11034-1203
Unavailable
25
WASHER SPRING 3MM
461F0300
Unavailable
26
SCREW-PAN-CROS,3X6
220B0306
Unavailable
27
CAM,CHOKE LINK
13169-1015
Unavailable
28
BALL,STEEL,1/8"
600A0400
Unavailable
29
SPRING
92081-1004
Unavailable
30
CLAMP,FUEL TUBE
92037-1075
Unavailable
31
TUBE,FUEL,7.3X12.5X200
92059-1029
Unavailable
32
RING-O
92055-1004
Unavailable
33
FITTING,FUEL TUBE
92005-1033
Unavailable
34
CLAMP,TUBE
92037-1142
Unavailable
35
TUBE,3.5X6.5X330
92059-111
Unavailable
36
TUBE,4.5X8X380
92059-110
Unavailable
37
CLAMP,OVERFLOW
92037-1067
Unavailable
38
PLATE,CHOKE LINK
13169-1151
Unavailable
