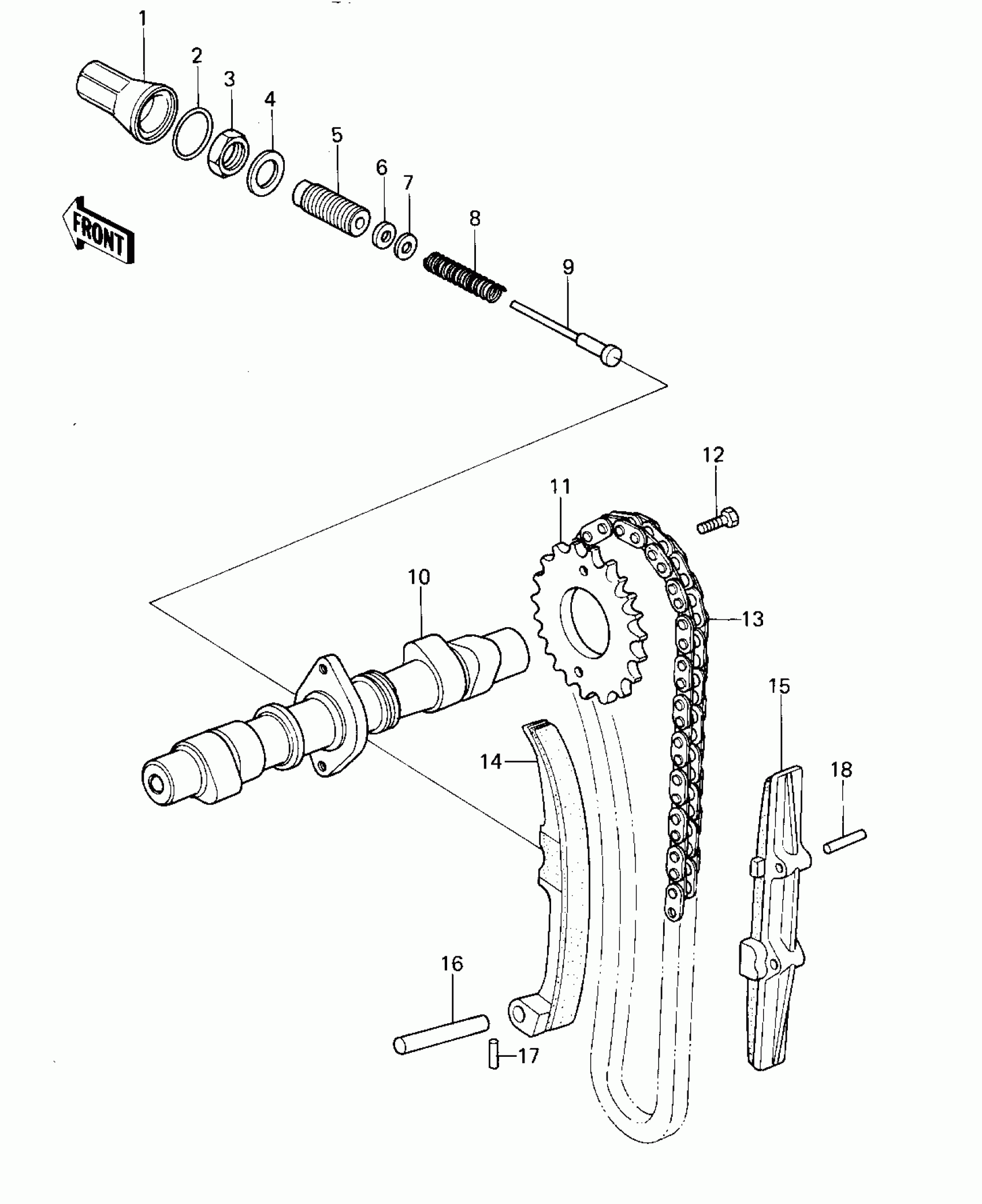

Kawasaki KZ400-B2 CAMSHAFT/CHAIN/TENSIONER Diagram

#

Description

Price

1

CAP,CAM CHAIN TENSION

12064-005

Unavailable

2

"0" RING,22MM

92055-018

Unavailable

3

NUT,LOCK

92016-054

Unavailable

4

WASHER,14X20X2

92022-1040

Unavailable

5

GUIDE,PUSH ROD

92001-1271

Unavailable

6

WASHER,PLAIN

92022-1030

Unavailable

7

WASHER,PLAIN

92022-1029

Unavailable

8

SPRING,CHAIN TENSINR

92081-131

Unavailable

9

ROD,PUSH

13116-1003

Unavailable

10

CAMSHAFT,VALVE

12044-5001

Unavailable

11

SPROCKET,CAM,34T

12046-1002

Unavailable

12

BOLT,FLANGED,6X11

92003-208

Unavailable

13

CHAIN CAM

21070-004

Unavailable

14

GUIDE,CAM CHAIN

12053-1001

Unavailable

15

GUIDE,CHAIN,REAR

12053-1042

Unavailable

16

SHAFT,CHAIN GUIDE

39115-1001

Unavailable

17

PIN,DOWEL,3X25

551A0325

Unavailable

18

PIN,DOWEL,5X32

551A0532

Unavailable
