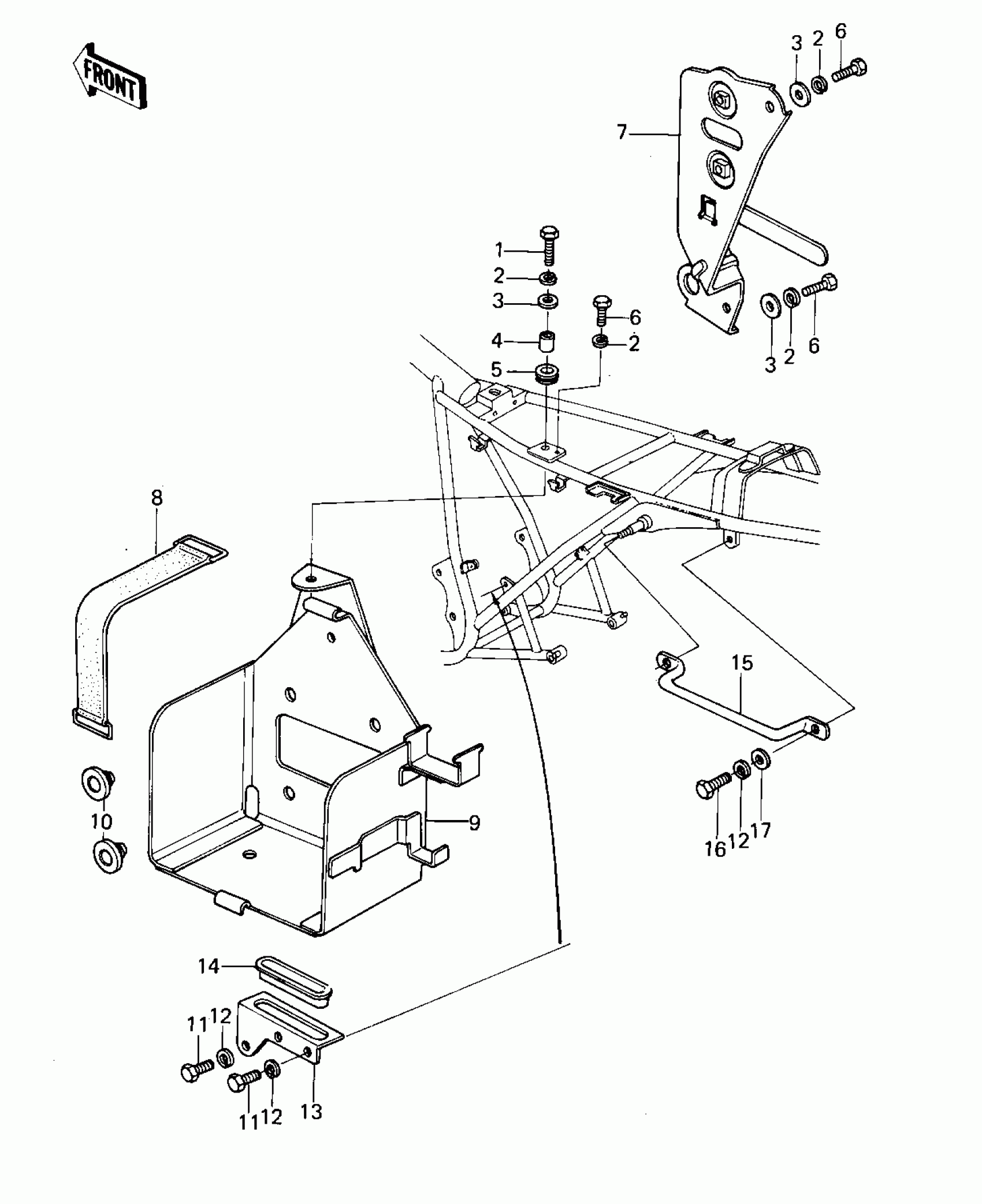

Kawasaki KZ400-B2 BATTERY CASE/ELECTRO BRACKET Diagram

#

Description

Price

1

BOLT 6X22

112B0622

Unavailable

2

WASHER SPRING 6MM

461F0600

Unavailable

3

WASHER,6.5X20X1.6

92022-125

Unavailable

4

COLLAR,6.8X10X8.5

92027-129

Unavailable

5

DAMPER RUBBER

92075-076

Unavailable

6

BOLT-UPSET 6X14

112B0614

Unavailable

7

BRACKET,ELECTRIC

11034-1071

Unavailable

8

BAND,L=142.1

92072-006

Unavailable

9

CASE,BATTERY

32097-041

Unavailable

10

DAMPER,RUBBER

92075-078

Unavailable

11

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

12

WASHER SPRING 8MM

461F0800

Unavailable

13

BRACKET,BASE

32129-008

Unavailable

14

DAMPER

92075-280

Unavailable

15

GRIP FRAME

32109-009

Unavailable

16

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

17

WASHER PLAIN 8MM

410B0800

Unavailable
