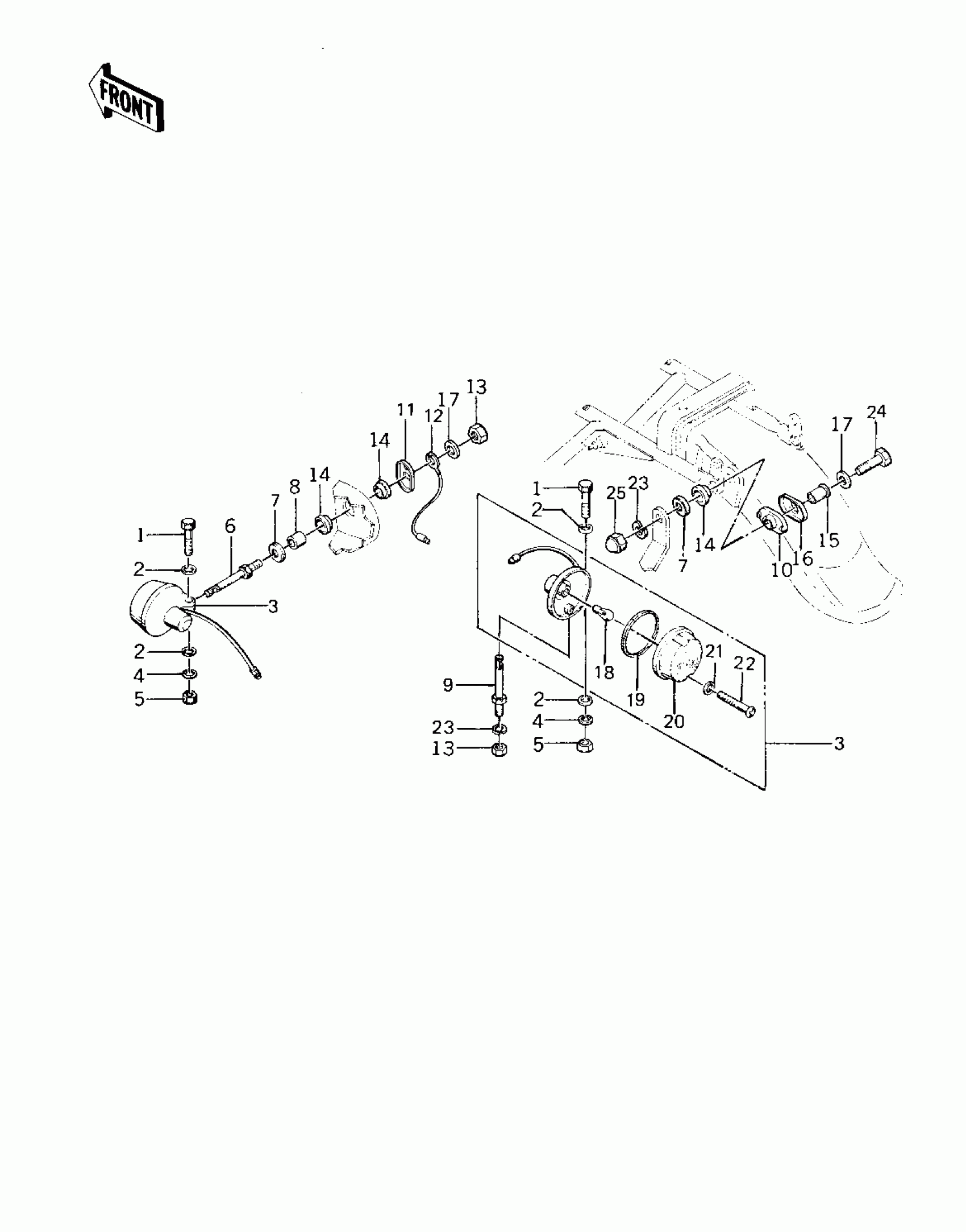

Kawasaki KZ400-A2 TURN SIGNALS Diagram
#
Description
Price
1
BOLT-UPSET
112G0630
Unavailable
2
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
3
LAMP-TURN SIGNAL
23040-029
Unavailable
4
WASHER SPRING 6MM
461F0600
Unavailable
5
NUT 6MM
311B0600
Unavailable
6
BKT TURN SIGNL LIGHT
23051-049
Unavailable
7
CAP,SIGNAL LIGHT STAY
92102-015
Unavailable
8
COLLAR
92027-281
Unavailable
9
BRACKET,TURN SIG LAMP
23051-054
Unavailable
10
DAMPER RUBBER,SIGNAL
92075-238
Unavailable
11
CAP,FR SIG LIGHT STAY
92102-014
Unavailable
12
WIRE TURN SIGNAL LEAD
26011-081
Unavailable
13
NUT-HEX-FINE
315B1200
Unavailable
14
DAMPER RUBBER,SIGNAL
92075-241
Unavailable
15
COLLAR,RR SIG LIGHT
92027-225
Unavailable
16
CAP,RR SIG LIGHT STAY
92102-013
Unavailable
17
WASHER PLAIN 12MM
411B1200
Unavailable
18
BULB,12V 32CP(23W)
92069-055
Unavailable
19
GASKET,TURN SIGNAL LAMP
23050-002
Unavailable
20
LENS-SIGNAL LAMP,"6.1445"MARK
23048-1024
Unavailable
20
LENS-SIGNAL LAMP,"6.1445"MARK
23048-1024
Unavailable
21
WASHER,PLAIN,4MM
23058-002
Unavailable
22
SCREW-PAN HEAD,4X35
220E0435A
Unavailable
23
WASHER-SPRING,12MM
461F1200
Unavailable
24
BOLT,HEX HEAD,12X45
113B1245A
Unavailable
25
NUT,CAP,12MM
92020-014
Unavailable
