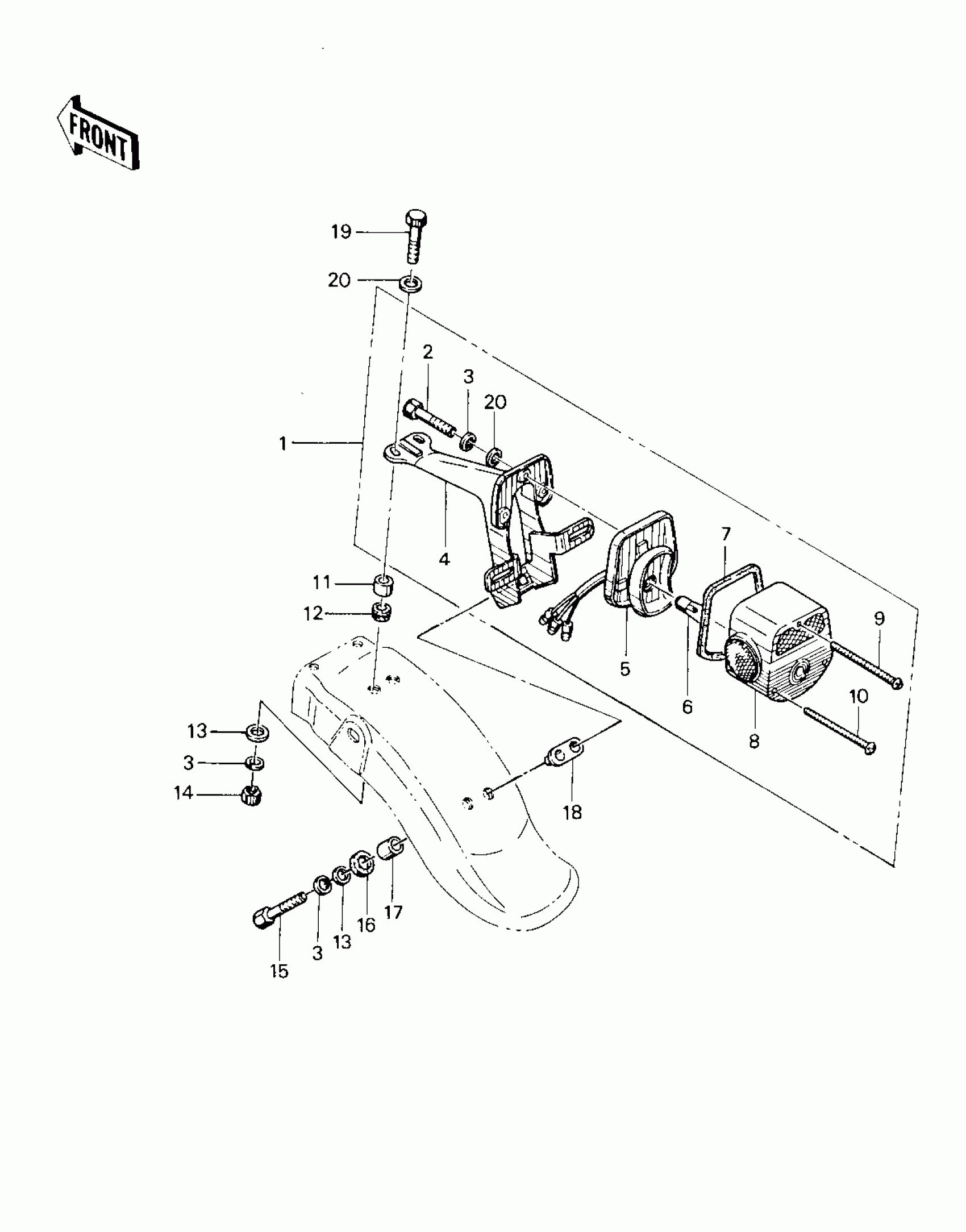

Kawasaki KZ400-A2 TAILLIGHT Diagram
#
Description
Price
1
LIGHT ASSY TAIL BLACK
23024-059-10
Unavailable
2
BOLT-UPSET 6X14
112B0614
Unavailable
3
WASHER SPRING 6MM
461F0600
Unavailable
4
BKT LICENSE PLT BLACK
23036-041-10
Unavailable
5
BODY-COMP-TAIL LAMP
23027-1019
Unavailable
5
BODY-COMP-TAIL LAMP
23027-1019
Unavailable
6
BULB,12V 27/8W
92069-059
Unavailable
7
GASKET,TAIL LAMP LENS
23028-019
Unavailable
8
LENS,TAIL LAMP
23026-028
Unavailable
9
SCREW
220R0455
Unavailable
10
SCREW PAN HEAD 4X50
220E0450
Unavailable
11
COLLAR,6.8X10X8.5
92027-129
Unavailable
12
DAMPER RUBBER
92075-076
Unavailable
13
WASHER,6.5X20X1.6
92022-125
Unavailable
14
NUT 6MM
311B0600
Unavailable
15
BOLT-UPSET
112G0625
Unavailable
16
DAMPER,FENDER
92075-121
Unavailable
17
COLLAR,6.8X10X12
92027-162
Unavailable
18
DAMPER RUBBER,FENDER
92075-273
Unavailable
19
BOLT 6X22
112B0622
Unavailable
20
WASHER PLAIN 6MM
411B0600
Unavailable
