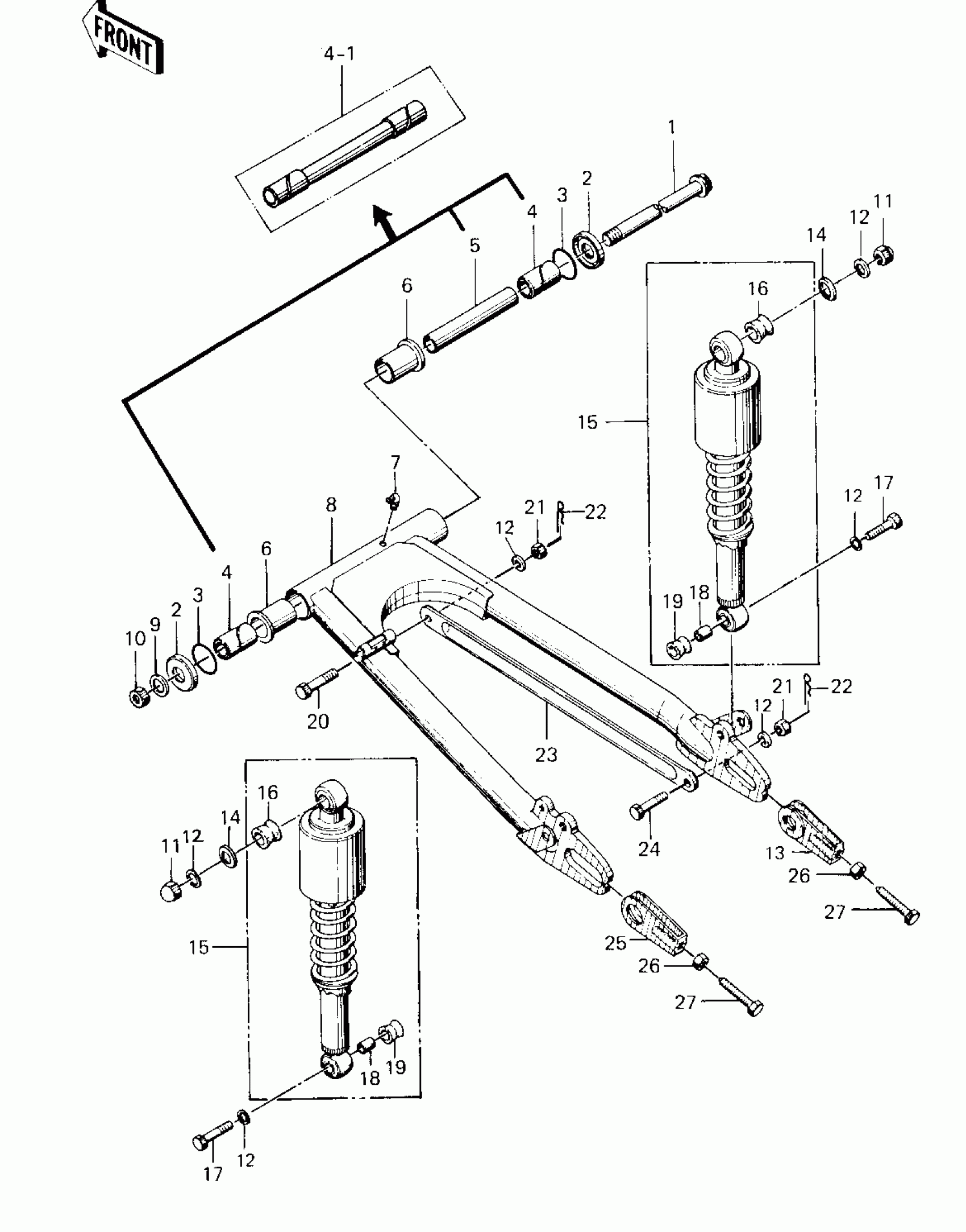

Kawasaki KZ400-A2 SWING ARM/SHOCK ABSORBERS Diagram
#
Description
Price
1
SHAFT,SWING ARM PIVOT
33032-046
Unavailable
2
CAP-SWING ARM
33035-004
Unavailable
3
"0" RING,30MM
671B2530
Unavailable
4
SLEEVE-SWING ARM,SHRT
33034-013
Unavailable
4-1
SLEEVE, SWING ARM
33034-028
Unavailable
5
COLLAR,SWING ARM
33036-006
Unavailable
6
BUSHING-SWING ARM
33033-009
Unavailable
7
GREASE NIPPLE
92005-002
Unavailable
8
ARM,SWING
33001-073
Unavailable
9
WASHER BRAKE PEDAL
92022-085
Unavailable
10
NUT-LOCK,14MM
92019-011
Unavailable
11
NUT,CAP,10MM
92020-003
Unavailable
12
WASHER SPRING 10MM
461F1000
Unavailable
13
ADJUSTER-CHAIN
33040-043
Unavailable
14
WASHER,10.5X26X2.3
92022-044
Unavailable
14
WASHER,10X22X3.2
92022-176
Unavailable
15
SHOCK ABSBR RR
45014-119
Unavailable
16
DAMPER,SHOCKABSORBER
45017-015
Unavailable
17
BOLT HEX HEAD 10X35
113N1035
Unavailable
18
COLLAR,SHOCKABSORBER
45016-008
Unavailable
19
DAMPER,SHOCKABSORBER
45017-012
Unavailable
20
BOLT,10X29
92003-096
Unavailable
21
NUT-HEX-FINE,10MM
315B1000
Unavailable
22
PIN-SNAP,8MM
554A0800
Unavailable
23
TORQUE LINK REAR BRK
43007-016
Unavailable
24
BOLT,10X35
92003-034
Unavailable
25
ADJUSTER,CHAIN,L.H
33040-062
Unavailable
26
NUT 8MM
312B0800
Unavailable
27
BOLT,8X50
92001-1399
Unavailable
