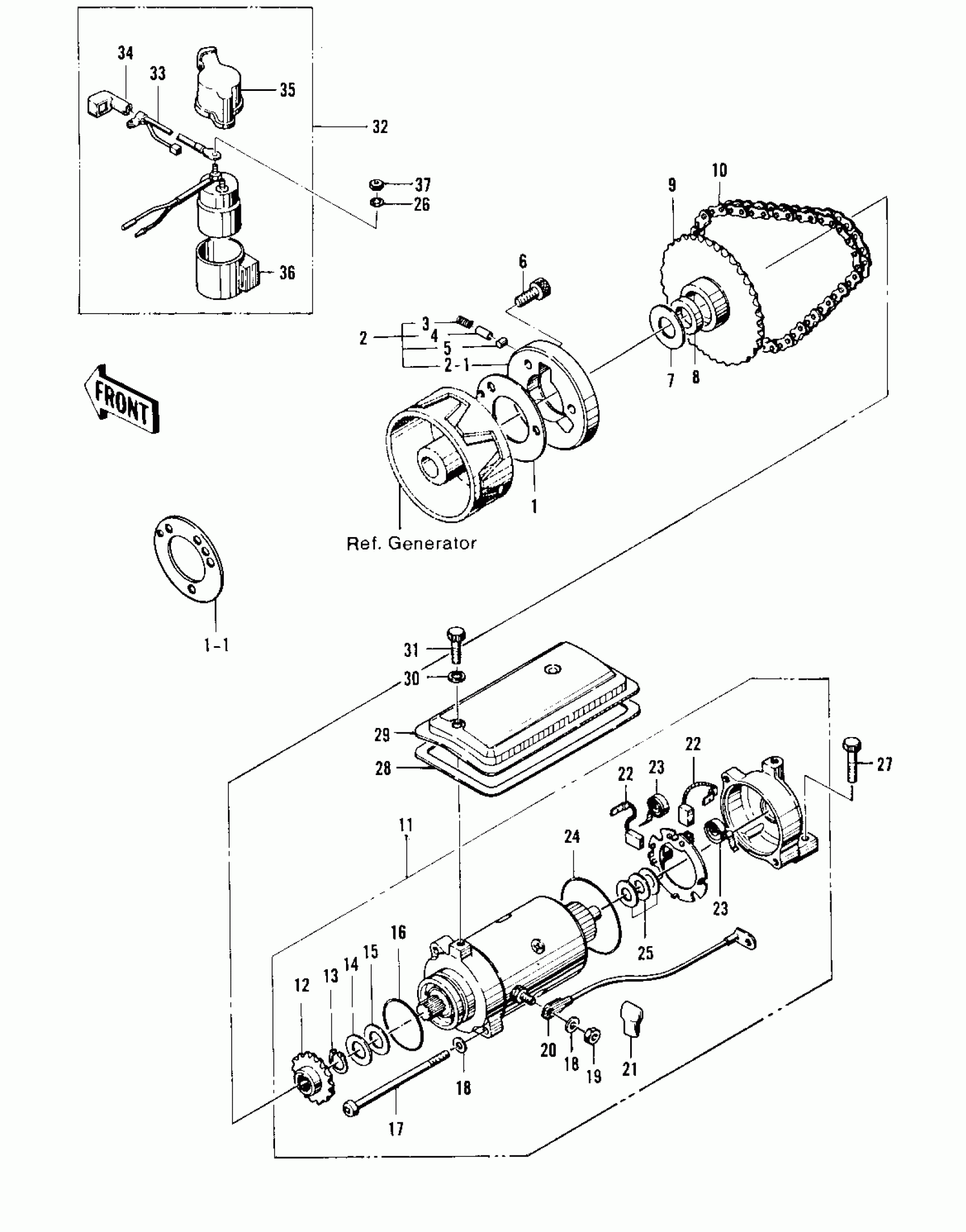

Kawasaki KZ400-A2 STARTER MOTOR/STARTER CLUTCH Diagram
#
1
WASHER,FREE WHEEL
92026-082
Unavailable
1-1
PLATE,CLUTCH STARTER
92026-112
Unavailable
2
CLUTCH ASSY,STARTER
13193-1001
Unavailable
2-1
CLUTCH ASSY,STARTER
13193-1001
Unavailable
3
SPRING
92081-110
Unavailable
4
PIN
92043-087
Unavailable
5
ROLLER,15X13
92122-004
Unavailable
6
BOLT-SOCKET,8X16
120P0816
Unavailable
7
WASHER,THRUST
92026-100
Unavailable
8
OIL SEAL
92050-066
Unavailable
9
GEAR STARTER CLUTCH
21170-001
Unavailable
10
CHAIN,DYNAMO
92057-1009
Unavailable
10
CHAIN,DYNAMO
92057-1009
Unavailable
11
MOTOR ASSY,STARTER
21163-1011
Unavailable
11
MOTOR ASSY,STARTER
21163-1011
Unavailable
12
SPROCKET-ASSY
21053-002
Unavailable
13
CIRCLIP-TYPE-C,14MM
480J1400
Unavailable
14
WASHER,PLAIN,14MM
21025-008
Unavailable
15
WASHER PLAIN 14MM
21025-009
Unavailable
16
RING-O,42.8MM
21027-005
Unavailable
17
SCREW PAN HEAD 6X110
220B06110
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
NUT 6MM
312B0600
Unavailable
20
WIRE STRTER MOT LEAD
26010-035
Unavailable
21
CAP,STARTING MOTOR
21017-020
Unavailable
22
BRUSH CARBON
21039-004
Unavailable
23
SPRING CARBON BRUSH
21040-004
Unavailable
24
"0" RING,62MM
21027-006
Unavailable
25
WASHER,PLAIN,9MM
21025-007
Unavailable
26
WASHER SPRING 6MM
461F0600
Unavailable
27
BOLT-UPSET
112G0625
Unavailable
28
GASKET START MOT COV
21166-002
Unavailable
29
COVER STARTER MOTOR
21165-002
Unavailable
30
WASHER,PLAIN,6MM
410D0600
Unavailable
31
BOLT-FLANGED-SMALL,6X12
132E0612
Unavailable
32
SWITCH ASSY,MAGNETIC
21164-006
Unavailable
33
WIRE,LEAD,MAG SWITCH
26011-1027
Unavailable
34
CAP,MAG SWTCH TERMNL
21017-021
Unavailable
35
CAP,MAGNETIC SWITCH
21141-004
Unavailable
36
DAMPER,MAGNETIC SWITCH
21064-002
Unavailable
37
NUT 6MM
311B0600
Unavailable
