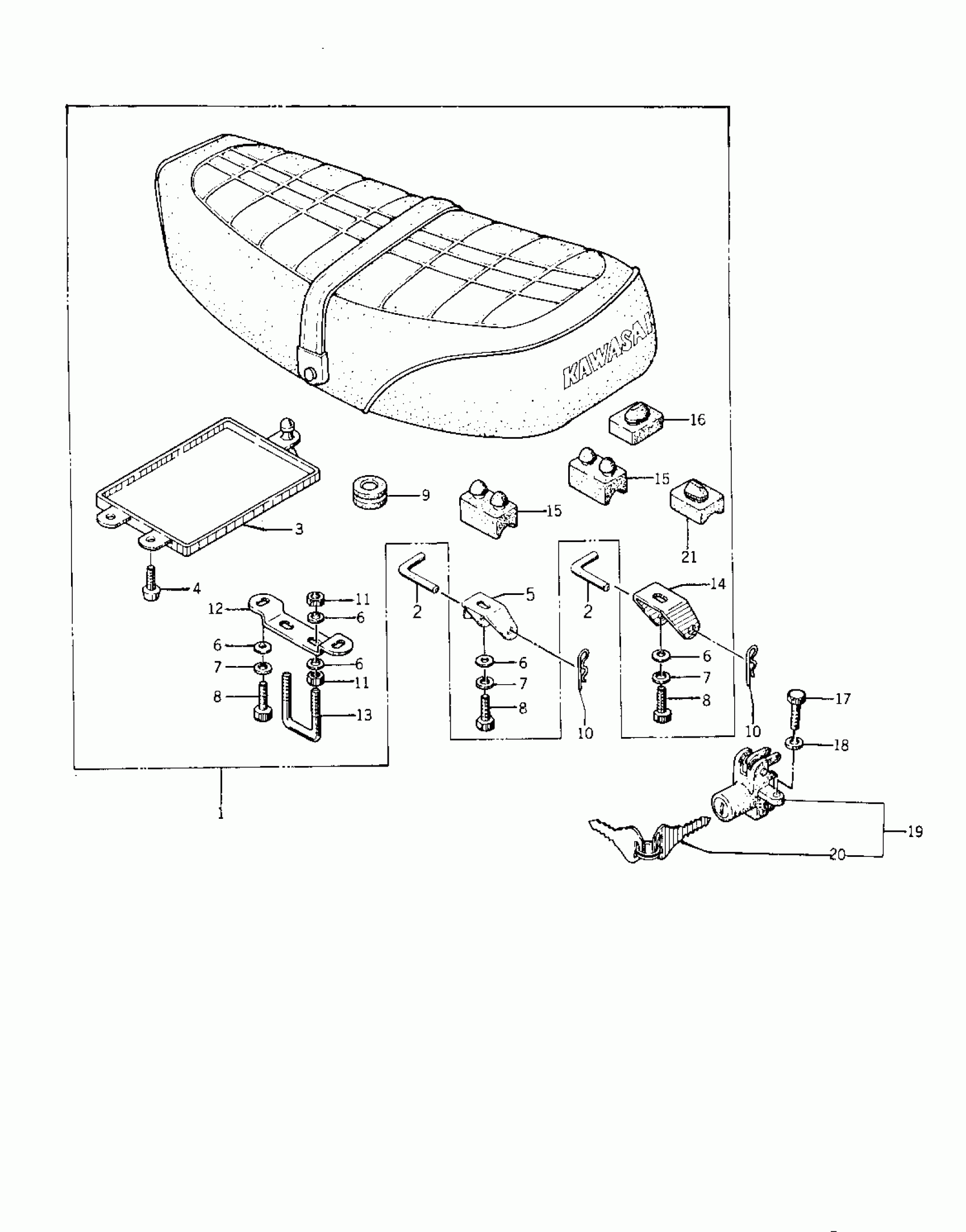

Kawasaki KZ400-A2 SEAT Diagram
#
Description
Price
1
SEAT-ASSY,DUAL
53001-133
Unavailable
2
PIN,SEAT PIVOT
92043-1064
Unavailable
2
PIN,SEAT PIVOT
92043-1064
Unavailable
3
CASE,MANUAL
32099-011
Unavailable
4
SCREW PAN HEAD 5X10
220B0510
Unavailable
5
HINGE,FRONT
53009-035
Unavailable
6
WASHER PLAIN 6MM
411B0600
Unavailable
7
WASHER SPRING 6MM
461F0600
Unavailable
8
BOLT-UPSET 6X14
112B0614
Unavailable
9
GROMMET
92071-056
Unavailable
10
COTTER PIN
92041-003
Unavailable
11
NUT 6MM
311B0600
Unavailable
12
BRACKET, SEAT CATCH
53058-001
Unavailable
13
HOOK,SEAT
53056-002
Unavailable
14
HINGE,REAR
53009-036
Unavailable
15
DAMPER RUBBER,SEAT
92075-139
Unavailable
16
DAMPER
92075-099
Unavailable
17
BOLT-UPSET,6X12
112G0612
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
LOCK ASSY,SEAT
27030-002
Unavailable
21
DAMPER RUBBER-SEAT
92075-156
Unavailable
