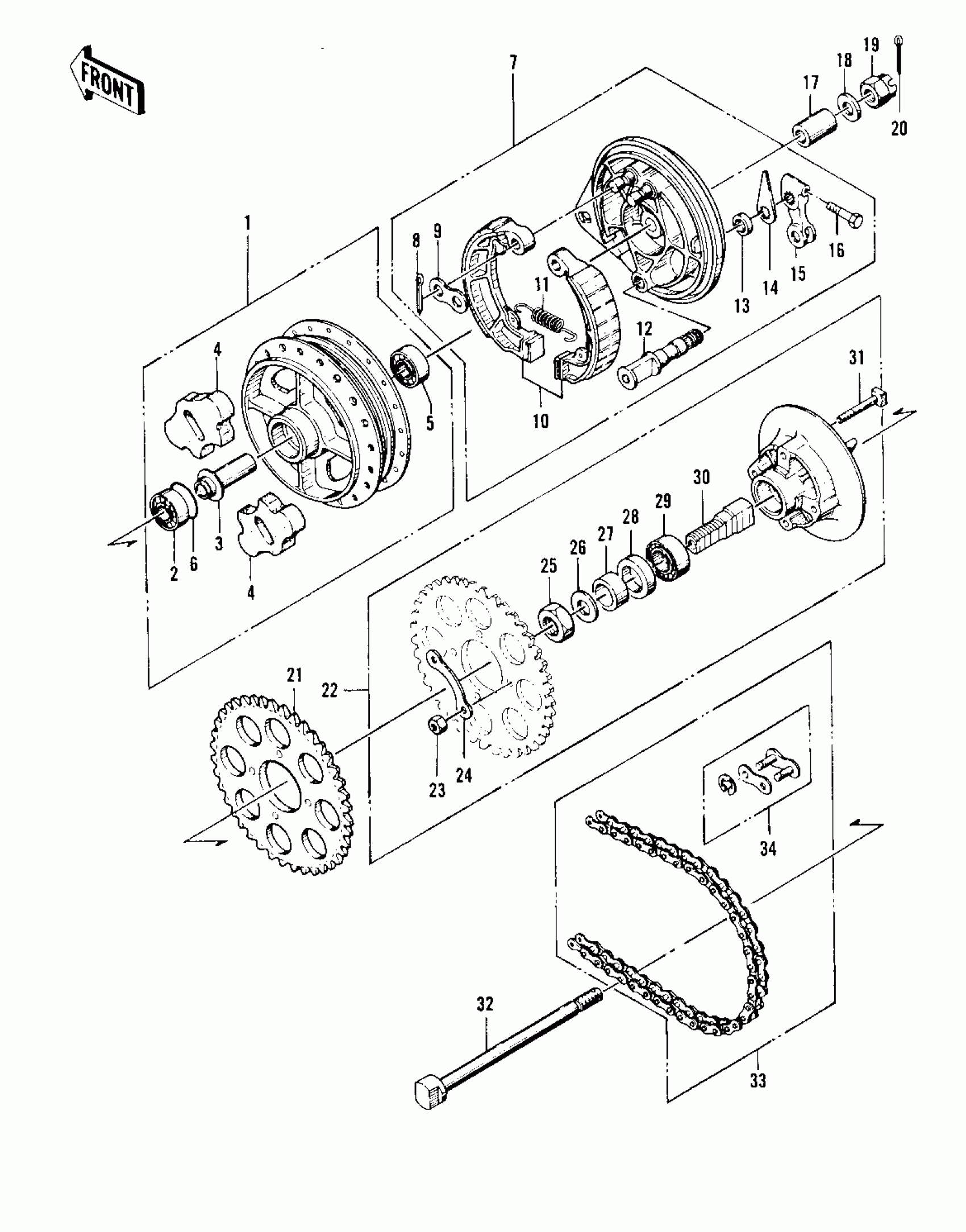

Kawasaki KZ400-A2 REAR HUB/BRAKE/CHAIN Diagram
#
Description
Price
1
DRUM ASY,RR BK,BUFF
42005-044-80
Unavailable
2
BEARING-BALL,#6303C3
601B6303
Unavailable
3
SPACER,RR HUB BEARING
42010-027
Unavailable
4
DAMPER REAR HUB SHOCK
42014-008
Unavailable
5
BEARING BALL #6303Z
601B6303Z
Unavailable
6
O RING,60MM
671B2560
Unavailable
7
PANEL-ASY,RR BRK,BUFF
42006-055-80
Unavailable
8
PIN COTTER 2.0X25
550D2025
Unavailable
9
WASHER,BRAKE SHOE
41045-007
Unavailable
10
SHOE REAR BRAKE
42019-003
Unavailable
11
SPRING BRAKE SHOE
41049-003
Unavailable
12
CAM SHAFT,REAR BRAKE
42026-024
Unavailable
13
SEAL,BRAKE CAM
41051-001
Unavailable
14
INDICATOR,RR BK SHOE
41085-016
Unavailable
15
LEVER,REAR BRAKE CAM
42029-036
Unavailable
16
BOLT-SMALL-UPSET 8X25
115G0825
Unavailable
17
COLLAR,REAR AXLE
42032-053
Unavailable
18
WASHER,17.3X32X3.2
42046-009
Unavailable
19
NUT,16MM
92015-055
Unavailable
20
PIN-COTTER,4.0X35
550D4035
Unavailable
21
REAR SPROCKET,45T
42041-145
Unavailable
22
COUPLING ASSY,RR HUB
42008-024
Unavailable
23
NUT-HEX-FINE,10MM
314B1000
Unavailable
24
WASHER,SPROCKET LOCK
92088-005
Unavailable
25
NUT SLEEVE
42045-006
Unavailable
26
WASHER,PLAIN,24MM
92022-293
Unavailable
27
COLLAR,RR HUB COUPLNG
42037-026
Unavailable
28
SEAL-OIL,TWC35527
92052-006
Unavailable
29
BEARING-BALL,#6205C3
601B6205
Unavailable
30
SLEEVE,RR HUB COUPLNG
42036-021
Unavailable
31
BOLT,HUB SPROCKET,10X55
92003-156
Unavailable
32
AXLE,REAR
42031-050
Unavailable
33
CHAIN,525X94 SH
92057-029
Unavailable
34
CHAIN JOINT 530
92058-008
Unavailable
