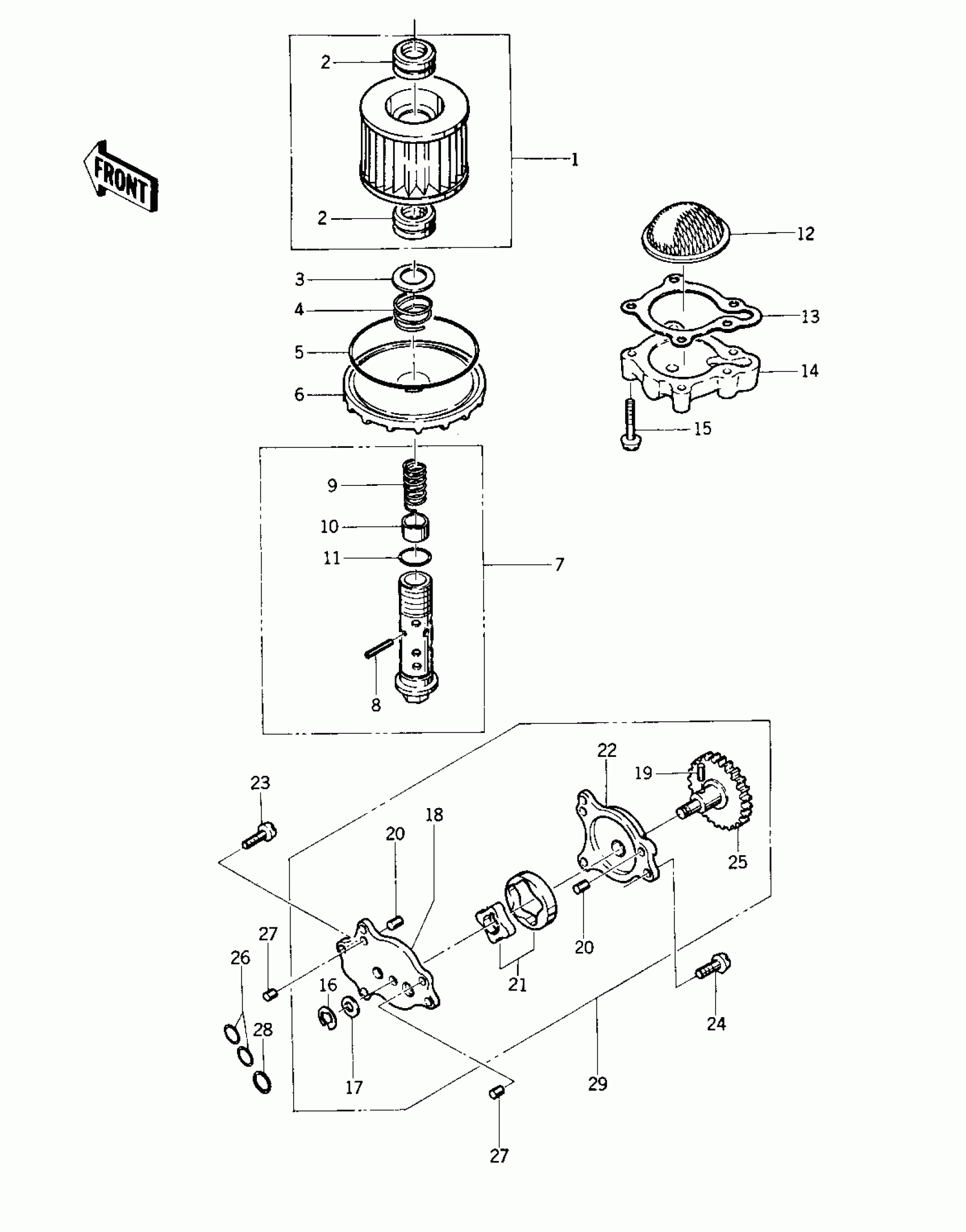

Kawasaki KZ400-A2 OIL PUMP/OIL FILTER Diagram
#
Description
Price
1
ELEMENT-OIL FILTER
16099-003
Unavailable
2
GROMMET,OIL FILTER
16135-010
Unavailable
3
WASHER,20.5X30X0.5,STEEL
92022-144
Unavailable
4
SPRING,OIL FILTER
92081-1018
Unavailable
4
SPRING,OIL FILTER
92081-1018
Unavailable
5
O RING,90MM
671B2590
Unavailable
6
COVER,OIL FILTER
16101-004
Unavailable
7
SLOW JET,#40
16158-001
Unavailable
7
VALVE,OIL FILTER
16126-1108
Unavailable
8
PIN,SPRING,2X20
92043-111
Unavailable
9
SPRING
92081-133
Unavailable
10
PISTON
92136-001
Unavailable
11
O RING,16MM
670B2016
Unavailable
12
FILTER,OIL
16111-003
Unavailable
13
GASKET,OIL FILTER COVER
11009-1874
Unavailable
14
COVER,OIL STRAINER
16101-003
Unavailable
15
SCREW PAN HEAD 6X30
220B0630
Unavailable
16
CIRCLIP 5MM
482K5000
Unavailable
17
WASHER,THRUST
92026-098
Unavailable
18
COVER,OIL PUMP
16142-002
Unavailable
19
PIN-DOWEL,4X8
551A0408
Unavailable
20
PIN-DOWEL,6X8
551A0608
Unavailable
21
ROTOR ASSY,OIL PUMP
16154-001
Unavailable
22
BODY,OIL PUMP
16141-002
Unavailable
23
SCREW PAN HEAD 6X18
220B0618
Unavailable
24
SCREW PAN HEAD 6X25
220B0625
Unavailable
25
GEAR,OIL PUMP DRIVEN
16085-023
Unavailable
26
"O" RING,11.5MM
92055-072
Unavailable
27
PIN-DOWEL,6X8
551A0608
Unavailable
28
RING-O,13.5MM
92055-073
Unavailable
29
OIL PUMP ASSY
16083-004
Unavailable
