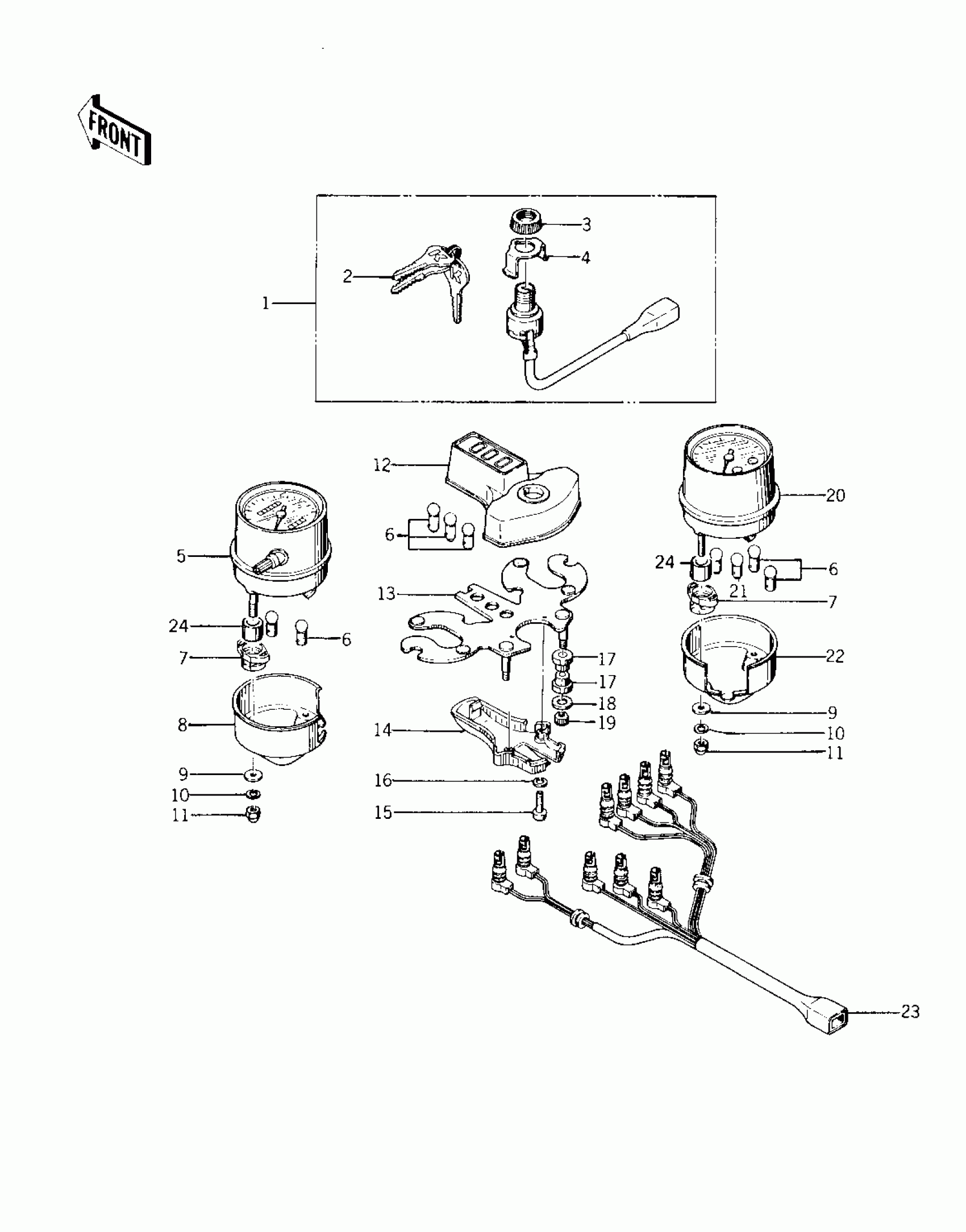

Kawasaki KZ400-A2 METERS/IGNITION SWITCH Diagram
#
Description
Price
1
SWITCH ASSY IGNITION
27005-075
Unavailable
2
KEY SET,#751
27008-064-51
Unavailable
2
KEY SET,#795
27008-064-95
Unavailable
2
KEY,BLANK
27008-1013
Unavailable
3
NUT,IGNITION SW LOCK
27007-004
Unavailable
4
HOLDER,IGNITION SW
27019-004
Unavailable
5
SPEEDOMETER ASSY,MPH
25005-126
Unavailable
6
BULB 12V 3W
92069-018
Unavailable
7
DAMPER RUBBER
92075-268
Unavailable
8
COVER SPEEDOMETER
25012-020
Unavailable
8
COVER,SPEEDOMETER
25012-026
Unavailable
9
WASHER-PLAIN,5MM
411B0500
Unavailable
10
WASHER SPRING 5MM
461F0500
Unavailable
11
NUT-CAP,5MM
322N0500
Unavailable
12
COVER INDICATOR LIGHT
25023-013
Unavailable
13
BRACKET METER
25008-037
Unavailable
14
COVER METER BRACKET
25024-005
Unavailable
15
SCREW-PAN-CRSOSS,4X1
220B0412
Unavailable
16
WASHER SPRING 4MM
461F0400
Unavailable
17
DAMPER RUBBER
92075-257
Unavailable
18
WASHER,PLAIN,30MM
92022-264
Unavailable
19
NUT 6MM
311B0600
Unavailable
20
TACHOMETER ASSY
25016-027
Unavailable
21
BULB 12V 1.5W
92069-017
Unavailable
22
COVER TACHOMETER
25012-019
Unavailable
22
COVER,TACHOMETER
25012-027
Unavailable
23
SOCKET SPEEDO&TACHO
25011-047
Unavailable
24
COLLAR
92027-244
Unavailable
