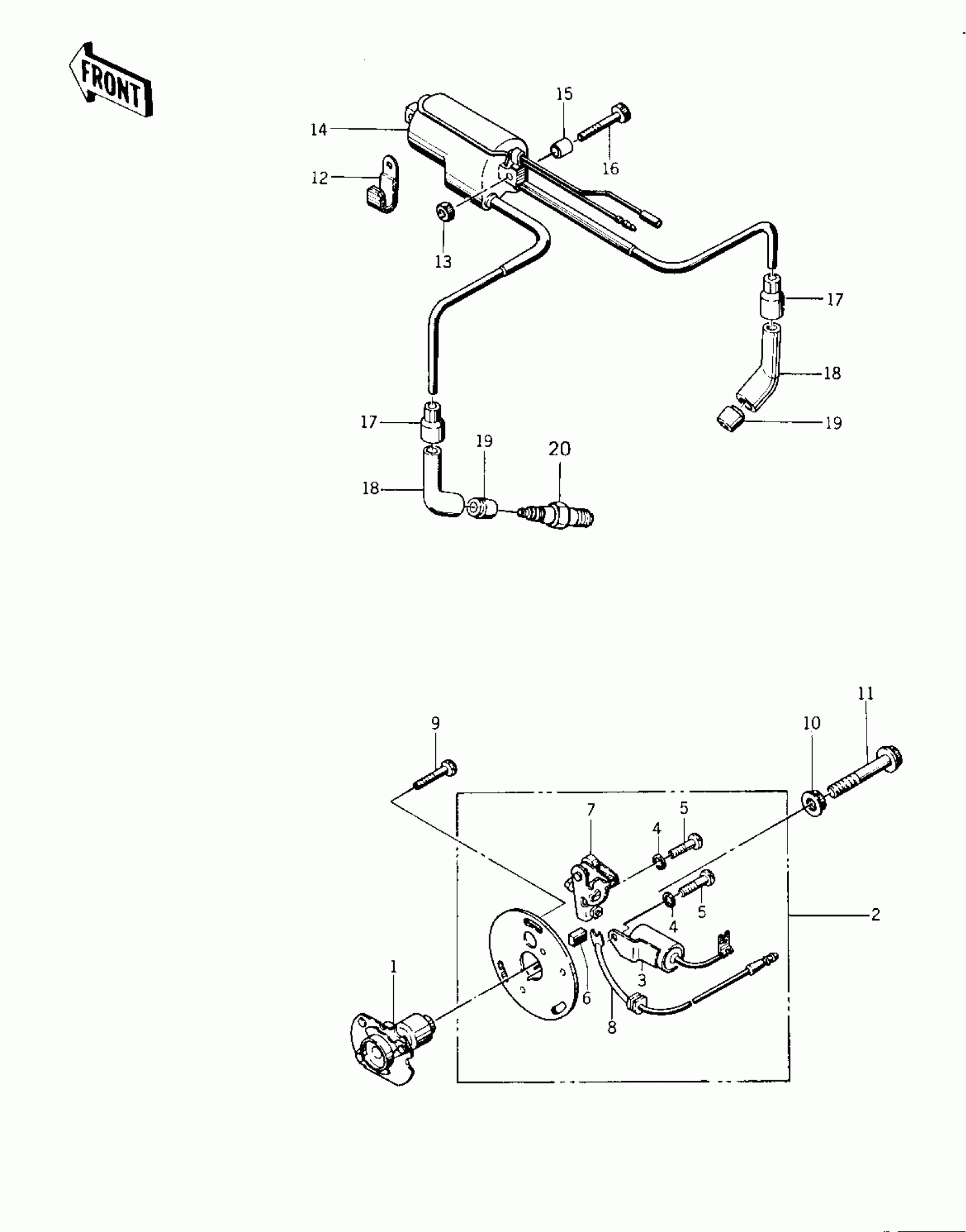

Kawasaki KZ400-A2 IGNITION Diagram

#

Description
Price

1

ADVANCER ASSY TIMING

21148-006

Unavailable

1

ADVANCER,AUTOMATIC TI

21148-014

Unavailable

2

BREAKER ASSY CONTACT

21135-009

Unavailable

3

CONDENSER

21013-034

Unavailable

4

WASHER SPRING 4MM

461F0400

Unavailable

5

SCREW PAN HEAD 4X6

220B0406

Unavailable

6

BRUSH,OIL

21019-005

Unavailable

7

BREAKER,CONTACT

21008-025

Unavailable

8

WIRING HARNESS BRKR

21029-029

Unavailable

9

SCREW-PAN-CROS

220B0512

Unavailable

10

WASHER,BREAKER GOVERNOR

92022-244

Unavailable

11

BOLT,8X63

92001-1397

Unavailable

11

BOLT,8X63

92001-1397

Unavailable

12

CLAMP,WIRING HARNESS

21126-008

Unavailable

12

CLAMP,WIRING HARNESS

21126-008

Unavailable

13

NUT 6MM

311B0600

Unavailable

14

COIL-IGNITION

21121-1174

Unavailable

14

COIL-IGNITION

21121-1174

Unavailable

15

COLLAR,IGNITION COIL

92027-276

Unavailable

15

COLLAR,IGNITION COIL

92027-276

Unavailable

16

BOLT, IGNITION COIL

92003-170

Unavailable

17

GROMMET,HIGH TENSION

21132-005

Unavailable

18

CAP-SPARK PLUG,RTFM20

21130-1007

Unavailable

19

GROMMET,PLUG CAP

21131-004

Unavailable

20

SPARK PLUG B8ES

B8ES

Unavailable

20

SPARK PLUG W24ES-U

W24ESU

Unavailable
