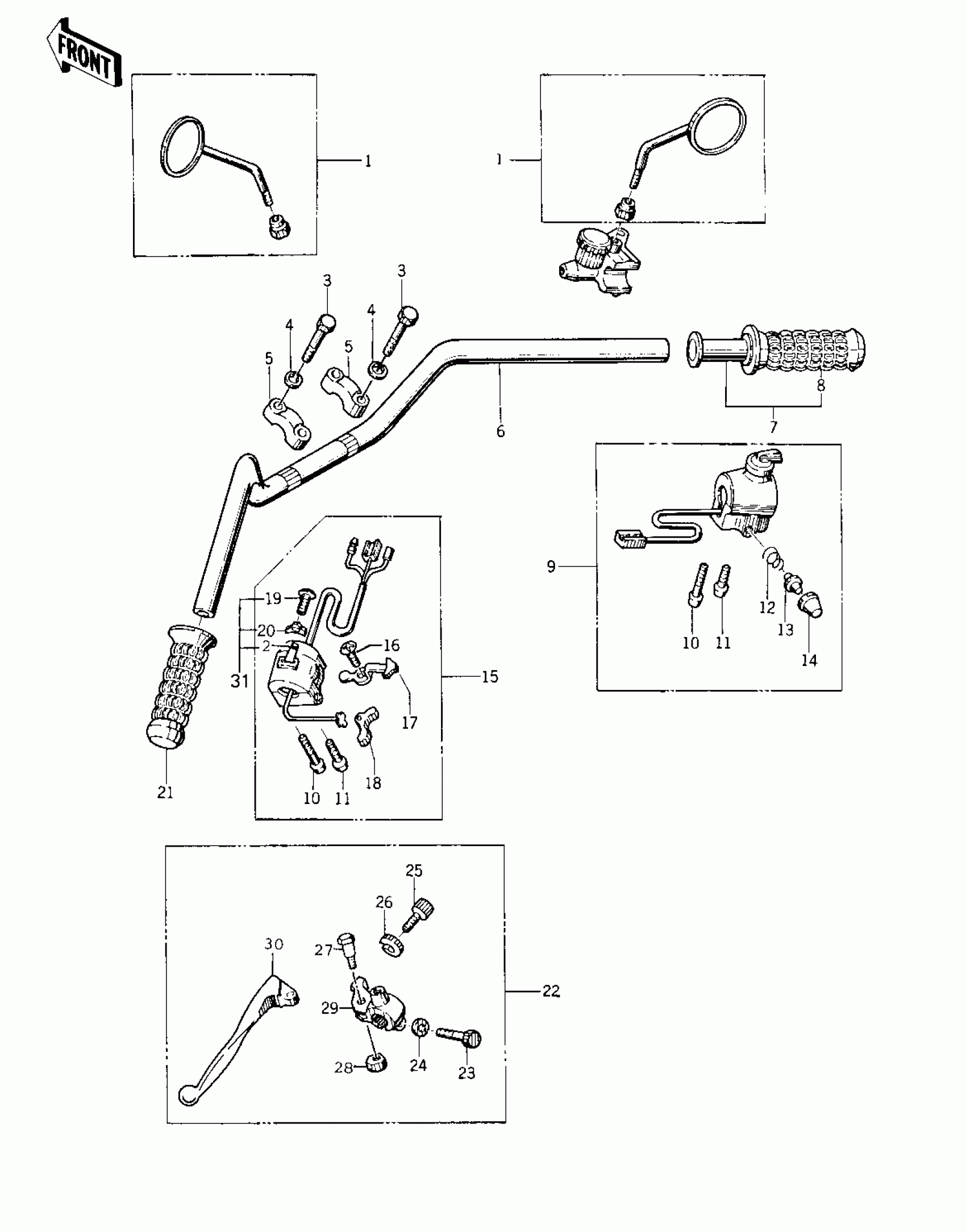

Kawasaki KZ400-A2 HANDLEBAR Diagram
#
1
MIRROR-ASSY,LH&RH
56001-5008
Unavailable
2
SWITCH,L.H
46089-014
Unavailable
3
BOLT 8X38
92001-1405
Unavailable
3
BOLT 8X38
92001-1405
Unavailable
4
WASHER SPRING 8MM
461F0800
Unavailable
5
HOLDER-HANDLE,UPP
46012-008
Unavailable
6
HANDLEBAR
46003-034
Unavailable
7
GRIP ASSY,THROTTLE
46019-038
Unavailable
8
RUBBER,R.H GRIP
46061-018
Unavailable
9
HOUSING ASSY,R.H
46091-1039
Unavailable
9
HOUSING ASSY,R.H
46091-1039
Unavailable
10
SCREW-PAN-CROS
220B0535
Unavailable
11
SCREW PAN HEAD 5X30
220B0530
Unavailable
12
SWITCH,PUSH BUTTON
27010-1009
Unavailable
13
SWITCH,PUSH BUTTON
27010-1009
Unavailable
13
SWITCH,PUSH BUTTON
27010-1009
Unavailable
14
SWITCH,PUSH BUTTON
27010-1009
Unavailable
15
HOUSING ASSY,CONT,L.H
46091-1079
Unavailable
15
HOUSING ASSY,CONT,L.H
46091-1079
Unavailable
16
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
17
KNOB,LIGHTING SW L.H
46043-005
Unavailable
18
BUTTON, HORN PUSH
46028-006
Unavailable
19
SCREW PAN HEAD 3X5
220B0305A
Unavailable
20
KNOB,LIGHTING SW L.H
46044-013
Unavailable
21
RUBBER,L.H GRIP
46075-028
Unavailable
22
LEVER ASSY,CLUTCH
46076-052
Unavailable
23
BOLT 6X22
112B0622
Unavailable
24
WASHER PLAIN 6MM
411B0600
Unavailable
25
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
25
SCREW,CABLE ADJUSTER
92009-1022
Unavailable
26
NUT,CABLE ADUST NUT
46056-007
Unavailable
27
BOLT,HEX HEAD
92007-047
Unavailable
28
NUT,LOCK,6MM
92019-008
Unavailable
28
NUT,LOCK 6MM
92017-014
Unavailable
29
HOLDER,CLUTCH LEVER
46094-017
Unavailable
30
LEVER-GRIP,CLUTCH
46092-023
Unavailable
31
L.H GRIP SWITCH KIT
99990-530
Unavailable
