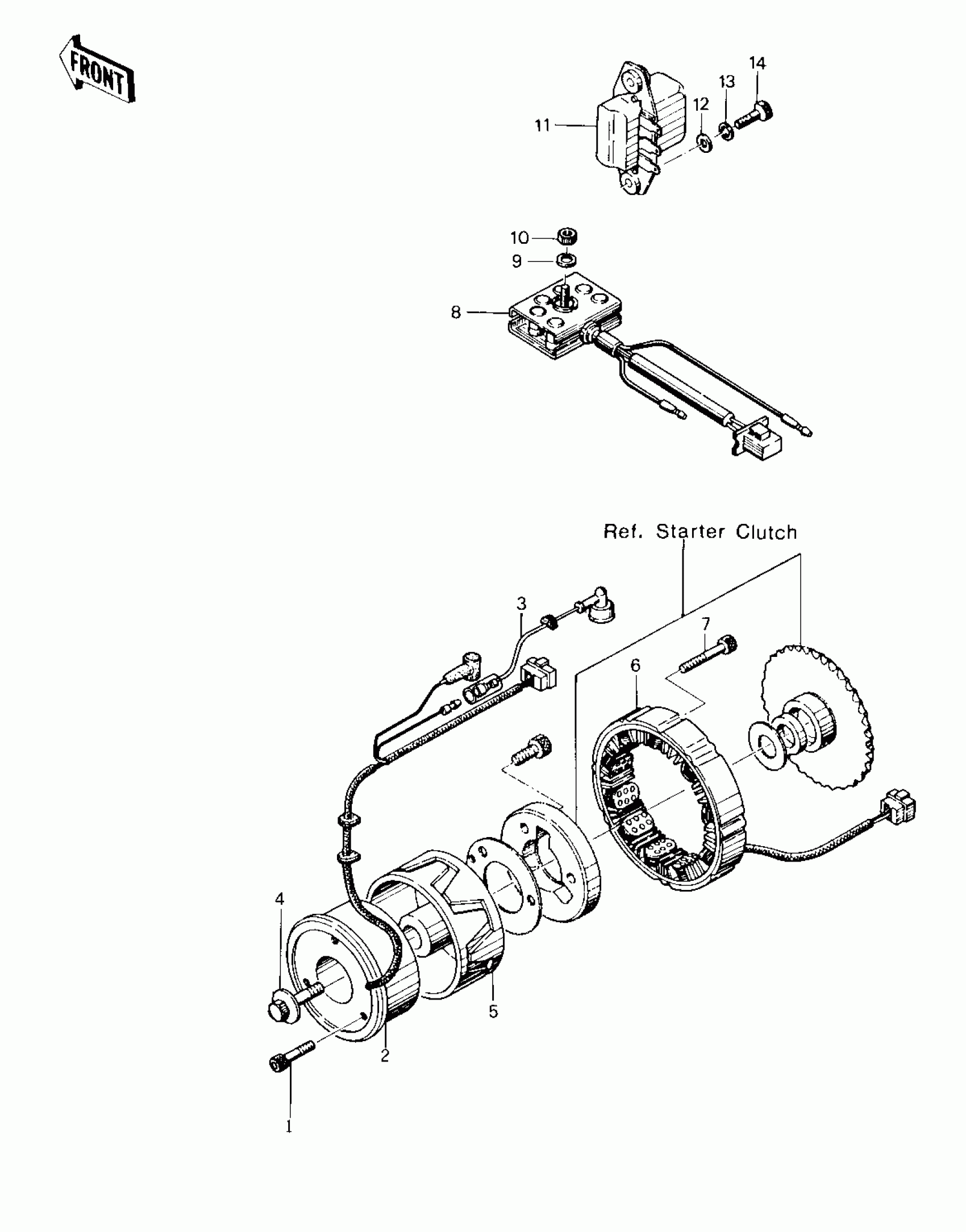

Kawasaki KZ400-A2 GENERATOR/REGULATOR Diagram

#

Description

Price

1

BOLT-SOCKET,6X18

120P0618

Unavailable

2

COIL,FIELD

21077-004

Unavailable

3

WIRE DYNAMO LEAD

26011-087

Unavailable

4

BOLT,10X40

92002-1303

Unavailable

5

ROTOR

21007-030

Unavailable

6

STATOR ASSY

21076-021

Unavailable

7

BOLT,ALLEN,6X32

120Q0632

Unavailable

8

RECTIFIER

21061-030

Unavailable

8

RECTIFIER

21061-030

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

NUT 6MM

311B0600

Unavailable

11

UNAVAILABLE IN PRICE BOOK

21066-018

Unavailable

12

WASHER,6.5X20X1.6

92022-125

Unavailable

13

WASHER SPRING 6MM

461F0600

Unavailable

14

BOLT-UPSET,6X20

112G0620

Unavailable
