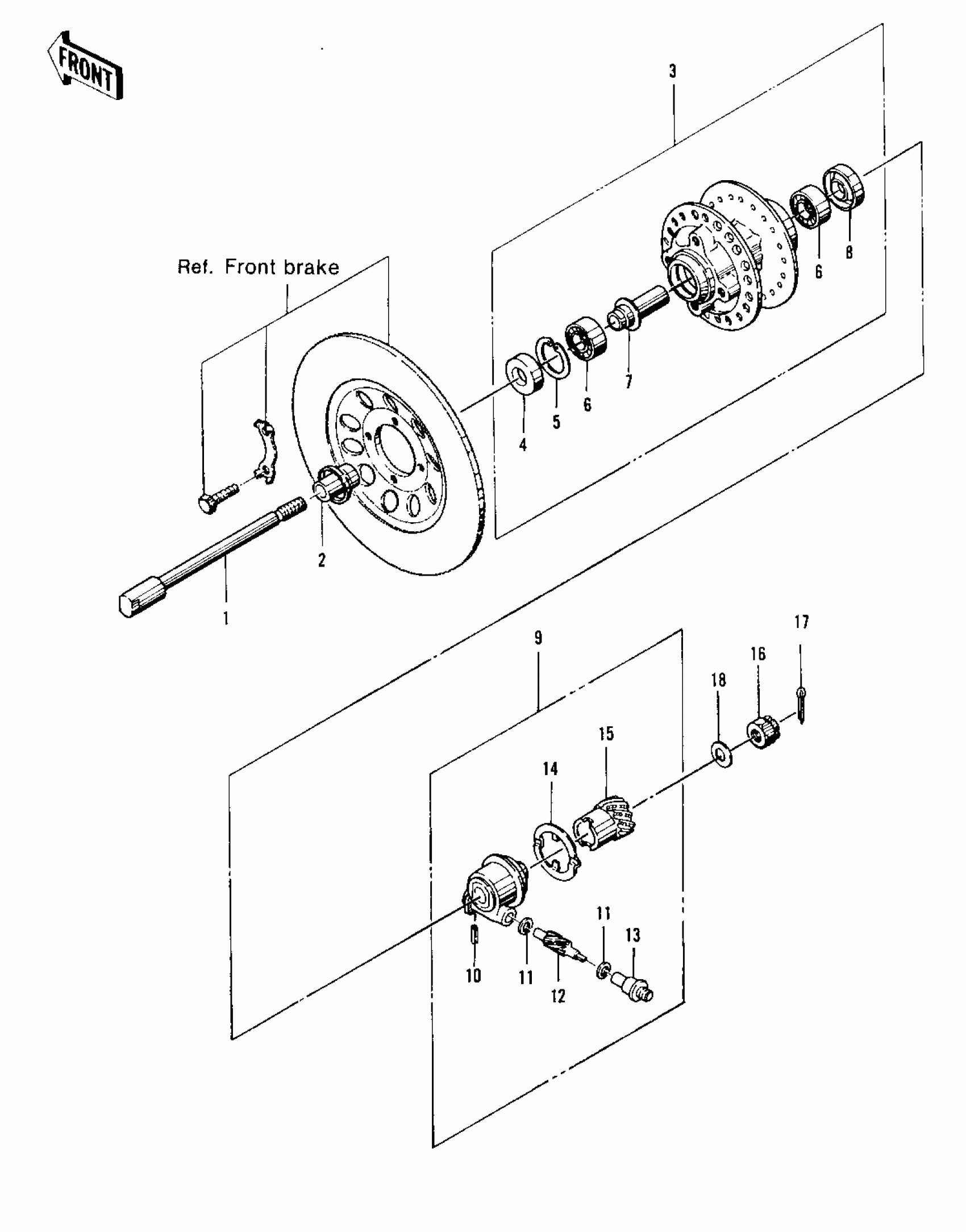

Kawasaki KZ400-A2 FRONT HUB Diagram

#

Description

Price

1

AXLE,FRONT

41068-045

Unavailable

2

COLLAR,FRONT AXLE

41069-028

Unavailable

3

DRUM-ASSY,FR BRK,BUFF

41034-038-80

Unavailable

4

OIL SEAL,WTC22427

92052-011

Unavailable

5

RING-SNAP,42MM

92033-1041

Unavailable

5

RING-SNAP,42MM

92033-1041

Unavailable

6

BEARING-BALL,#6302C3

601B6302

Unavailable

7

COLLAR,FR HUB BEARING

41039-026

Unavailable

8

OIL SEAL,WTC40528

92052-012

Unavailable

9

GEAR BOX ASSY

41078-006

Unavailable

10

PIN,SPRING

41082-001

Unavailable

11

WASHER,5.1X9X0.4

41063-001

Unavailable

12

PINION,SPEEDOMETER

41060-016

Unavailable

13

BUSHING,SPEEDOMETER CABLE

41062-005

Unavailable

14

DRIVE,SPEED,GEAR

41064-012

Unavailable

15

GEAR,SPEEDOMETER

41059-025

Unavailable

16

NUT,CASTLE,14MM

42045-020

Unavailable

17

PIN-COTTER,3.0X25

550D3025

Unavailable

18

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable
