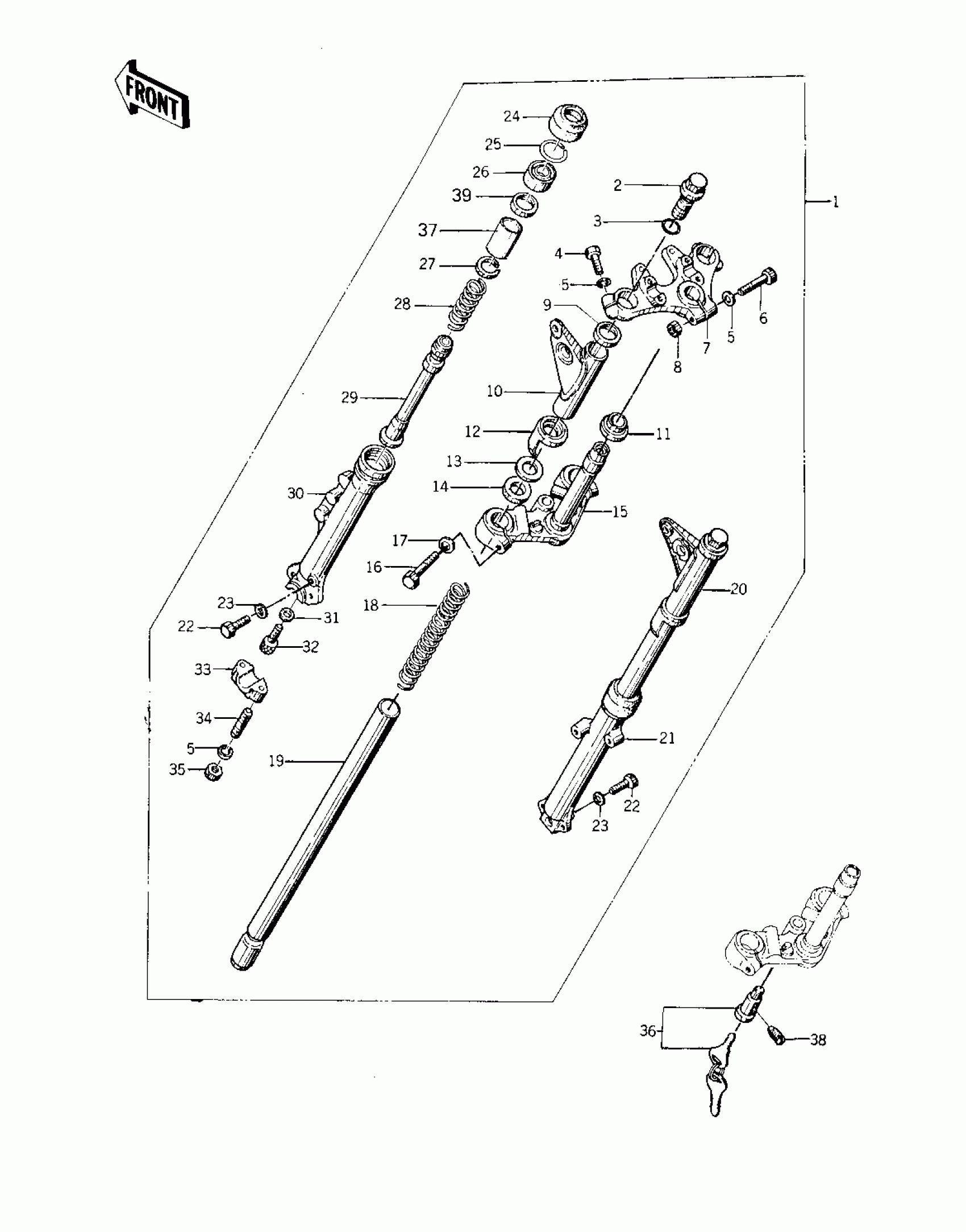

Kawasaki KZ400-A2 FRONT FORK Diagram
#
1
FORK-FRONT
44001-201
Unavailable
2
BOLT, FORK TOP
44032-012
Unavailable
3
"O" RING,FORK TOP BLT
44046-023
Unavailable
4
BOLT,8X40
92001-1063
Unavailable
5
WASHER SPRING 8MM
461F0800
Unavailable
6
BOLT-HEX HEAD,8X55
44041-038
Unavailable
7
HEAD, STEERING STEM
44039-064
Unavailable
8
NUT,LOCK,8MM
92015-1124
Unavailable
9
CAP,FORK COVER
44064-026
Unavailable
10
COVER,L.H FORK
44033-080
Unavailable
11
RACE,STEERING STEM BEARING
92047-006
Unavailable
12
CAP, FORK COVER
44064-021
Unavailable
13
WASHER,FORK COVER
92022-297
Unavailable
14
DAMPER RUBBER,FK COV
92075-240
Unavailable
15
STEM, STEERING
44037-077
Unavailable
16
BOLT,10X50
92001-1007
Unavailable
17
WASHER SPRING 10MM
461F1000
Unavailable
18
SPRING, FORK
44026-061
Unavailable
19
TUBE,FORK INNER
44013-1001
Unavailable
20
COVER,R.H FORK
44034-080
Unavailable
21
TUBE,RH,FORK OUTER
44006-1002
Unavailable
22
BOLT HEX HEAD 6X8
110B0608
Unavailable
23
GASKET,DRAIN PLUG
44045-047
Unavailable
24
SEAL,FORK
92093-1063
Unavailable
25
RING,OIL SEAL STOPPER
44043-057
Unavailable
26
SEAL-OIL,FORK
92049-1077
Unavailable
27
RING, PISTON
44025-003
Unavailable
28
SPRING,FORK SHORT
44026-1001
Unavailable
29
CYLINDER-FORK
44022-035
Unavailable
30
TUBE,LH,FORK OUTER
44005-1002
Unavailable
31
GASKET,FORK CYLINDER BOLT
44045-051
Unavailable
32
BOLT,FORK CYLINDER
44041-078
Unavailable
33
HOLDER, FRONT AXLE
44063-010
Unavailable
34
BOLT-STUD,8X30
172G0830
Unavailable
35
NUT,LOCK,8MM
92017-013
Unavailable
36
LOCK ASSY,STEERING
27016-043
Unavailable
37
BUSHING,FORK
44065-1001
Unavailable
38
SCREW,SEAT LOCK
92014-016
Unavailable
39
SPACER,FORK
92026-1005
Unavailable
