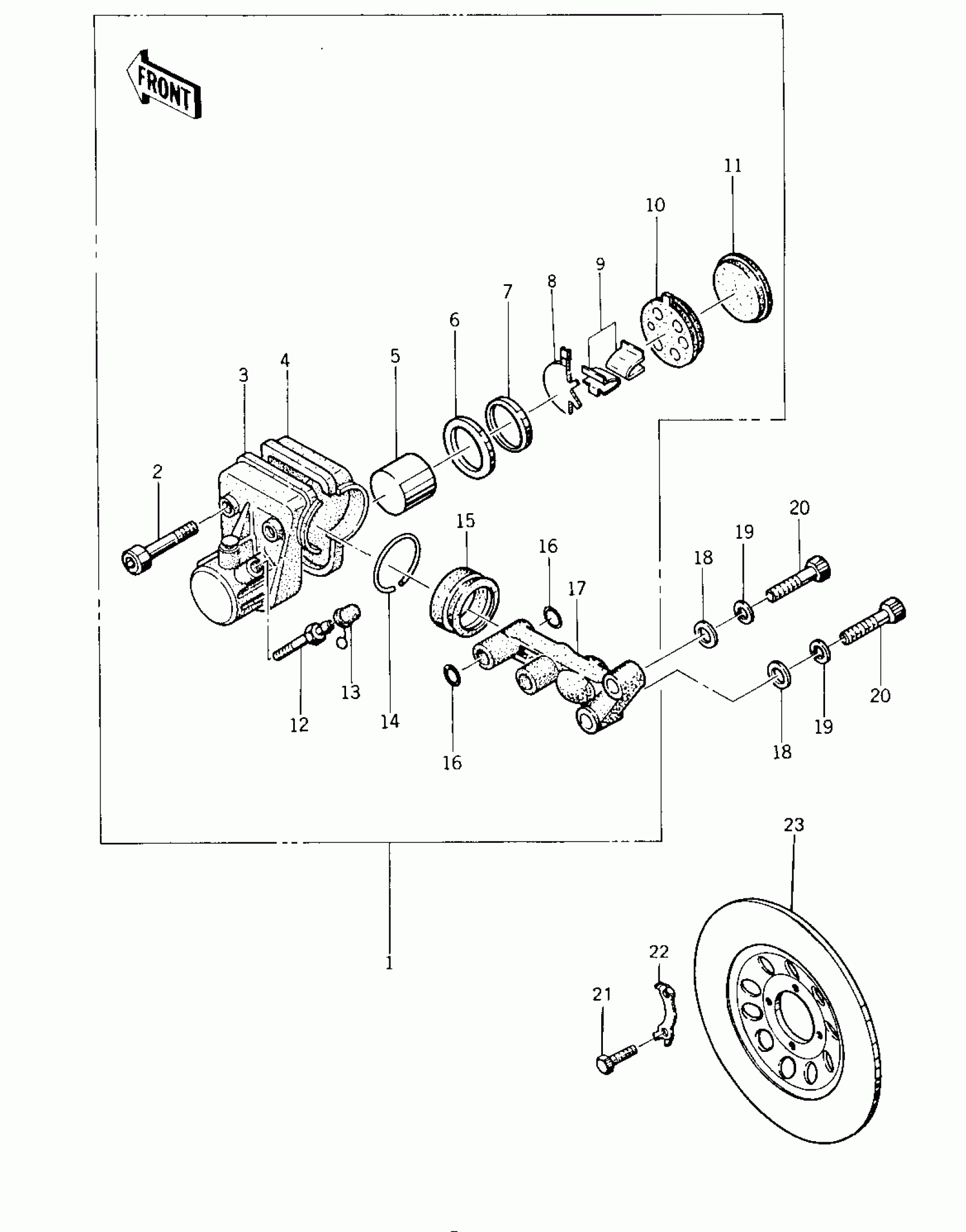

Kawasaki KZ400-A2 FRONT BRAKE Diagram

#

Description

Price

1

CALLIPER ASSY

43041-016

Unavailable

2

SHAFT

43045-005

Unavailable

3

CALLIPER,A

43042-007

Unavailable

4

CALLIPER,B

43043-005

Unavailable

5

PISTON,CALIPER

43048-005

Unavailable

6

RING,PISTON SEAL

43049-004

Unavailable

7

SEAL

43083-002

Unavailable

8

SHIM

43076-003

Unavailable

9

CLIP,PAD

43084-002

Unavailable

10

PAD A

43050-004

Unavailable

11

PAD B

43051-003

Unavailable

12

CAP,BREEDER

43057-004

Unavailable

13

BREEDER

43056-004

Unavailable

14

RING,DUST SEAL

43058-003

Unavailable

15

DUST SEAL

43052-004

Unavailable

16

"O" RING

43053-004

Unavailable

17

HOLDER,CALLIPER

43044-010

Unavailable

18

WASHER PLAIN 10MM

410B1000

Unavailable

19

WASHER SPRING 10MM

461F1000

Unavailable

20

BOLT,HEX HEAD,10X57

92007-044

Unavailable

21

BOLT, HEX HEAD, 8X25

92001-141

Unavailable

22

WASHER-LOCK

92088-016

Unavailable

23

DISC PLATE,FRONT BRK

41080-004

Unavailable
