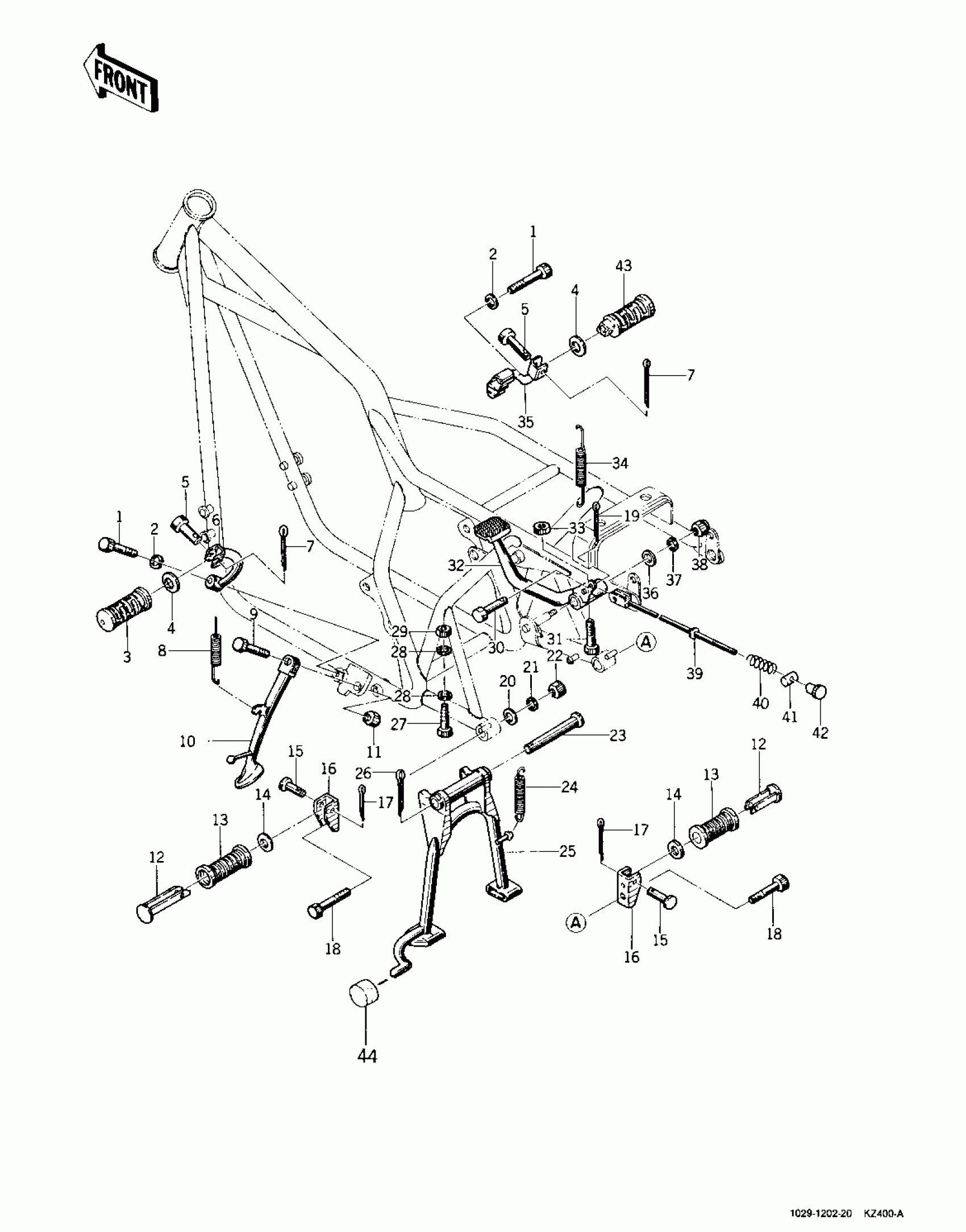

Kawasaki KZ400-A2 FOOTRESTS/STANDS/BRAKE PEDAL Diagram
#
1
BOLT-HEX HEAD,12X36
113B1236A
Unavailable
2
WASHER-SPRING,12MM
461F1200
Unavailable
3
BAR-FOOTREST,L.H
34028-011
Unavailable
4
WASHER,25X36X2.3
92022-250
Unavailable
5
PIN,8X31
92043-080
Unavailable
6
BRACKET,FOOTREST,L.H
34003-053
Unavailable
7
PIN COTTER 2.5X16
550D2516
Unavailable
8
SPRING,SIDE STAND
34025-007
Unavailable
9
BOLT,SIDE STAND
92003-157
Unavailable
10
STAND-SIDE
34024-048
Unavailable
11
NUT-HEX-FINE,10MM
315B1000
Unavailable
12
STEP,RR
34028-009
Unavailable
13
RUBBER,REAR FOOTREST
92076-024
Unavailable
14
WASHER-PLAIN (OPT)
92022-199
Unavailable
15
PIN,6X28
92043-1464
Unavailable
16
BRACKET,STEP
32054-1021
Unavailable
17
PIN-COTTER,2.0X12
550D2012
Unavailable
18
BOLT,HEX HEAD,10X56
113B1056
Unavailable
19
PIN COTTER 2.5X16
550D2516
Unavailable
20
WASHER PLAIN 10MM
410B1000
Unavailable
21
WASHER SPRING 10MM
461F1000
Unavailable
22
NUT-HEX-FINE,10MM
314B1000
Unavailable
23
SHAFT-STAND,CNT
34019-015
Unavailable
24
SPRING,STAND,CNT
34023-016
Unavailable
25
STAND-MAIN
34011-053
Unavailable
25
STAND-MAIN
34011-053
Unavailable
26
PIN-COTTER,3.0X30
550D3030
Unavailable
27
BOLT 6X35
110R0635
Unavailable
28
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
29
NUT,LOCK,6MM
92019-008
Unavailable
30
PIN,BRAKE ROD FITTING
92043-090
Unavailable
31
BOLT-UPSET
112G0625
Unavailable
32
PEDAL,BRAKE
43001-064
Unavailable
33
NUT 6MM
311B0600
Unavailable
34
SPRING,BRAKE PEDAL
43005-029
Unavailable
35
BRACKET,FOOTREST,R.H
34003-054
Unavailable
36
WASHER,8.5X20X1.6
92022-1561
Unavailable
37
WASHER SPRING 8MM
461F0800
Unavailable
38
NUT,CAP AND LOCK,8MM
92019-013
Unavailable
39
ROD,BRAKE
43011-026
Unavailable
40
SPRING,BRAKE ROD
43012-001
Unavailable
41
PIN,BRAKE ROD
92043-065
Unavailable
42
NUT,BRAKE ROD
92015-042
Unavailable
44
DAMPER RUBB-MAIN STND
92075-115
Unavailable
