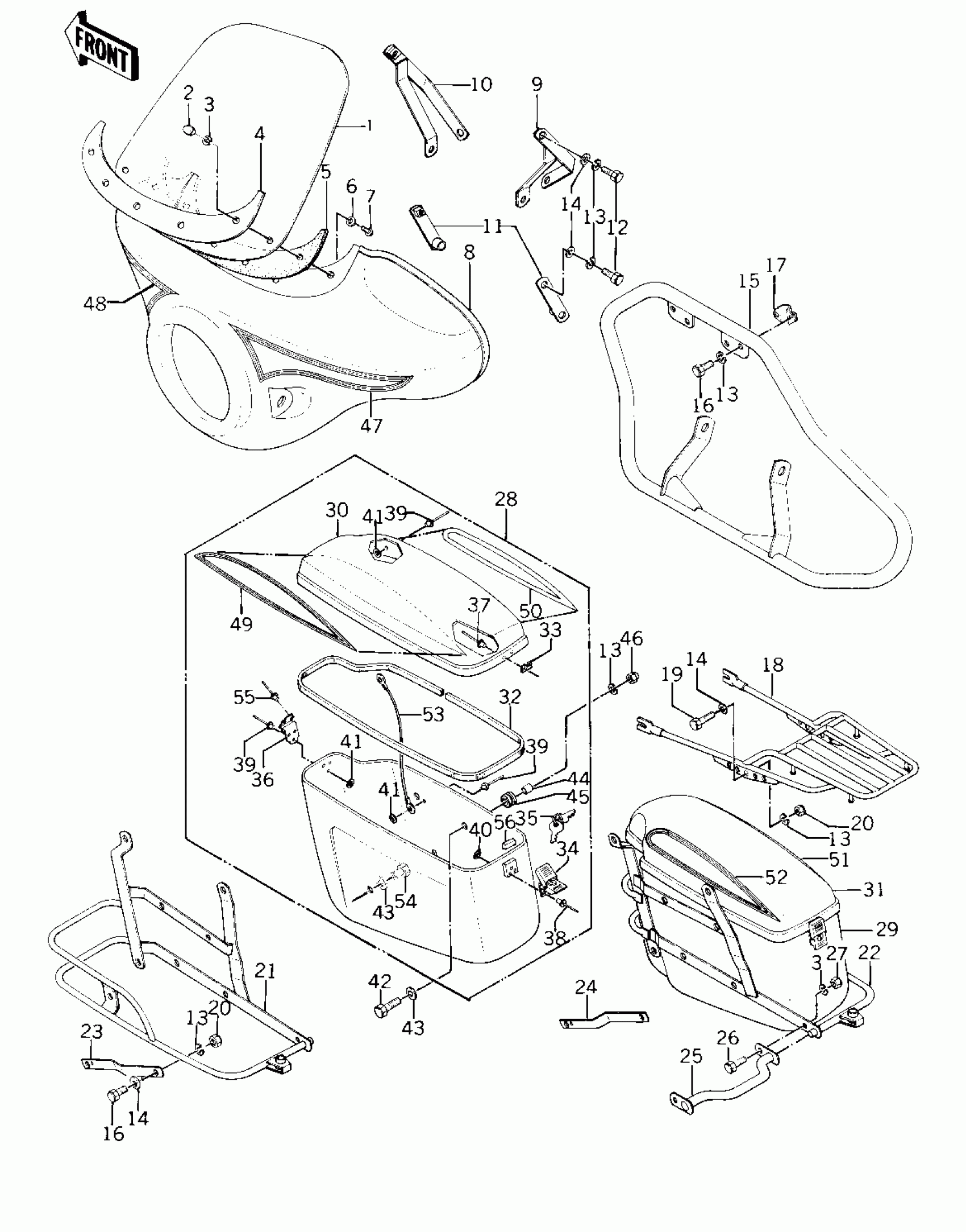

Kawasaki KZ400-A2 FAIRING/GUARDS/SADDLEBAGS Diagram
#
1
WINDSHIELD
55043-001
Unavailable
2
NUT,6MM
92015-009
Unavailable
3
WASHER SPRING 6MM
461F0600
Unavailable
4
PLATE,WINDSHIELD
55045-001
Unavailable
5
SEAL,WINDSHIELD
55044-001
Unavailable
6
WASHER PLAIN 6MM
411B0600
Unavailable
7
SCREW PAN HEAD 6X18
220B0618
Unavailable
8
WINDSHIELD BODY
55042-001-8D
Unavailable
9
BRACKET,UPPER LH
55046-004
Unavailable
10
BRACKET,UPPER RH
55046-005
Unavailable
11
BRACKET,LOWER
55046-006
Unavailable
12
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
13
WASHER SPRING 8MM
461F0800
Unavailable
14
WASHER PLAIN 8MM
411B0800
Unavailable
15
GUARD
55024-006
Unavailable
16
BOLT,8X20
115G0820
Unavailable
17
BRACKET,GUARD
55025-018
Unavailable
18
CARRIER
53029-059
Unavailable
19
BOLT HEX HEAD 8X35
110N0835
Unavailable
20
NUT,8MM
311B0800
Unavailable
21
BRACKET,SADDLEBAG LH
58052-003
Unavailable
22
BRACKET,SADDLEBAG R.H
58052-004
Unavailable
23
BRACKET,SDBAG L.LOWER
58052-005
Unavailable
24
BRACKET,SDBAG R.LOWER
58052-006
Unavailable
25
BRACKET,SDBAG REAR
58052-007
Unavailable
26
BOLT-UPSET 6X14
112B0614
Unavailable
27
NUT 6MM
311B0600
Unavailable
28
SADDLEBAG LEFT
58051-005-8D
Unavailable
29
SADDLEBAG,RIGHT
58051-006-8D
Unavailable
30
LID,SADDLEBAG LH
14025-1009-8D
Unavailable
31
LID,SADDLEBAG RH
14025-1010-8D
Unavailable
32
TRIM SEAL SADDLEBAG
39145-4001
Unavailable
33
LATCH,SADDLBAG LID
49031-1003
Unavailable
34
LOCK,SADDLEBAG
49031-1002
Unavailable
35
KEY SET-TWO KEYS
27008-1001
Unavailable
36
HINGE,SADDLEBAG
53009-1003
Unavailable
37
RIVET,SDBAG LID LATCH
92039-1003
Unavailable
38
RIVET,SADDLEBAG LOCK
92039-1002
Unavailable
39
RIVET,SADDLBAG HINGE
92039-1004
Unavailable
40
WASHER,RIVET
92022-1015
Unavailable
41
WASHER,RIVET
92022-1016
Unavailable
42
BOLT-SMALL-UPSET 8X25
115G0825
Unavailable
43
WASHER,8.5X20X1.6
92022-1561
Unavailable
44
COLLAR
92027-280
Unavailable
45
DAMPER
92075-303
Unavailable
46
NUT FUEL TANK FRONT
92020-007
Unavailable
47
DECAL,WINDSHIELD LH
56029-028
Unavailable
48
DECAL,WINDSHIELD RH
56029-029
Unavailable
49
DECAL,LH SDBAG OUTER
56029-024
Unavailable
50
DECAL,LH SDBAG INNER
56029-025
Unavailable
51
DECAL,RH SDBAG OUTER
56029-026
Unavailable
52
DECAL,RH SDBAG INNER
56029-027
Unavailable
53
LANYARD,SADDLEBAG
39073-4001
Unavailable
54
BOLT-SMALL-UPSET,8X22
115B0822
Unavailable
55
RIVET SDBAG HINGE-LID
92039-4001
Unavailable
56
DAMPER,SADDLEBAG LID
92075-4001
Unavailable
