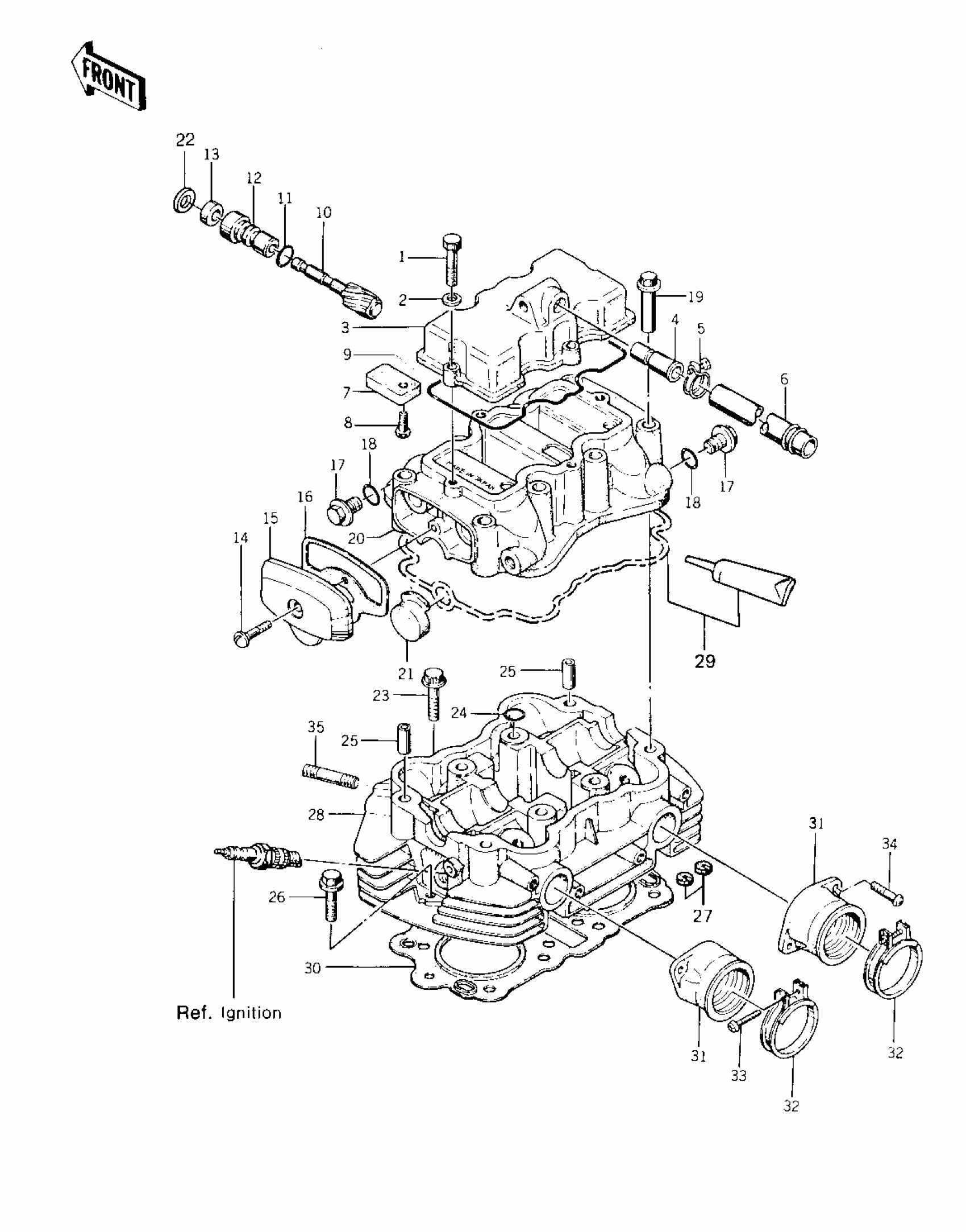

Kawasaki KZ400-A2 CYLINDER HEAD/COVERS Diagram
#
1
BOLT HEX HEAD 8X28
114G0828
Unavailable
2
WASHER PLAIN 8MM
410B0800
Unavailable
3
COVER,BREATHER
14070-005
Unavailable
4
FITTING,BREATHER
14067-006
Unavailable
4
FITTING,BREATHER
14067-006
Unavailable
5
CLAMP,BREATHER HOSE
92037-123
Unavailable
5
CLAMP,BREATHER TUBE
92037-192
Unavailable
6
HOSE,BREATHER
92059-125
Unavailable
7
PLATE,BREATHER
14068-006
Unavailable
8
SCREW PAN HEAD 6X12
220B0612
Unavailable
9
"O" RING,BRETHER COV
92055-064
Unavailable
10
GEAR,TACHOMETER
13223-009
Unavailable
11
RING-O,10MM
92055-1149
Unavailable
12
GUIDE,TACHOMETER GEAR
92087-011
Unavailable
13
SEAL-OIL
92050-075
Unavailable
14
SCREW OVL CNTSK 6X25
222E0625
Unavailable
15
CAP,CYL HEAD COVER
11027-003
Unavailable
16
GASKET,CYL HEAD COVER
11023-007
Unavailable
17
PLUG,18X9
92066-066
Unavailable
18
RING-O,20X2
92055-1146
Unavailable
19
NUT,CYLINDER HEAD
92015-071
Unavailable
20
COVER,CYLINDER HEAD
11022-013-2H
Unavailable
20
COVER,CYLINDER HEAD
11022-013-2H
Unavailable
21
CAP,CLY HEAD COVER
92073-035
Unavailable
22
GASKET,TACHO GEAR
92065-104
Unavailable
23
BOLT, HEX HEAD, 6X34
92003-159
Unavailable
24
"O" RING,HD COV BOLT
92055-067
Unavailable
25
PIN,DOWEL,12X14
92042-031
Unavailable
26
BOLT, HEX HEAD, 8X34
92003-153
Unavailable
27
DAMPER RUBBER,CYL HD
92075-255
Unavailable
28
CYLINDER HEAD,BARREL
11002-018-2H
Unavailable
29
CLEAR SILICONE
K61079-007
Unavailable
30
GASKET,CYLINDER HEAD
11004-1003
Unavailable
31
DUCT,ENGINE INTAKE
16065-037
Unavailable
31
DUCT,ENGINE INTAKE
16065-048
Unavailable
32
CLAMP,57MM,BLACK
92037-1452
Unavailable
32
CLAMP,CARBURETOR
92037-1021
Unavailable
33
SCREW-PAN-CROS
220B0535
Unavailable
33
SCREW-PAN-CROS,5X25
220B0525
Unavailable
34
SCREW PAN HEAD 6X18
220B0618
Unavailable
35
STUD,6X46
92004-049
Unavailable
