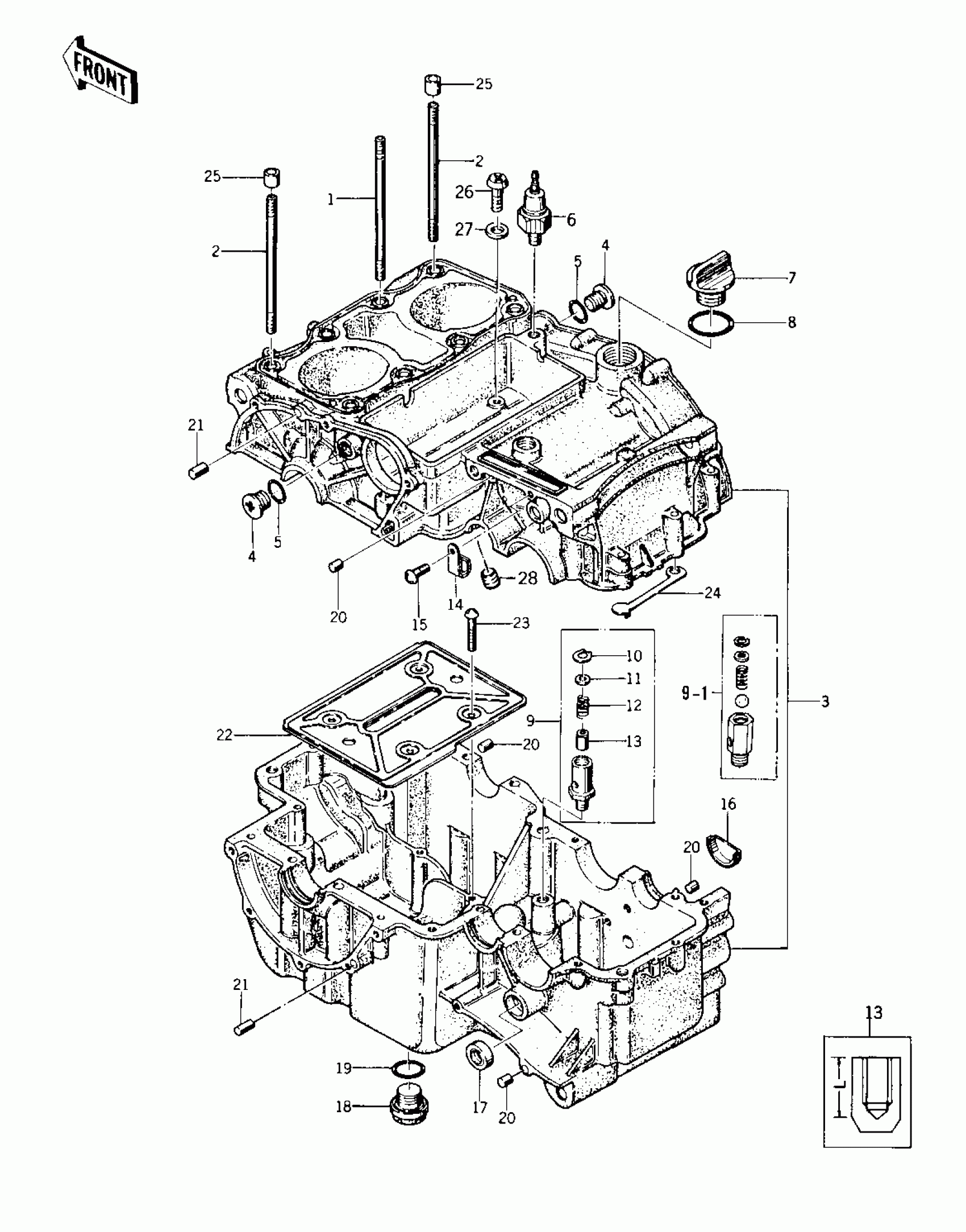

Kawasaki KZ400-A2 CRANKCASE Diagram
#
Description
Price
1
.STUD,8X201
92004-052
Unavailable
2
.STUD,8X210
92004-053
Unavailable
3
CRANKCASE SET
14001-102
Unavailable
3
CRANKCASE SET
14001-102
Unavailable
4
.PLUG
92066-067
Unavailable
4
.PLUG
92066-067
Unavailable
5
RING-O,13.5MM
92055-073
Unavailable
6
SWITCH,OIL PRESSURE
27010-1157
Unavailable
7
CAP-OIL FILLER
16115-013
Unavailable
8
RING-O,31.5X2.6
92055-049
Unavailable
9
VALVE-ASSY-RELIEF
16130-1001
Unavailable
9-1
VALVE-ASSY-RELIEF
16130-1001
Unavailable
10
CIRCLIP, 12MM
481J1200
Unavailable
11
SPACER,RELEAF VALVE
92026-097
Unavailable
12
SPRING,RELEAF VALVE
16133-003
Unavailable
13
PISTON,RELEAF VALVE
16126-002
Unavailable
14
CLAMP,WIRING HARNESS
21126-008
Unavailable
14
CLAMP,WIRING HARNESS
21126-008
Unavailable
15
SCREW PAN HEAD 6X12
220B0612
Unavailable
16
RECEIVER,OIL
14015-005
Unavailable
17
SEAL-OIL,TB13225.5
92051-005
Unavailable
18
PLUG,OIL DRAIN,12X15
92066-1174
Unavailable
19
GASKET,12X22X2
92065-097
Unavailable
20
PIN,DOWEL,6.3X8X14
92042-007
Unavailable
21
PIN-DOWEL,6X12
551A0612
Unavailable
22
PLATE
14082-001
Unavailable
23
SCREW PAN HEAD 6X12
220B0612
Unavailable
24
CLAMP,OVERFLOW HOSE
92037-149
Unavailable
25
PIN,DOWEL,10X14
92043-1037
Unavailable
26
SCREW PAN HEAD 6X12
220B0612
Unavailable
27
WASHER,6.2X11X1
92022-304
Unavailable
28
NOZZLE,BLACK
92062-011
Unavailable
