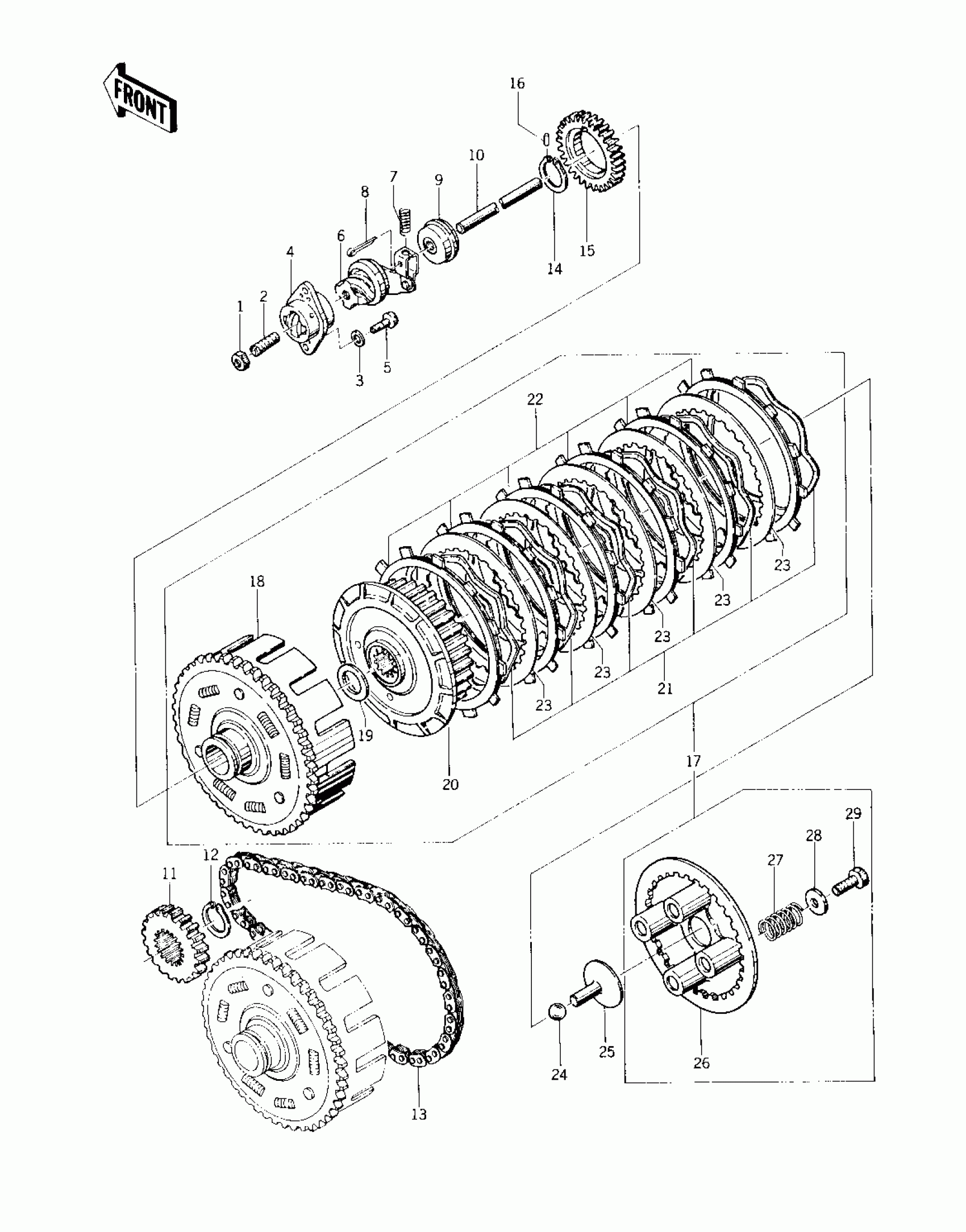

Kawasaki KZ400-A2 CLUTCH Diagram
#
Description
Price
1
NUT-HEX-SMALL,8MM
318B0800
Unavailable
2
SCREW,SLOTTED,8X25
92014-014
Unavailable
3
WASHER PLAIN 6MM
411B0600
Unavailable
4
OUTER,CLUTCH RELEASE
13118-007
Unavailable
5
SCREW-PAN-CROS,6X16
220B0616
Unavailable
6
INNER,CLUTCH RELEASE
13102-013
Unavailable
7
SPRING,CLUTCH RELEASE
92081-069
Unavailable
8
PIN-COTTER,1.6X15
550D1615
Unavailable
9
OIL SEAL,PUSH ROD
92050-068
Unavailable
9
OIL SEAL,PUSH ROD
92049-1041
Unavailable
10
ROD,PUSH,CLUTCH
13116-1017
Unavailable
10
ROD,PUSH,CLUTCH
13116-1017
Unavailable
11
SPROCKET,PRIMARY
13121-030
Unavailable
12
CIRCLIP-TYPE-C,30MM
480J3000
Unavailable
13
CHAIN,PRIMARY DRIVE
13122-005
Unavailable
14
CIRCLIP, 38MM
480J3800
Unavailable
15
GEAR,OIL PUMP
16084-019
Unavailable
15
GEAR,OIL PUMP
16084-019
Unavailable
16
PIN, DOWELL, 6X6
610A0606
Unavailable
17
CLUTCH-ASSY
13081-074
Unavailable
18
HOUSING,CLUTCH
13095-045
Unavailable
19
WASHER,CLUTCH THRUST
92022-288
Unavailable
20
HUB,CLUTCH
13087-040
Unavailable
21
RING,CLUTCH STEEL
13229-005
Unavailable
22
PLATE,FRICTION
13088-1001
Unavailable
22
PLATE,FRICTION
13088-1001
Unavailable
23
PLATE-CLUTCH,T=2.0
13089-026
Unavailable
24
BALL-STEEL,3/8"
600A1200
Unavailable
25
PUSHER,CLTCH SPRG PLT
13116-029
Unavailable
26
PLATE,CLUTCH SPRING
13187-007
Unavailable
27
SPRING,CLUTCH
92081-1033
Unavailable
27
SPRING,CLUTCH
92081-1033
Unavailable
28
HOLDER,CLUTCH SPRING
13091-011
Unavailable
29
BOLT-UPSET
112G0618
Unavailable
